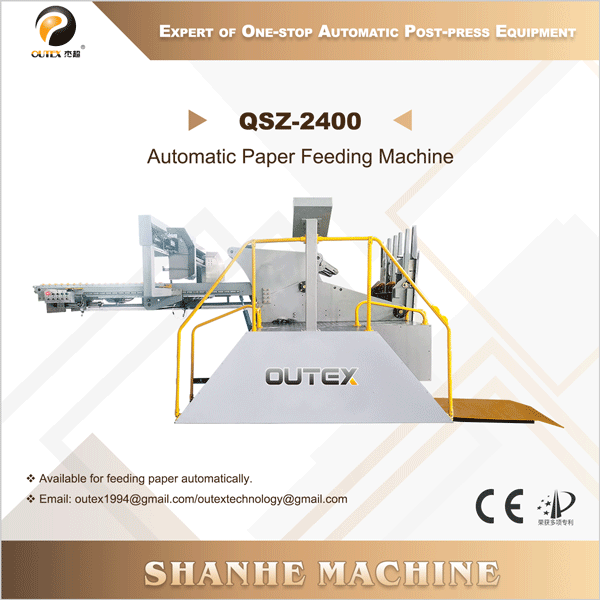

CE Certification QSZ-2400 Automatic Paper Feeding Machine Manufacturers, Product
Automatic paper feeding machine is a special equipment provided by SHANHE MACHINE for corrugated box manufacturers. It is widely adapted to a variety of printing machine, folder gluer, die-cutting machine and other equipment, which greatly improves production capacity without manual intervention and realizes automatic operation.
Hydraulic motor (independent hydraulic pump station to ensure smooth delivery)
Operational Features
Side and front gears, pneumatic alignment, digital adjustment of side gears.
Machine movement: The machine itself can move back and forth, and the machine automatically moves back when the printing press is split.
Maintain the height of the cardboard during the work, and the lifting fork automatically pushes the cardboard up and down with one key.
The conveyor belt can automatically start and stop according to the height of the paper feed bin of the printing press.
Key Advantages & Performance
Reduce Costs & Improve Efficiency
Unmanned operation reduces the number of workers, effectively lowering enterprise labor costs and reducing labor intensity. Effectively improves speed and work efficiency while minimizing manual contact to prevent cardboard damage.
Stable Performance
Utilizes 2 sets of mature hydraulic systems. High and low hydraulic cylinders power the tilt, rise, and conveying bed for durable output. Hydraulic motor transmission provides high torque, uniform transmission, and compact footprint.
Simple Operation & Convenience
Button and touch screen man-machine graphical interface paired with PLC control for easy identification and operation with real-time status display. Convenient paper feeding integrates seamlessly with user ground logistics.
System ATwo sets of efficient low-noise oil pressure systems deliver stable power output with low failure rate.
System BHydraulic cylinder and hydraulic motor driven machinery ensure stable, safe, smooth movement, and efficient operation.
System CFront and side patting mechanism makes cardboard arrangement significantly easier.
Frequently Asked Questions (FAQ)
What is the maximum paper size and load capacity of the QSZ-2400?
▼
The QSZ-2400 supports a maximum feeding paper size of 1200x2400mm, a stack height of up to 1800mm, and a maximum stack weight capacity of 1500kg in a single row configuration.
How does the machine adjust during the printing press operation?
▼
The machine itself can move back and forth automatically. When the printing press splits, the QSZ-2400 automatically moves back to allow seamless workflow integration.
What paper feeding modes does the QSZ-2400 support?
▼
It primarily adopts a translation type automatic paper feeding mode, but can also be configured for semi-automatic manual turning type paper feeding depending on operational needs.
How does the QSZ-2400 help cut enterprise operational costs?
▼
By enabling unmanned operation, the system significantly reduces the required workforce, lowers labor intensity, boosts processing speeds, and minimizes manual handling damage to cardboards.
What type of control interface does the machine use?
▼
It features a combined button and touch screen man-machine graphical interface powered by PLC control, providing real-time status displays and easy operation.
What powers the hydraulic drive system?
▼
It utilizes two efficient, low-noise hydraulic oil pressure systems with independent pump stations to ensure stable power output, uniform transmission, and high operational safety.
