CE Certification RTR-T1450/1650/1850/2050 High Speed Roll to Roll Thermal Laminator Factory, Product
RTR-T1450/1650/1850/2050 High Speed Roll to Roll Thermal Laminator is a new combination model specially developed by our company for the packaging industry. It’s available for laminating non-glue film and thermal film. It is widely used in books, periodicals, picture albums, manuals, wall charts, maps, packaging, etc.
It uses flexographic printing and offset printing drum materials to complete the entire set of process at one time, with exquisite film covering quality and high production speed. It effectively solves the multiple process waste, labor, site, logistics, and other process issues that plague the printing industry.
The internal electromagnetic roller heating system, uniform temperature.

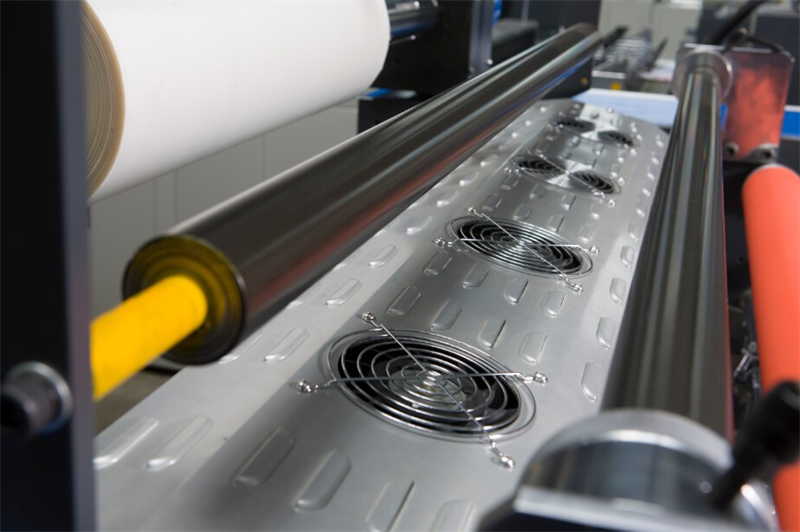

Femon grinding mirror φ420 roller to ensure the brightness of the laminating products.
The temperature setting range can be set, up to 120 degrees.
The adaptation of no glue film, pre-coating film.
SUS304 stainless steel shield

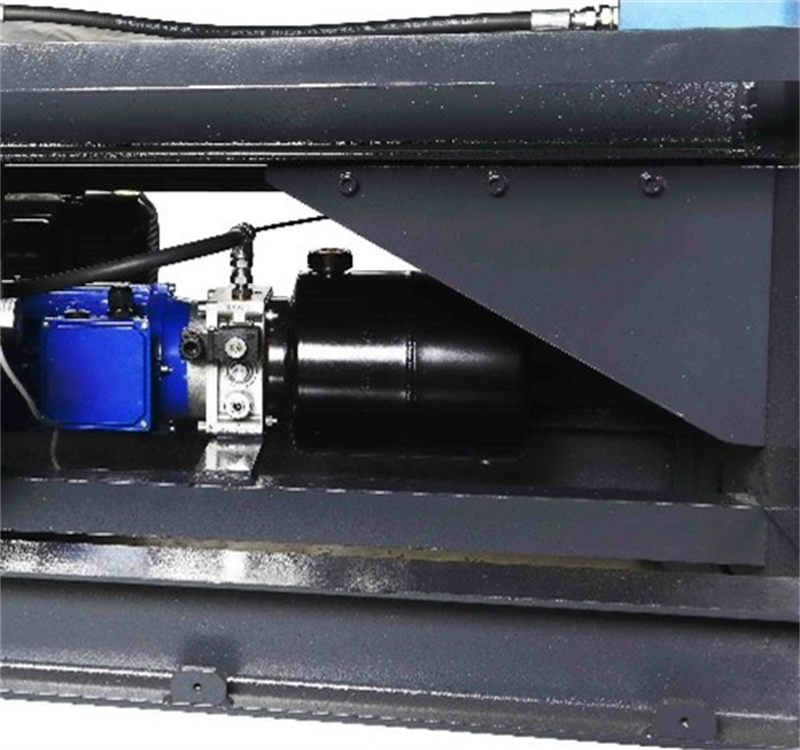

Oiltec Hydraulic systems (Oil pumps, cylinders) imported from Italy

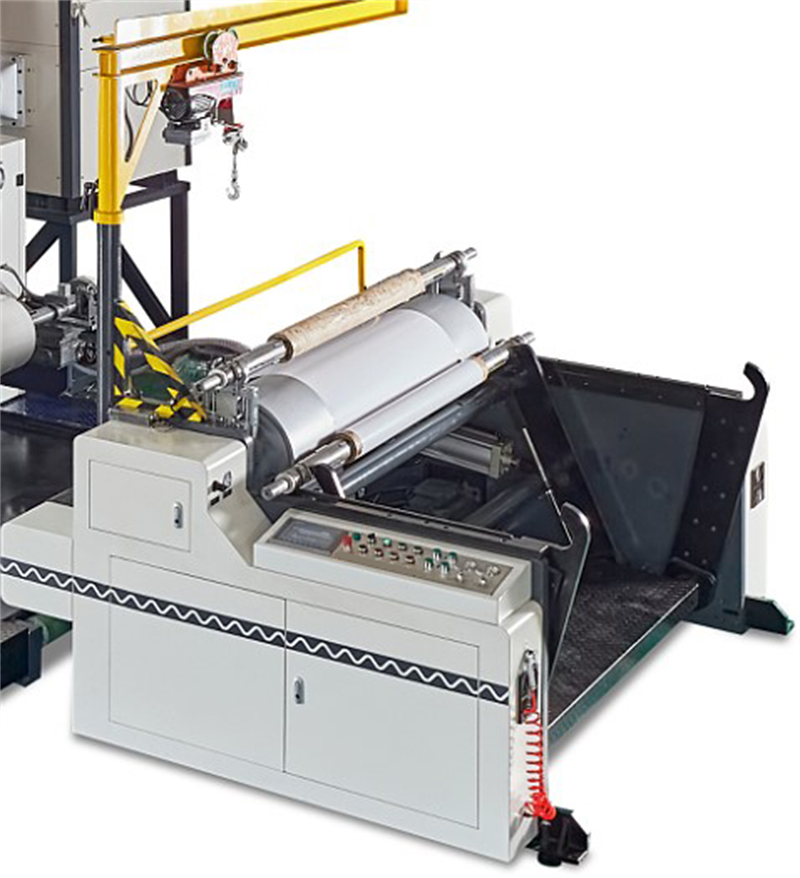

Tracking machine: oblique gear reducer.

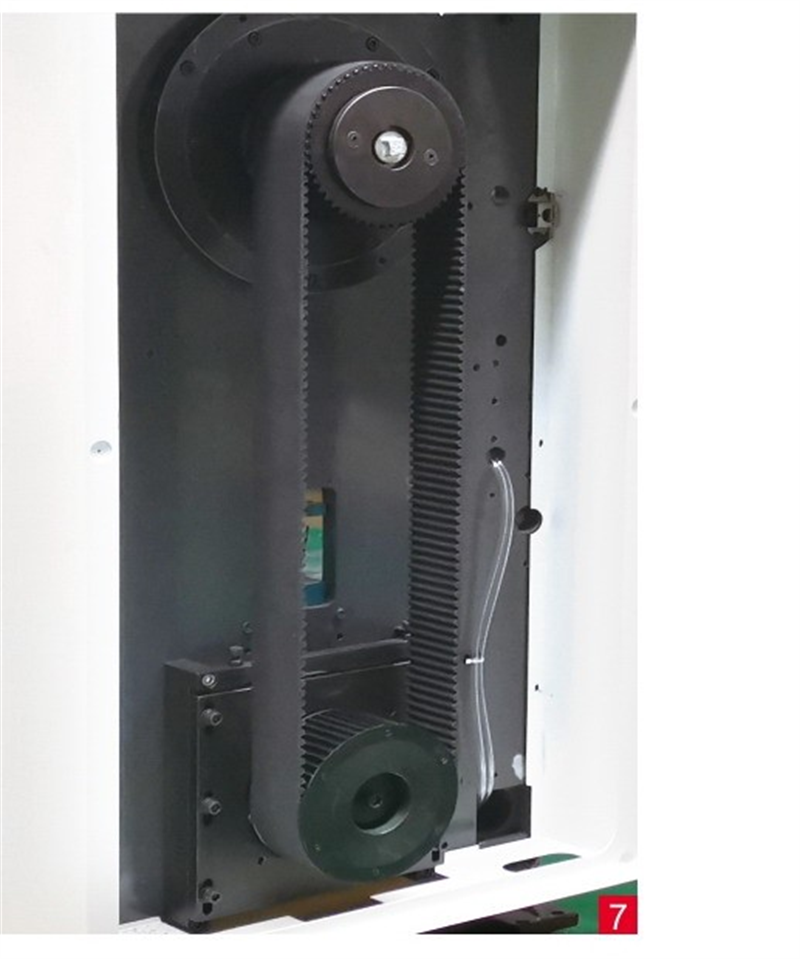

The host uses 100mm wide synchronization with transmission.
The main transmission gear box 7 grades to teeth.
AC vector variable frequency control, 7.5kw of frequency conversion motors.

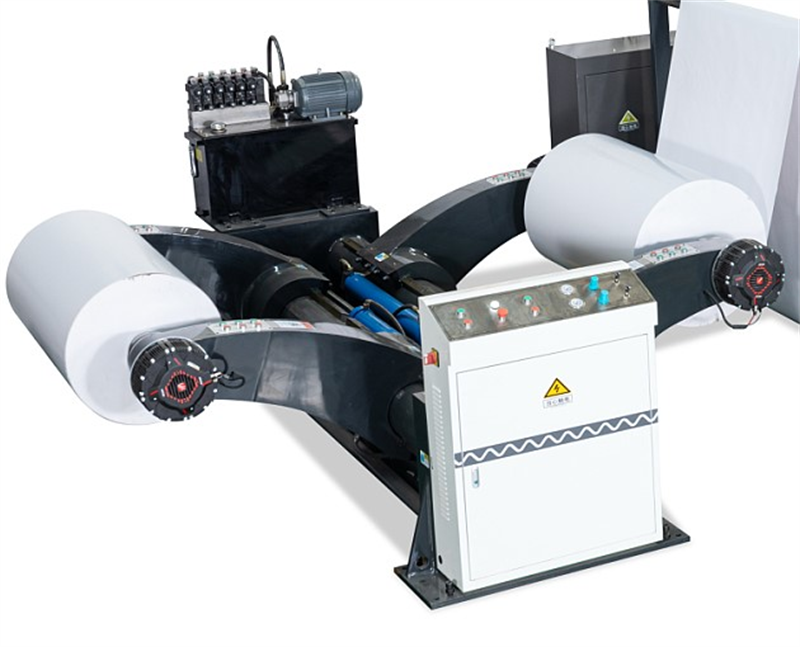

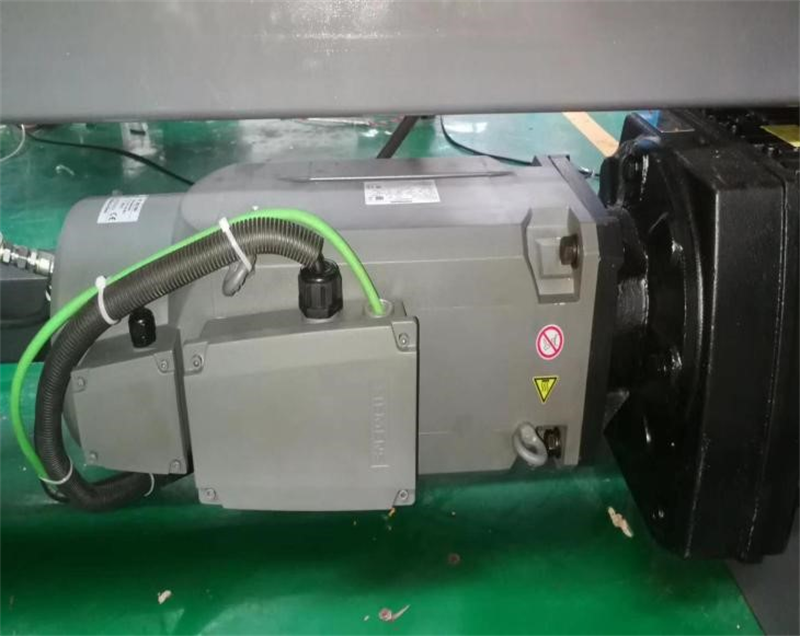

The paper roll lifting is driven by dual-oil cylinder, including a hydraulic system.
The paper core card buckle is installed with a set of switches, and logic control is performed through PLC to ensure the safety of operation.
An 3 "Blay axes, including transmission gears and punching guns.

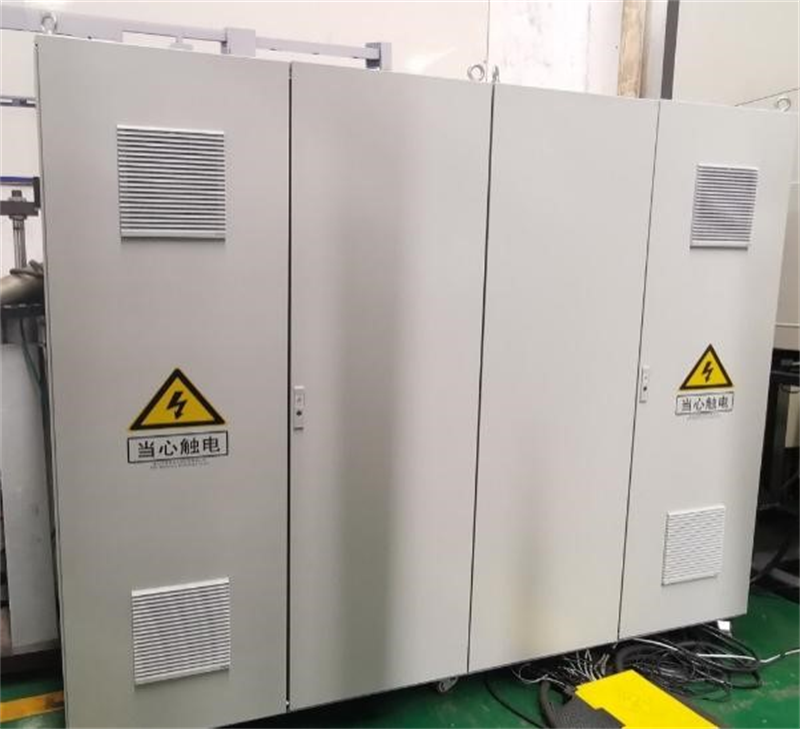

CE standard independent electric cabinet, imported electrical components ensure stability, less maintenance, the circuit is controlled by PLC, the button is less, the operation is simple, and the humanized design.
Frequently Asked Questions (FAQ)
What are the primary differences between the RTR-T series models?
The main differences lie in maximum roll width capacity (ranging from 1450mm on the RTR-T1450 up to 2050mm on the RTR-T2050), maximum roll weight capacities, total power consumption, and overall machine footprint dimensions tailored to different operational requirements.
What paper specifications and speeds can these machines handle?
The machines support paper weights from 100 to 450 g/m² (108-450 g/m² for RTR-T2050) and can achieve reliable production speeds between 80 and 120 meters per minute.
How does the heating system ensure consistent laminating quality?

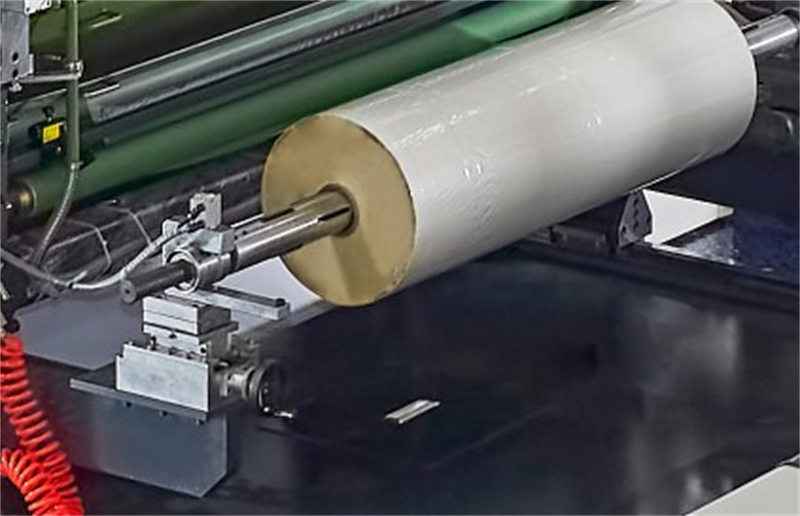

The equipment uses an advanced electromagnetic induction heating system directly applied to the steel roll. Combined with superconducting materials and an intelligent PLC temperature control system (up to 120°C), it guarantees rapid heat compensation and uniform surface temperature.
What film types are compatible with this equipment?

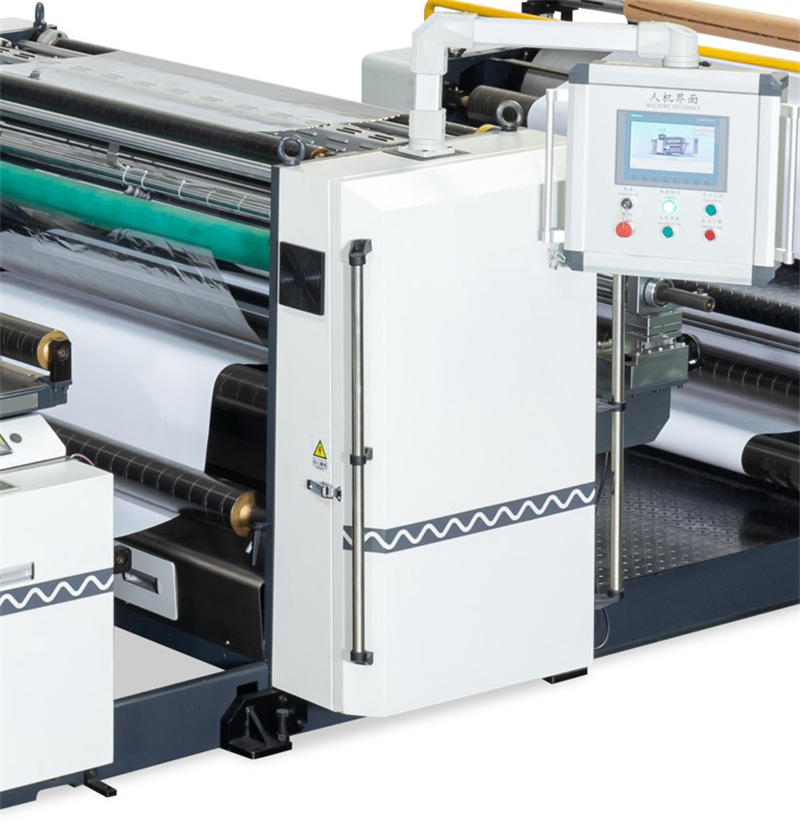

The system is designed to adapt to both non-glue films and pre-coating films. A magnetic particle brake system ensures constant and uniform film unwinding tension.
What core component brands are built into these machines?
The machine integrates high-grade global component brands, including SIEMENS 7.5KW main motors, Italian Oiltec hydraulic systems (pumps and cylinders), and CE-standard independent electrical control cabinets.
What safety and operational features are included?

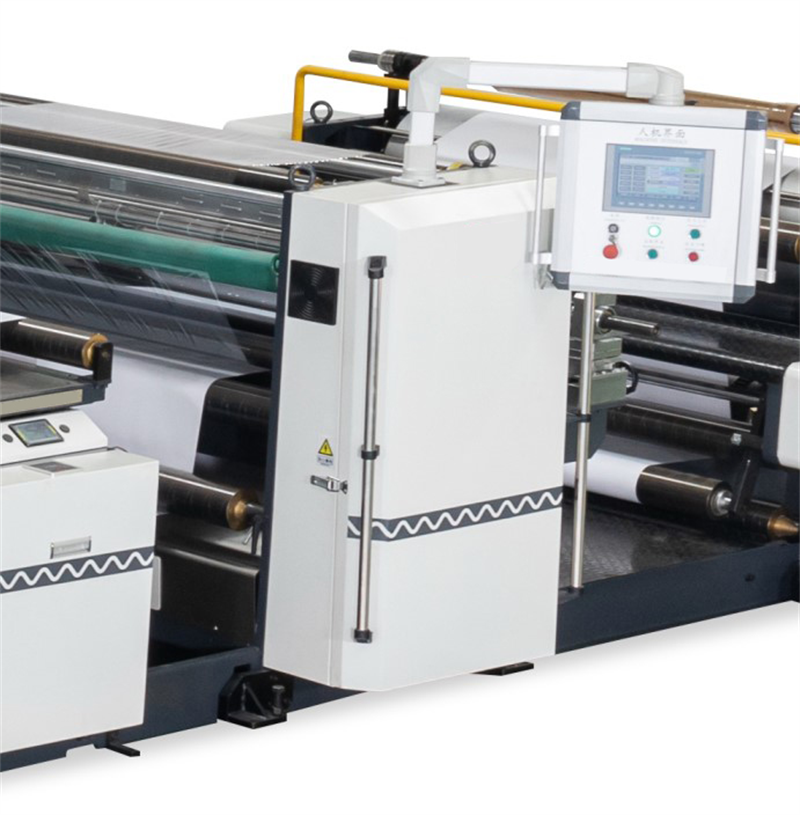

Operation safety is ensured through PLC logic safety switches on paper core buckles, multi-point braking systems, double-cylinder hydraulic roll lifters, and a simplified human-machine interface designed to reduce manual intervention errors.
