China GUV-1060 High Speed UV Spot Coating Machine Factory, Product

1 / 1

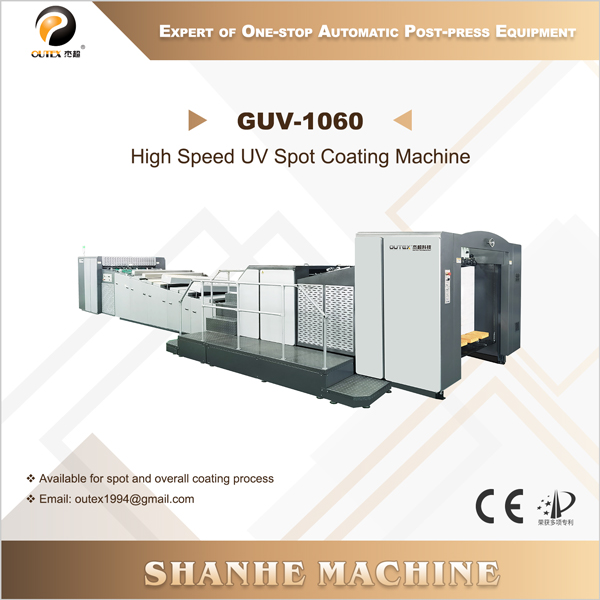

China GUV-1060 High Speed UV Spot Coating Machine Factory, Product

GUV-1060 is available for spot and overall coating of both UV varnish and water-based / oil-based varnish. The spot/overall coating will be finished by covering rubber blanket or flexo plate on the roller. It’s precise and even in the spot coating. Machine can run maximally 6000-8000 pcs/hr.

Send Inquiry

Product Description

Technical Specifications

GUV-1060
Max. Sheet	1060 x 740mm
Min. Sheet	406 x 310mm
Rubber Blanket Size	1060 x 840mm
Max. Coating Area	1050 x 730mm
Sheet Thickness	100 - 450gsm
Max. Coating Speed	6000 - 8000 sheet/hour
Power Required	IR: 42KW \| UV: 42KW
Dimension (L x W x H)	11756 x 2300 x 2010mm
Weight Machine	8500kg
Feeder Height	1300mm
Delivery Height	1350mm

System Features & Components

Feeder System

Max. Pile height: 1300mm
Accurate entry of sheets into varnishing unit
Double sheet detector
Miss-sheet control
Emergency stop
Barrier for foreign objects
Overrun safety device at feeder pile

Varnishing Unit

7000-8000 speed system
Varnish pump for continuous varnish circulation and mixing of varnish
Hand cranked lubricating device
Blanket rubber × 1
2-sets of clamp for blanket
SUS: 304 varnish tank with heater (Q’TY: 1set)
Capacity: 40kgs

UV Curing System

2 groups of U.V lamps control panel
Control panel
Full/half-lamp safety device
Safety control for over-temperature
UV leakage protection

IR Heating & Drying System

Electric heating high temperature system, supply heat, let the paint absorb
Special air-return design, wind pressure evenly distributed on the paper
Effectively help UV paint leveling, reduce orange peel result
IR lamp and reflector cover, focusing heat on the surface of the paper

Delivery Unit

Max. Pile height: 1350mm
Chain type hanging board loading platform
Exhaust system with exhaust blower & ducts to extract fumes
HMI with safety detection system
Sheet counter
Paper delivery part lifting limit safety device
Paper levelling device

Frequently Asked Questions (FAQ)

What are the sheet size specifications for the GUV-1060?

The GUV-1060 supports a maximum sheet size of 1060 x 740mm and a minimum sheet size of 406 x 310mm, with a maximum coating area of 1050 x 730mm.

What paper thickness range is suitable for this machine?

The machine handles paper stock thicknesses ranging from 100gsm to 450gsm.

What is the maximum production speed of the GUV-1060?

The maximum coating speed reaches 6000 to 8000 sheets per hour.

What drying and curing mechanisms are integrated into this system?

The machine features both IR electric heating high temperature systems (42KW) for varnish leveling and UV lamp curing control panels (42KW) for instant curing.

What safety protections are installed on the machine?

Safety features include a double sheet detector, miss-sheet control, emergency stop, foreign object barrier, overrun safety device, over-temperature control, UV leakage protection, and delivery lifting limit safety devices.

What are the overall dimensions and weight of the GUV-1060?

The machine dimensions are 11756 x 2300 x 2010mm (L x W x H), and it has a total machine weight of 8500kg.
