| DC-2516 Specifications | |
|---|---|
| Working area | 1600mm (Width Y Axis) * 2500mm (Length X1, X2 Axis) |

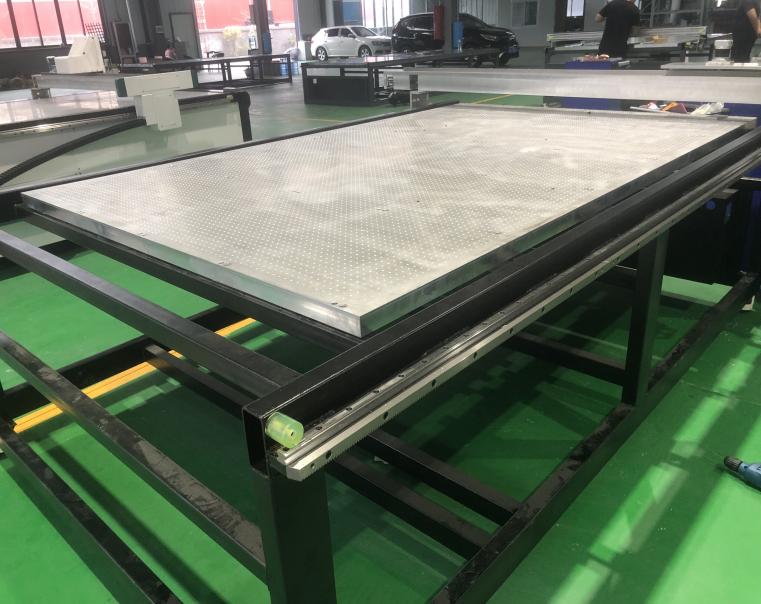

| Working table | Fixed vacuum working table |
| Material fixed way | Vacuum suction system |
| Cutting speed | 0-1,500mm/s (according to different cutting materials) |
| Cutting thickness | ≤20mm |
| Cutting accuracy | ≤0.1mm |
| Drive system | Taiwan Delta servo motors and drivers |
| Transmission system | Taiwan linear square guide rails |
| Instruction system | HP-GL compatible format |

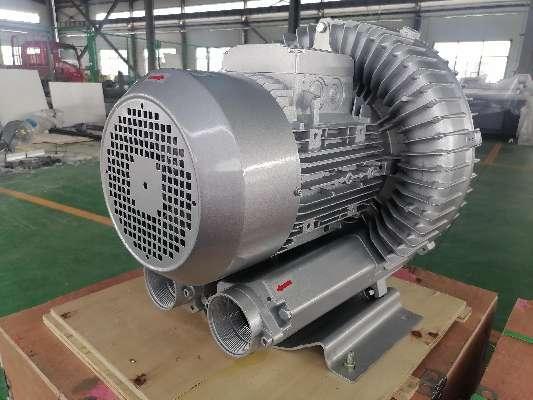

| Vacuum pump power | 7.5 KW |
| Graphic format supported | PLT, DXF, AI, etc. |
| Compatible software | CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc. |
| Safety device | Infrared sensors and emergency stop devices |
| Working voltage | AC 220V / 380V ±10%, 50Hz/60Hz |
| Package | Wooden case |
| Machine size | 3150 x 2200 x 1350 mm |
| Packing Size | 3250 x 2100 x 1120 mm |
| Net weight | 1000 KGS |
| Gross weight | 1100 KGS |

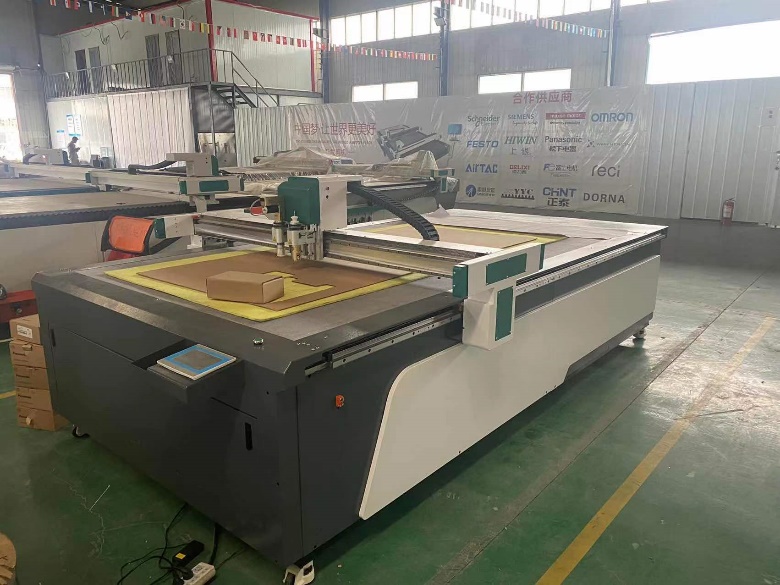

The DC-2516 features a generous working area of 1600mm in width (Y Axis) by 2500mm in length (X1, X2 Axis), suitable for handling large-format materials efficiently.
The machine delivers cutting speeds up to 0-1,500mm/s depending on material properties, and can slice through materials with a thickness of ≤ 20mm and cutting accuracy within ≤ 0.1mm.

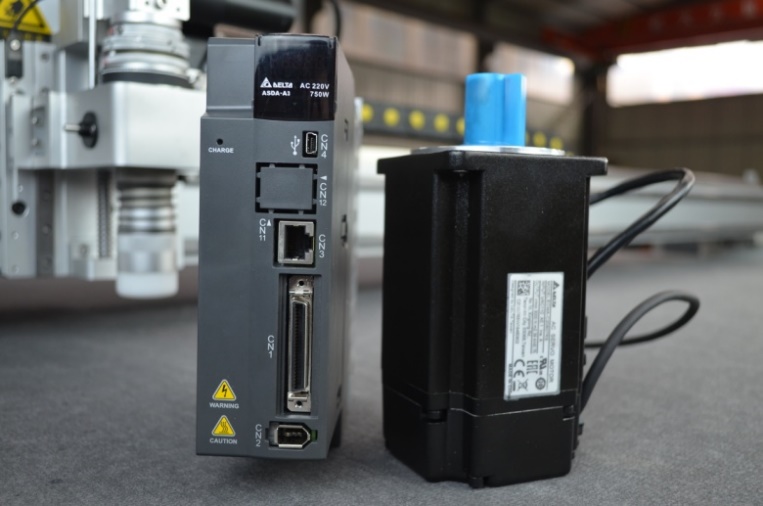

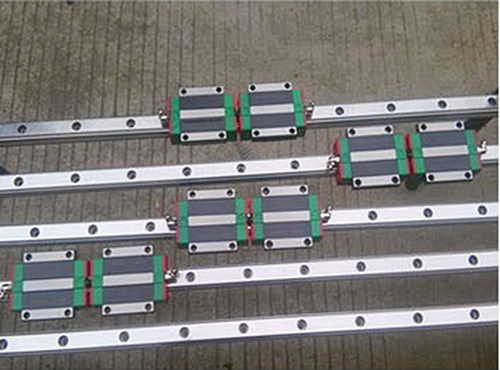

It utilizes high-precision Taiwan Delta servo motors and drivers paired with smooth, durable Taiwan linear square guide rails for stable motion control.
The DC-2516 supports graphic formats such as PLT, DXF, and AI, and seamlessly integrates with standard software including CorelDRAW, Photoshop, AutoCAD, and Tajima.
To ensure maximum operational security, the machine comes built-in with responsive infrared sensors and accessible emergency stop devices.
The machine runs on AC 220V/380V ±10% (50Hz/60Hz) with a 7.5 KW vacuum pump. Overall machine dimensions are 3150 x 2200 x 1350 mm with a net weight of 1000 KGS.
