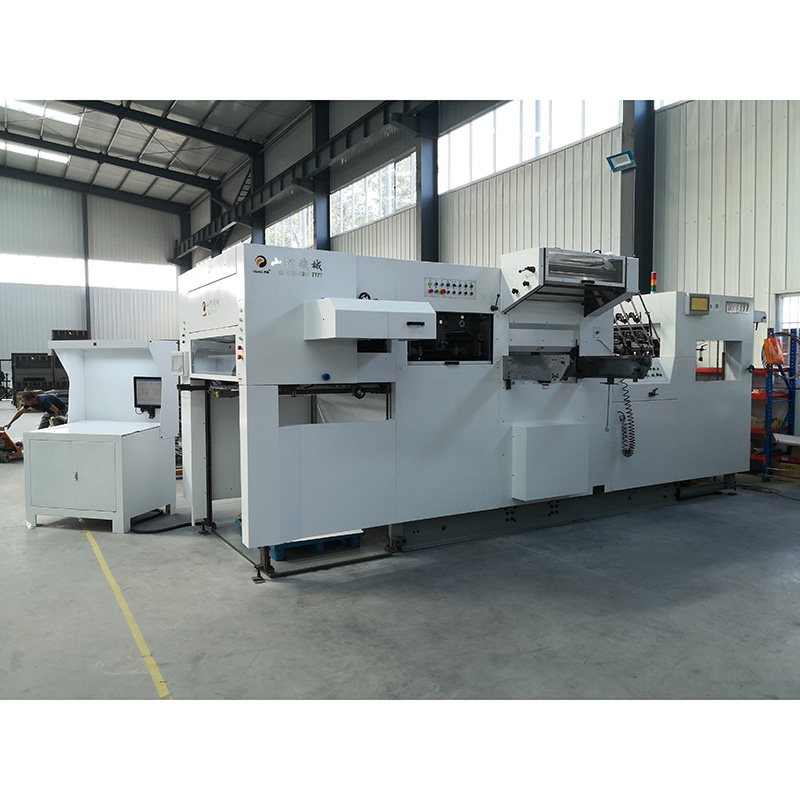

| HTJ-1060 Technical Specifications | |
|---|---|
| Max. paper size(mm) | 1080(W) x 780(L) |
| Min. paper size(mm) | 400(W) x 360(L) |
| Max. stamping size(mm) | 1060(W) x 720(L) |
| Max. die cutting size(mm) | 1070(W) x 770(L) |
| Max. stamping speed(pcs/hr.) | 6000 (depends on paper layout) |
| Max. running speed(pcs/hr.) | 7000 |
| Stamping precision(mm) | ±0.12 |
| Stamping temperature(℃) | 0~200 |
| Max. pressure(Ton) | 350 |
| Paper thickness(mm) | Cardboard: 0.1—2; Corrugated board: ≤4 |
| Foil delivering way | 3 longitudinal foil feeding shafts; 2 transversal foil feeding shafts |
| Total power(kw) | 40 |
| Weight(ton) | 17 |
| Size(mm) (Excl. pedal & pre-stacking) | 5900 × 2750 × 2750 |
| Size(mm) (Incl. pedal & pre-stacking) | 7500 × 3750 × 2750 |
| Air compressor capacity | ≧0.25 ㎡/min, ≧0.6mpa |
| Power rating | 380±5%VAC |

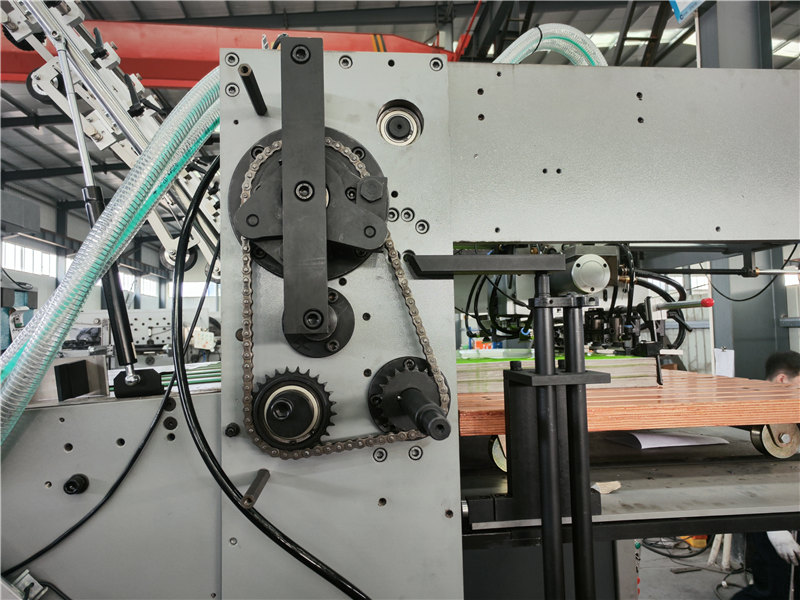

When the front gauge is in position, each paper will be buffered and decelerated to prevent distortion due to rapid paper feeding, so ensuring stable accuracy.

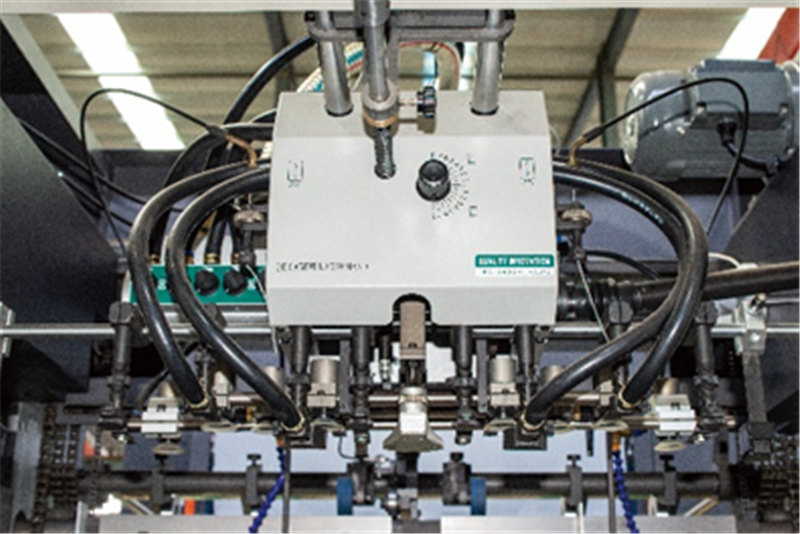

The feeder has a heavy-duty, distinctive design that has powerful suction and can easily send out cardboard, corrugated, and gray board paper. To increase the stability of the suction paper, the suction head can continuously change the suction angle in response to how the paper is deforming. Functions for accurate use control and simple adjustment are available. Precise and reliable paper feeding for both thick and thin paper.Long service life, convenient maintenance, low stretch rate in long-term operation, high torque, low noise, and reliable transmission.

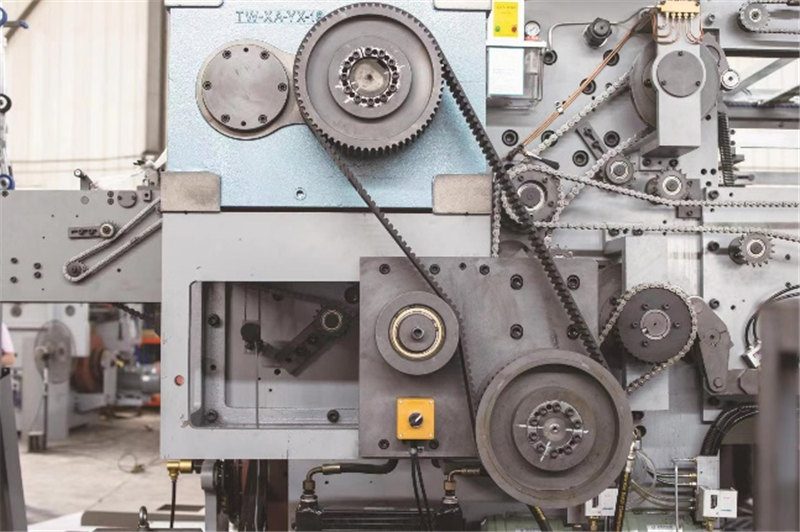

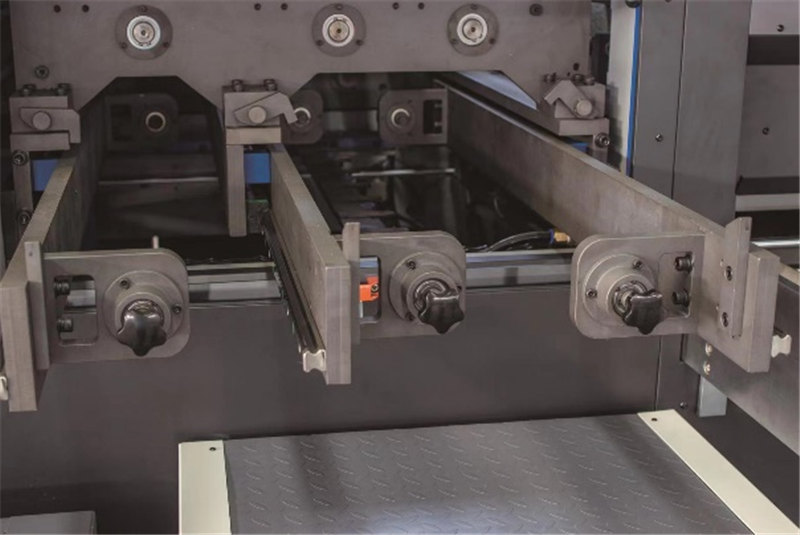

Adopts two kinds of unwinding structures for foils that are capable of removing the unwinding frame. The frame is robust, strong, and flexible, and the speed is quick.

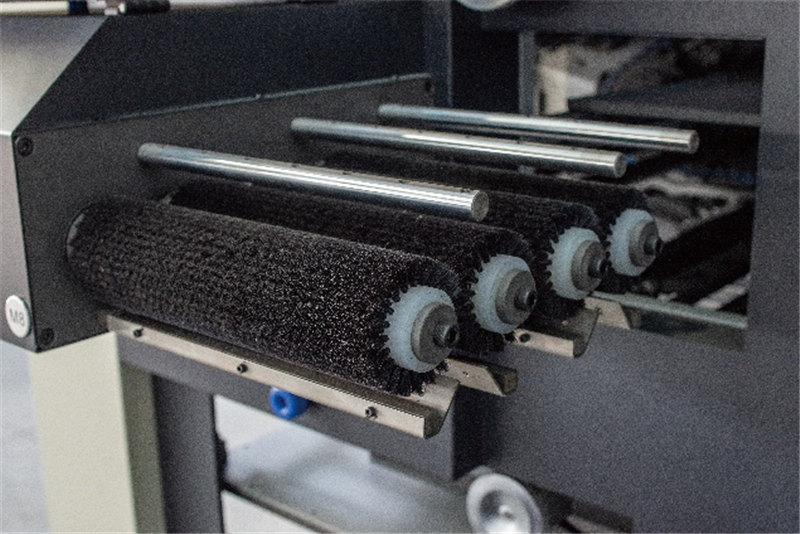

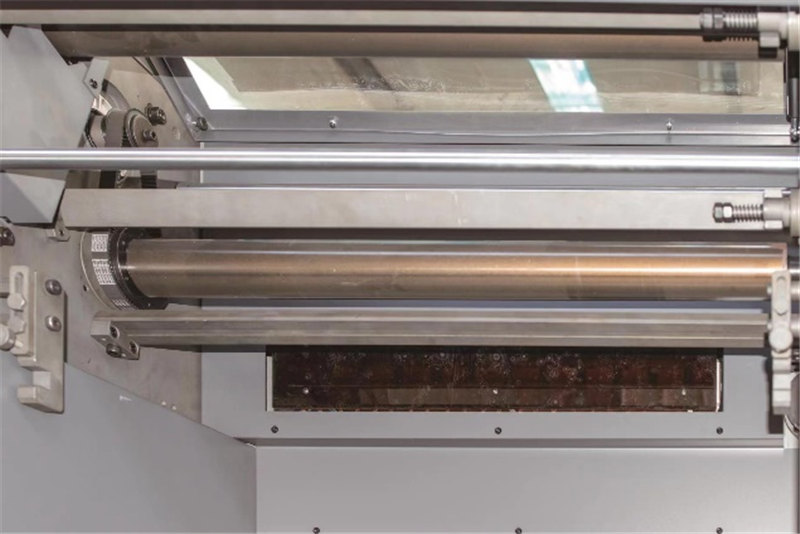

It is very useful and convenient for external foil collecting structures to directly collect and rewind foil. It resolves the pollution issue brought on by the gold dust from the foil in the brush wheel. Direct rewinding is very space and labor efficient. Additionally, our stamping equipment can be used to collect interior foil.Uses two independent servo motor in foil winding and one servo motor in rewinding. Stable, prominent and easy!
The HTJ-1060 reaches a maximum running speed of 7,000 pcs/hr and a maximum stamping speed of up to 6,000 pcs/hr, depending on the paper layout.
It supports paper sizes from 400(W) x 360(L) mm up to 1080(W) x 780(L) mm. Suitable materials include cardboard (0.1–2 mm thickness) and corrugated board (≤4 mm thickness).
The system utilizes 3 longitudinal and 2 transversal foil feeding shafts. It features two independent servo motors for foil winding and one servo motor for direct rewinding, ensuring clean, space-saving, and gold dust-free operation.
The HTJ-1060 offers high stamping precision of ±0.12 mm and delivers a maximum pressure of 350 Tons with temperature adjustments ranging from 0 to 200 ℃.
The machine requires a rated power supply of 380±5% VAC, total power consumption of 40 kw, and an air compressor capacity of ≥0.25 m³/min at ≥0.6 MPa pressure.
