High-Quality HTJ-1080 Automatic Hot Stamping Machine Manufacturer, Factories

1 / 1

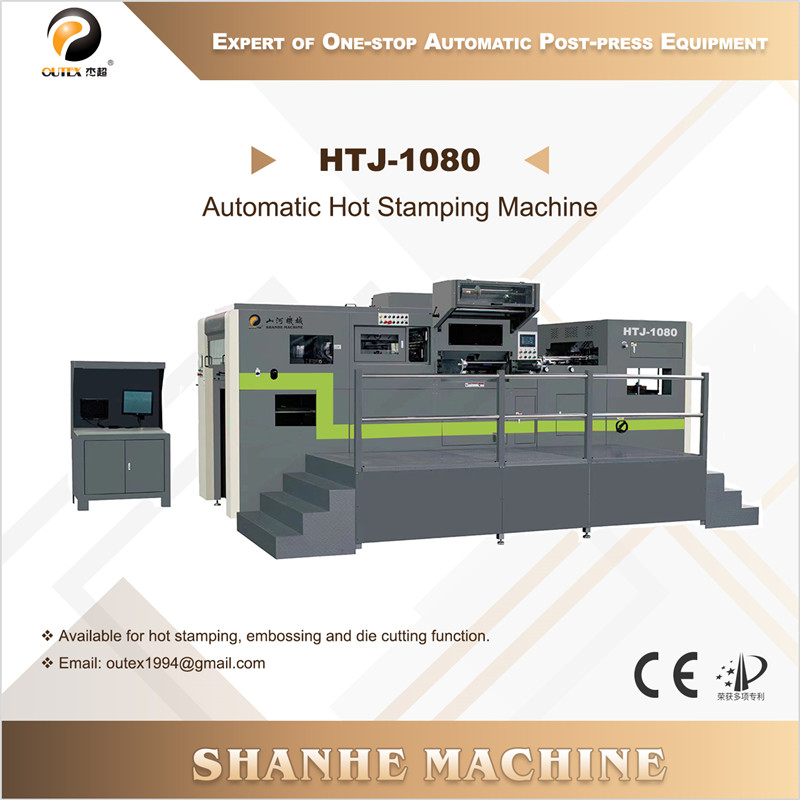

High-Quality HTJ-1080 Automatic Hot Stamping Machine Manufacturer, Factories

HTJ-1080 Automatic Hot Stamping Machine is the ideal equipment for hot stamping procedure that designed by SHANHE MACHINE. High precise registration, high production speed, low consumables, good stamping effect, high embossing pressure, stable performance, easy operation and high production efficiency are its advantages.

Send Inquiry

Product Description

Technical Specifications

HTJ-1080
Max. paper size (mm)	1080(W) x 780(L)
Min. paper size (mm)	400(W) x 360(L)
Max. stamping size (mm)	1060(W) x 720(L)
Max. die cutting size (mm)	1070(W) x 770(L)
Max. stamping speed (pcs/hr.)	6000 (depends on paper layout)
Max. running speed (pcs/hr.)	7000
Stamping precision (mm)	±0.12
Stamping temperature (℃)	0 ~ 200
Max. pressure (ton)	350
Paper thickness (mm)	Cardboard: 0.1—2; Corrugated board: ≤4
Foil delivering way	3 longitudinal foil feeding shafts; 2 transversal foil feeding shafts
Total power (kw)	40
Weight (ton)	17
Size (mm) (Excl. pedal & pre-stacking)	5900 × 2750 × 2750
Size (mm) (Incl. pedal & pre-stacking)	7500 × 3750 × 2750
Air compressor capacity	≧0.25 ㎡/min, ≧0.6mpa
Power rating	380±5%VAC

Key Product Features

Each paper will be buffered and decelerated when the front gauge is in place to avoid deformation due to high paper feeding speed, so as to ensure stable accuracy.

Feeder is a unique heavy-duty design with strong suction, and can send out cardboard, corrugated and gray board paper smoothly. The suction head can adjust various suction angles according to the deformation of the paper without stopping to make the suction paper more stable. There are easy adjustment and precise use control functions. Both thick and thin, accurate and stable paper feeding. Reliable transmission, large torque, low noise, low stretch rate in long-term operation, not easy to deform, convenient maintenance and long service life.

Uses two groups of foil unwinding structure that can pull out the unwinding frame. The speed is fast and the frame is stable, durable and flexible.

Machine Gallery & Components

Frequently Asked Questions (FAQ)

What paper materials and thicknesses can the HTJ-1080 handle?

The HTJ-1080 is designed to process cardboard with thicknesses ranging from 0.1 to 2 mm, corrugated board up to 4 mm, as well as gray board paper smoothly.

What are the maximum operational speeds for stamping and running?

The machine delivers a maximum running speed of 7,000 pcs/hr and a maximum stamping speed of up to 6,000 pcs/hr, depending on the paper layout.

How does the machine maintain high accuracy during high-speed feeding?

Each sheet is buffered and decelerated when reaching the front gauge to prevent deformation caused by high feeding speeds, achieving a precise stamping tolerance of ±0.12 mm.

What is the configuration of the foil delivering system?

It features 3 longitudinal and 2 transversal foil feeding shafts equipped with two pull-out foil unwinding structures, ensuring fast, stable, and flexible operation.

What are the power and utility requirements for installing the HTJ-1080?

The unit requires a total power of 40 kW, 380±5% VAC power rating, and an air compressor capacity of ≥0.25 m³/min with a pressure of ≥0.6 MPa.
