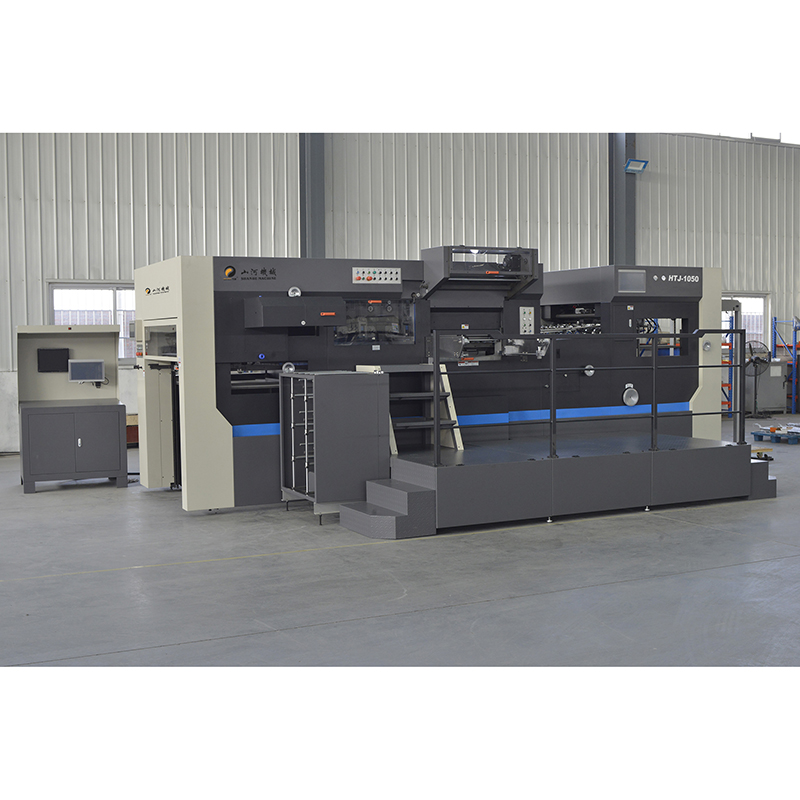

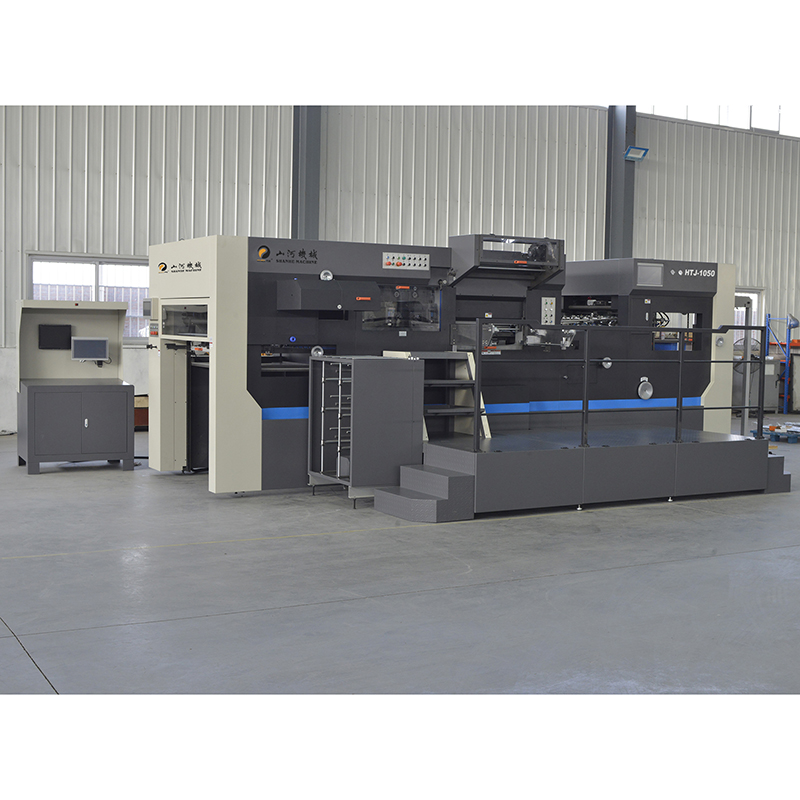

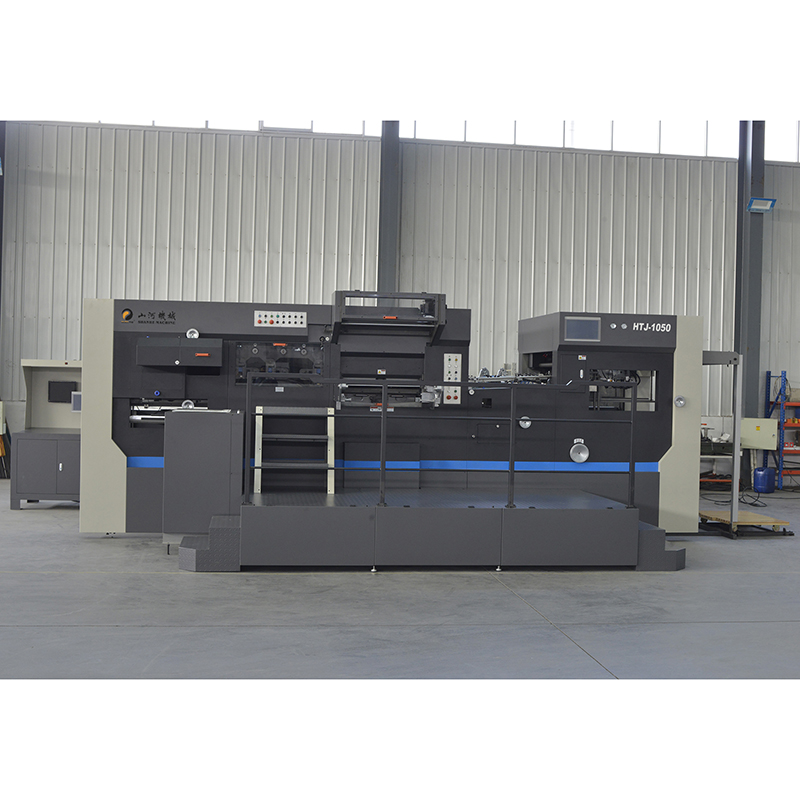

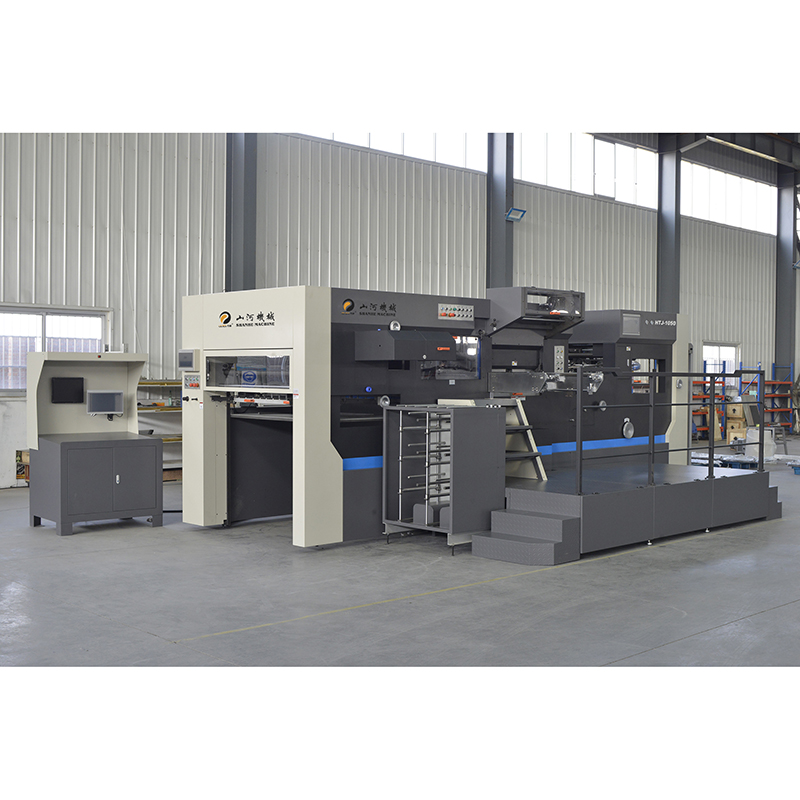

HTJ-1050 Automatic Hot Stamping Machine is the ideal equipment for hot stamping procedure that designed by SHANHE MACHINE. High precise registration, high production speed, low consumables, good stamping effect, high embossing pressure, stable performance, easy operation and high production efficiency are its advantages.
Send Inquiry

Product Description

Technical Specifications
HTJ-1050
Max. paper size (mm) 1060(W) x 760(L)
Min. paper size (mm) 400(W) x 360(L)
Max. stamping size (mm) 1040(W) x 720(L)
Max. die cutting size (mm) 1050(W) x 750(L)
Max. stamping speed (pcs/hr.) 6500 (depends on paper layout)
Max. running speed (pcs/hr.) 7800
Stamping precision (mm) ±0.09
Stamping temperature (℃) 0~200
Max. pressure (ton) 450
Paper thickness (mm) Cardboard: 0.1—2; Corrugated board: ≤4
Foil delivering way 3 longitudinal foil feeding shafts; 2 transversal foil feeding shafts
Total power (kw) 46
Weight (ton) 20
Size (mm) Not include operation pedal and pre-stacking part: 6500 × 2750 × 2510
Include operation pedal and pre-stacking part: 7800 × 4100 × 2510
Air compressor capacity ≧0.25 ㎡/min, ≧0.6mpa
Power rating 380±5%VAC
Performance Highlights
Paper Alignment System
Each paper will be buffered and decelerated when the front gauge is in place to avoid deformation due to high paper feeding speed, so as to ensure stable accuracy.
Heavy-duty Feeder System
Feeder is a unique heavy-duty design with strong suction, and can send out cardboard, corrugated and gray board paper smoothly.
The suction head can adjust various suction angles according to the deformation of the paper without stopping to make the suction paper more stable. There are easy adjustment and precise use control functions. Both thick and thin, accurate and stable paper feeding.
Reliable transmission, large torque, low noise, low stretch rate in long-term operation, not easy to deform, convenient maintenance and long service life.
Foil Unwinding Structure
Uses two groups of foil unwinding structure that can pull out the unwinding frame. The speed is fast and the frame is stable, durable and flexible.
Foil Collecting Structure
External foil collecting structure can directly collect and rewind foil; it’s very convenient and practical. It changes the pollution problem that caused by the foil’s gold dust in the brush wheel. Directly rewinding highly saves space and labor.
Besides, our stamping machine is also available for internal foil collection.
Uses two independent servo motor in foil winding and one servo motor in rewinding. Stable, prominent and easy!
Machine Component Details
Machine Component View 1
Machine Component View 2
Frequently Asked Questions (FAQ)
What are the operational speeds of the HTJ-1050?
The HTJ-1050 delivers a maximum running speed of 7800 pcs/hr and a maximum stamping speed of 6500 pcs/hr, depending on the paper layout.
What paper sizes and thicknesses are supported?
It supports paper sizes from 400(W) x 360(L) mm up to 1060(W) x 760(L) mm. It handles cardboard thicknesses from 0.1 to 2 mm and corrugated board up to ≤4 mm.
How is high precision maintained during high-speed feeding?
Each paper is buffered and decelerated when the front gauge is in place, which prevents paper deformation from high feeding speeds and ensures a high stamping precision of ±0.09 mm.
How does the foil collection system operate?
The machine features an external foil collecting structure that directly rewinds foil, preventing gold dust pollution associated with brush wheels while saving space and labor. Internal foil collection is also supported.
What are the foil delivering configuration details?
It utilizes 3 longitudinal foil feeding shafts and 2 transversal foil feeding shafts, driven by two independent servo motors for foil winding and one servo motor for rewinding.
What are the power and space requirements for installation?
The machine requires a total power of 46 kW, 380±5%VAC power rating, and air compressor capacity of ≧0.25 ㎡/min, ≧0.6mpa. Full dimensions including the pedal and pre-stacking part are 7800 × 4100 × 2510 mm, with a total weight of 20 tons.
