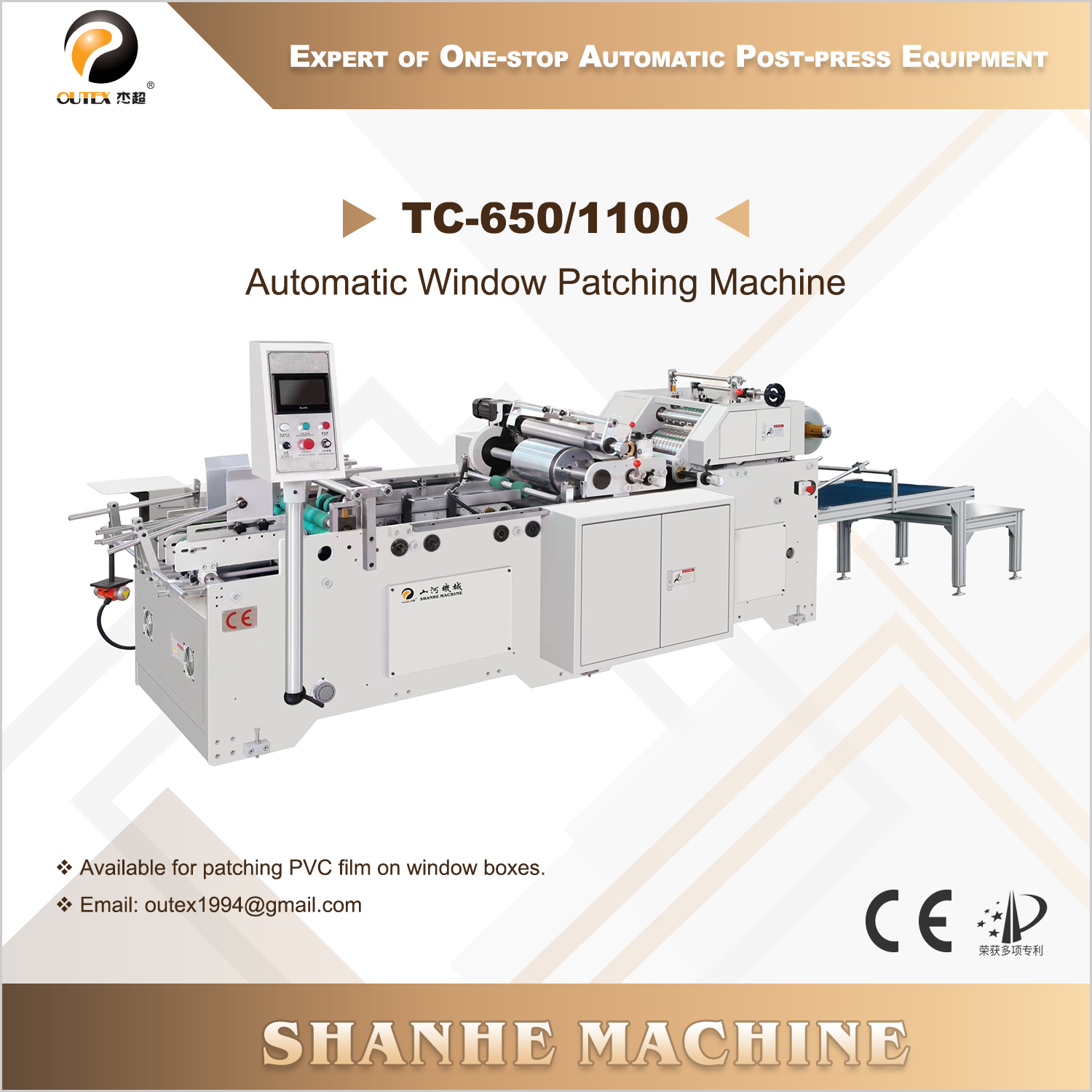

| Model | TC-650 | TC-1100 |
| Max. paper size(mm) | 650*650 | 650*970 |
| Min. paper size(mm) | 100*80 | 100*80 |
| Max. patch size(mm) | 380*300 | 380*500 |
| Min. patch size(mm) | 40*40 | 40*40 |
| Max. speed(pcs/h) | 20000 | 20000 |
| Film thickness(mm) | 0.03—0.25 | 0.03—0.25 |
| Small size paper length range(mm) | 120 ≤ paper length ≤ 320 | 120 ≤ paper length ≤ 320 |
| Big size paper length range(mm) | 300 ≤ paper length ≤ 650 | 300 ≤ paper length ≤ 970 |
| Machine weight(kg) | 2000 | 2500 |
| Machine size(m) | 5.5*1.6*1.8 | 5.5*2.2*1.8 |
| Power(kw) | 6.5 | 8.5 |
It adopts 304 stainless steel cylinder to drive glue, and use scraper device to adjust the thickness and width of glue and save glue at the great extent. The user may use flexo template for gluing accurately and efficiently. Gluing position can be adjusted left and right reely or front and back via phase regulator while maintaining normal operation. The rollers can be disengaged to avoid glue on belt in case of no paper. Glue container is inverted so that the glue goes out smoothly and it is easy to clean.
This machine used the Japan imported belt to draw out the paper from the bottom and non-stop machine used to continuously add and feed the paper; discontinuous belt conveying adopts servo control, with two kinds of paper out mode; multiple carrying belts have been equipped with gear and gear rack device which can adjust the position of belt, be more left or more right.

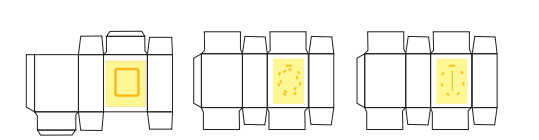

Using servo linear drive, the length of the film input through the touch screen. With the rolling knife, the film can be automatically cut. The sawtooth line can be automatically pressed out and also cut out the mouth of film(such as facial tissue box). Using suction cylinder to hold the cut film onto the blank, and the position of the film can be adjusted without stopping.
It adopts belt convey and stacked device to collect paper.
