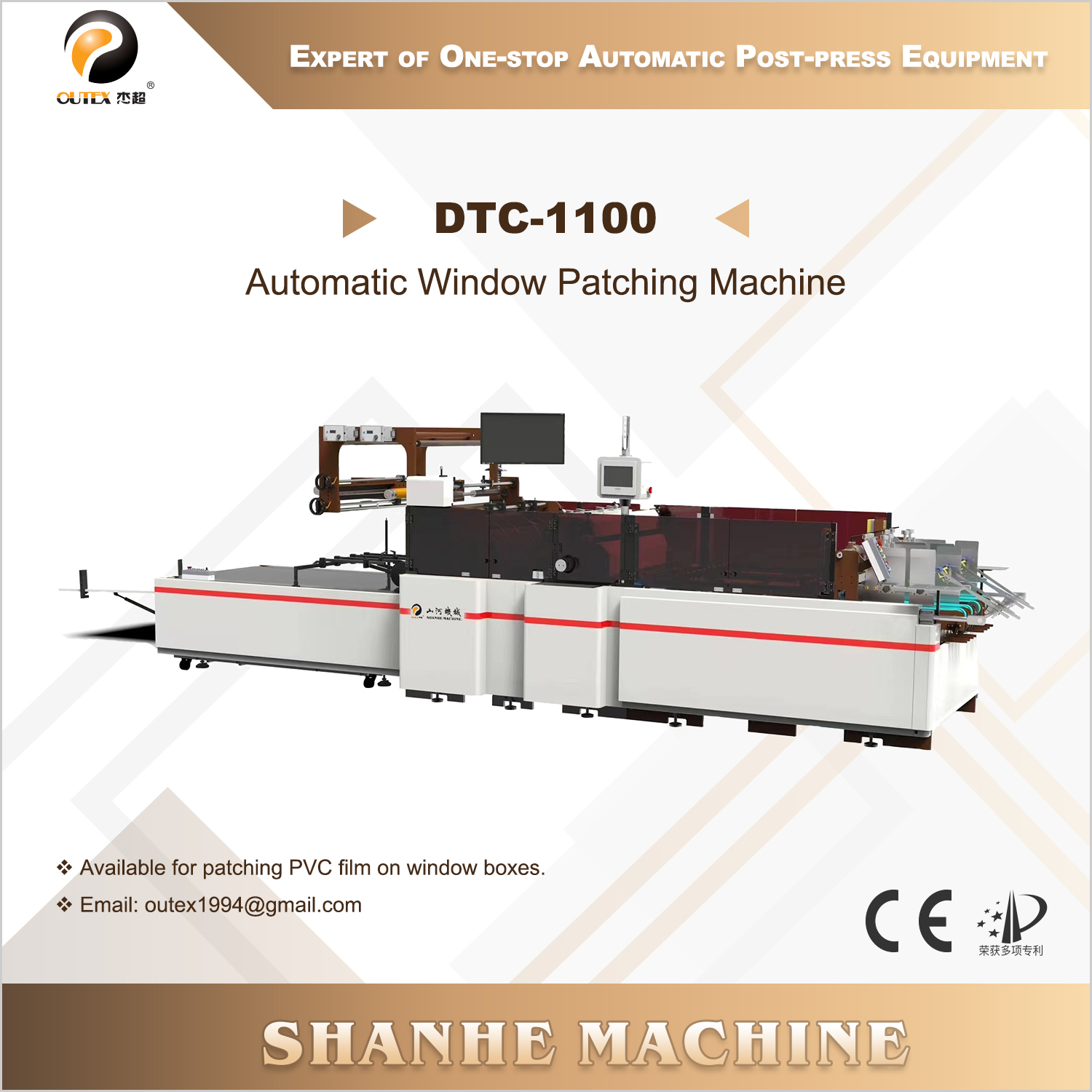

| DTC-1100 Specifications | |
| Max. paper size(mm) | 960*1100 |
| Min. paper size(mm) | 200*150 |
| Max. thickness of paper |
6mm (corrugated) 200-500g/㎡ (cardboard) |
| Max. patch size(mm) | 600(L)*800(W) |
| Min. patch size(mm) | 40(L)*40(W) |
| Film thickness(mm) | 0.03—0.25 |
| Max. speed of small size paper(pcs/h) |
One channel ≤ 20000 Double channel ≤ 40000 |
| Max. speed of medium size paper(pcs/h) |
One channel ≤ 15000 Double channel ≤ 30000 |
| Max. speed of big size paper(pcs/h) | One channel ≤ 10000 |
| Small size paper length range(mm) | 120 ≤ paper length ≤ 280 |
| Medium size paper length range(mm) | 220 < paper length ≤ 460 |
| Big size paper length range(mm) | 420 < paper length ≤ 960 |
| Single channel width range(mm) | 150 < paper length ≤ 400 |
| Double channel width range(mm) | 150 ≤ paper length ≤ 400 |
| Accuracy(mm) | ±1 |
| Machine weight(kg) | About 5500kg |
| Machine size(mm) | 6800*2100*1900 |
| Machine power(kw) | 14 |
| Real power | About 60% of the machine power |

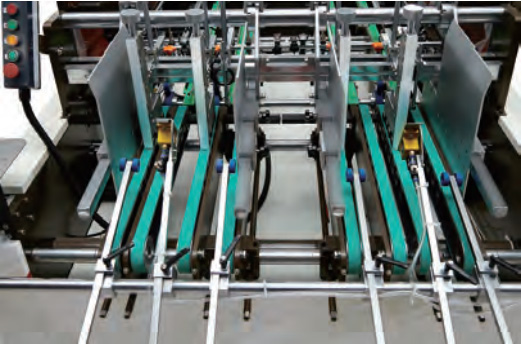

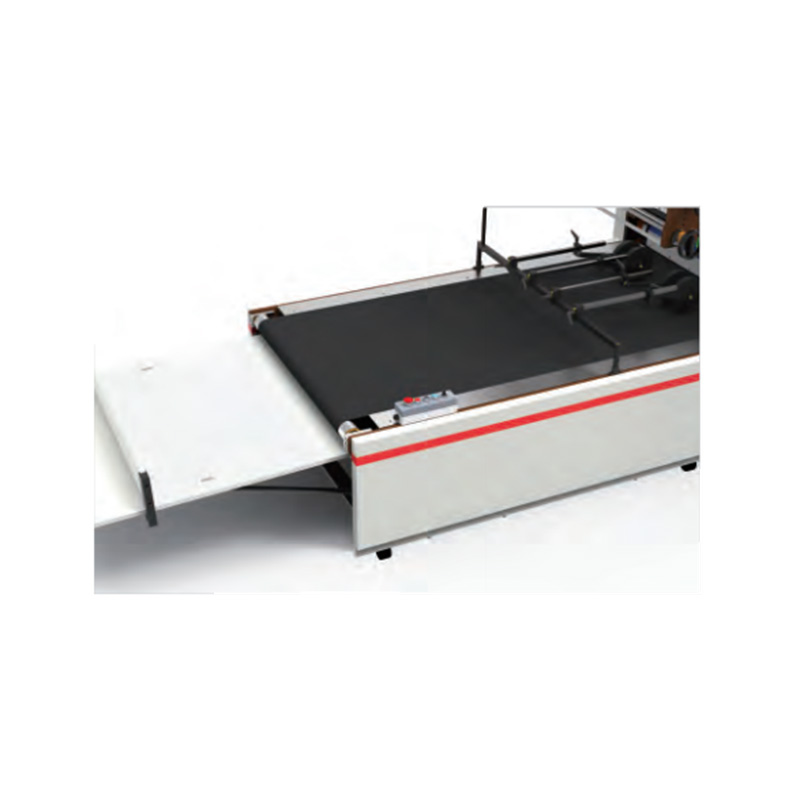

The full servo paper feeder system and a variety of paper mode can adjust cartons of different thickness and specifications to ensure that cartons enter the conveyor belt quickly and stably. Double-channel paper-feeding efficiency.
The whole machine adopts 9 servo motor drive, high precision, good stability, easy to adjust.

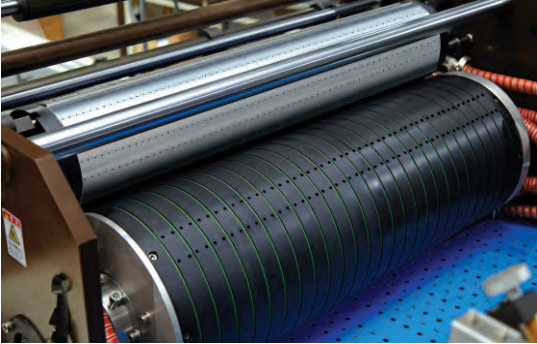

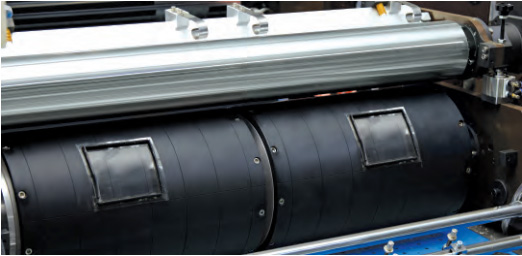

With data memory function. The quick change of cold glue plate can adapt to the quick adjustment of different products. The gellan drum is controlled by servo system, and the position of the front and back of the plate can be adjusted by computer, which is fast and accurate.
The height of glue-coated drum can be adjusted, so it can be adjusted quickly. The lifting device can lift the machine when there is no carton entry to prevent the rubber plate from contacting the conveyor belt. When the machine stops, the cots automatically operate at low speed to prevent the glue from drying.
For small size paper, the machine reaches up to 20,000 pcs/h on a single channel and up to 40,000 pcs/h on a double channel. Medium paper reaches up to 30,000 pcs/h on double channel, and big size paper runs up to 10,000 pcs/h on single channel.
The DTC-1100 handles maximum paper sizes of 960*1100mm down to minimum sizes of 200*150mm. It supports cardboard weighing 200-500g/㎡ and corrugated paper up to 6mm in thickness.
The machine utilizes a 9-servo motor drive system, delivering high precision, exceptional stability, easy adjustment, and full computer-controlled positioning for fast product changeovers.
When the machine is stopped, the cots automatically rotate at a low speed to prevent glue drying. Additionally, a lifting mechanism raises the machine when no carton enters to prevent contact between the rubber plate and conveyor belt.
The machine offers a maximum patch size of 600(L)*800(W) mm and a minimum patch size of 40(L)*40(W) mm, operating with a precise accuracy of ±1mm.
The machine dimensions are 6800*2100*1900 mm, with a weight of approximately 5500 kg. Total machine power is 14kw, while actual working power is about 60% of total machine power.
