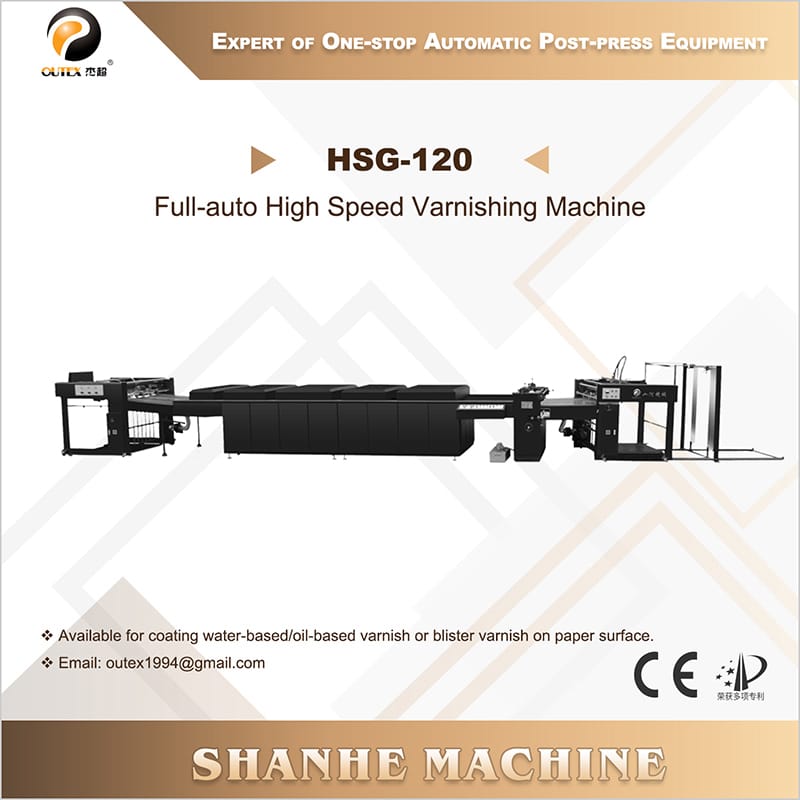

| HSG-120 | |
|---|---|
| Max. paper size(mm) | 1200(W) x 1200(L) |
| Min. paper size(mm) | 350(W) x 400(L) |
| Paper thickness(g/㎡) | 200-600 |
| Machine speed(m/min) | 25-100 |
| Power(kw) | 35 |
| Weight(kg) | 5200 |
| Machine size(mm) | 14000(L) x 1900(W) x 1800(H) |
The paper feeding speed can reach up to 10,000 sheets per hour. Equipped with 4 feeder suckers and 4 feeder blowers, the newly designed glazing machine automatically and continuously feeds paper to ensure smooth conveying of various sizes. Includes a double-sheet detector and a stock table for non-stop paper loading during continuous production.
Features two operational units: the first unit can add water to remove printing powder. The second unit adopts a three-roller design with specialized rubber material for even coating. Suitable for water-based/oil-based varnish and blister varnish, with convenient one-side adjustment.
This brand new IR drying system reasonably matches infrared drying with air drying for rapid paper drying. Compared to traditional IR heating, it saves over 35% energy while increasing efficiency. Redesigned Teflon net conveyor belts ensure stable delivery of different paper sizes.
Utilizes a vacuum suction belt and pneumatic double-side self-aligning device for smooth, orderly paper delivery. Equipped with a production counter and chain-suspended carrier that automatically descends via photoelectric sensors. The unique continuous paper collecting unit prominently increases working efficiency.
