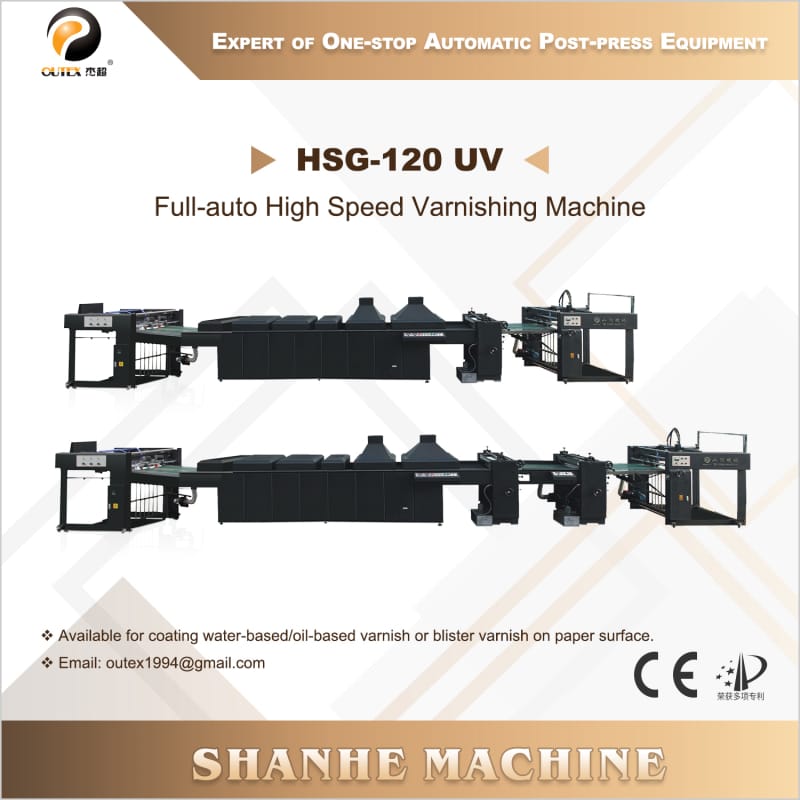

| HSG-120UV | |
|---|---|
| Max. paper size (mm) | 1200(W) x 1200(L) |
| Min. paper size (mm) | 350(W) x 400(L) |
| Paper thickness (g/㎡) | 200-600 |
| Machine speed (m/min) | 25-100 |
| Power (kw) | 63.8 |
| Weight (kg) | 5200 |
| Machine size (mm) | 14000(L) x 1900(W) x 1800(H) |
The first unit matches the second unit; adding water allows it to efficiently remove printing powder. The second unit features a three-roller design with a specially formulated rubber roller for smooth, uniform coating. It is compatible with water-based, oil-based, and blister varnishes, and offers convenient single-side adjustment.
Features an upgraded IR drying system integrated with air drying for rapid paper drying. It achieves over 35% energy savings compared to traditional IR heating while enhancing production efficiency. Redesigned with a Teflon net belt, it ensures stable delivery across various paper sizes.
| HSG-120DUV | |
|---|---|
| Max. paper size (mm) | 1200(W) x 1200(L) |
| Min. paper size (mm) | 350(W) x 400(L) |
| Paper thickness (g/㎡) | 200-600 |
| Machine speed (m/min) | 25-100 |
| Power (kw) | 74.8 |
| Weight (kg) | 7800 |
| Machine size (mm) | 18760(L) x 1900(W) x 1800(H) |
