1 / 5

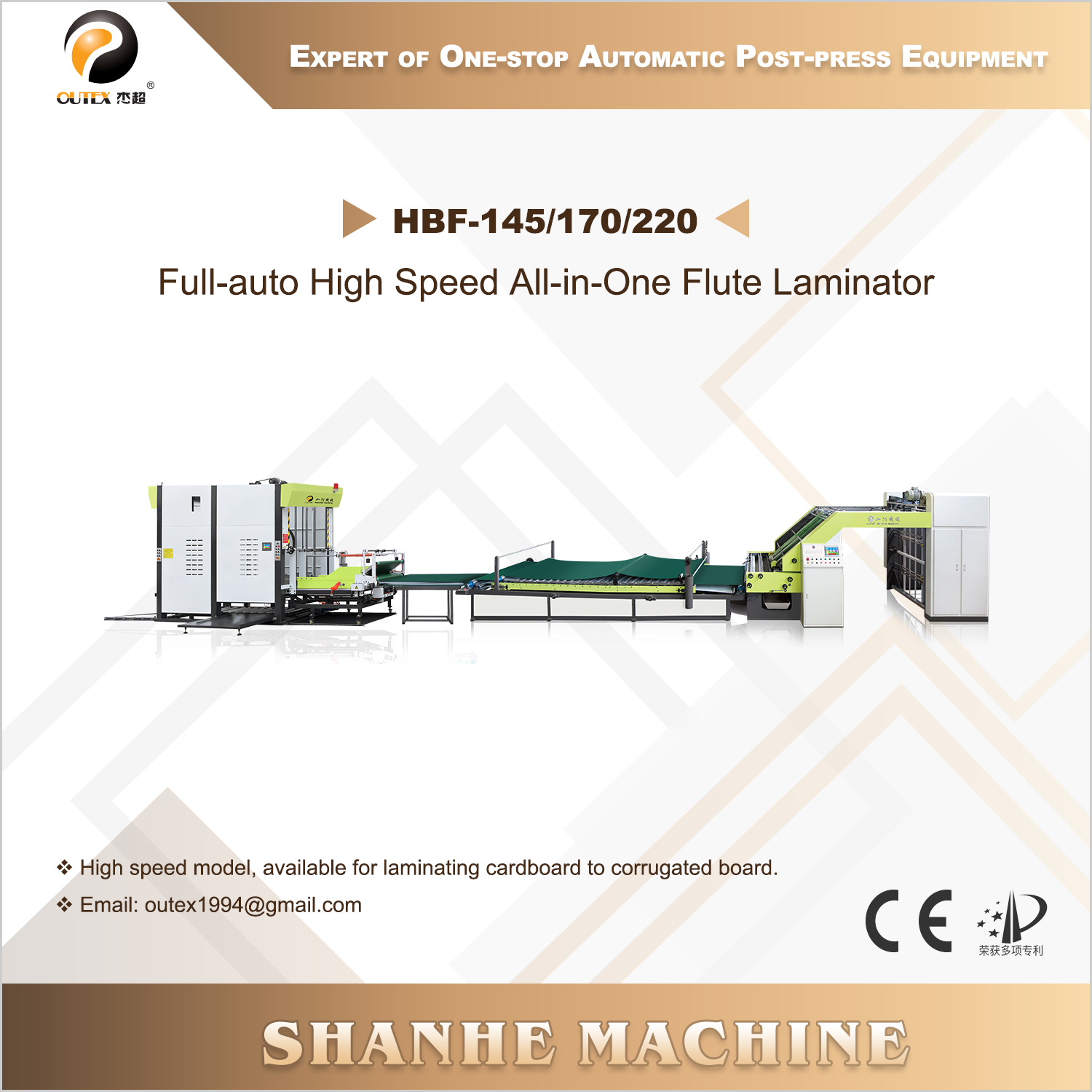

| Max. sheet size(mm) | 1450 (W) x 1300 (L) / 1450 (W) x 1450 (L) |
| Min. sheet size(mm) | 360 x 380 |
| Top sheet thickness(g/㎡) | 128 - 450 |
| Bottom sheet thickness(mm) | 0.5 – 10 (when laminate cardboard to cardboard, bottom sheet > 250gsm) |
| Suitable bottom sheet | Corrugated board (A/B/C/D/E/F/N-flute, 3-ply, 4-ply, 5-ply and 7-ply); grey board; cardboard; KT board, or paper to paper lamination |
| Max. working speed(m/min) | 160m/min (flute length 500mm, max. speed 16000pcs/hr) |
| Lamination accuracy(mm) | ±0.5 - ±1.0 |
| Power(kw) | 16.6 (not include air compressor) |
| Stacker power(kw) | 7.5 (not include air compressor) |
| Weight(kg) | 12300 |
| Machine dimension(mm) | 21500(L) x 3000(W) x 3000(H) |
| Max. sheet size(mm) | 1700 (W) x 1650 (L) / 1700 (W) x 1450 (L) |
| Min. sheet size(mm) | 360 x 380 |
| Top sheet thickness(g/㎡) | 128 - 450 |
| Bottom sheet thickness(mm) | 0.5-10mm (for cardboard to cardboard lamination: 250+gsm) |
| Suitable bottom sheet | Corrugated board (A/B/C/D/E/F/N-flute, 3-ply, 4-ply, 5-ply and 7-ply); grey board; cardboard; KT board, or paper to paper lamination |
| Max. working speed(m/min) | 160 m/min (running 500mm size paper, max. speed 16000pcs/hr) |
| Lamination accuracy(mm) | ±0.5mm to ±1.0mm |
| Power(kw) | 23.57 |
| Stacker power(kw) | 9 |
| Weight(kg) | 14300 |
| Machine dimension(mm) | 23600 (L) x 3320 (W) x 3000(H) |
| Max. sheet size(mm) | 2200 (W) x 1650 (L) |
| Min. sheet size(mm) | 600 x 600 / 800 x 600 |
| Top sheet thickness(g/㎡) | 200-450 |
| Suitable bottom sheet | Corrugated board (A/B/C/D/E/F/N-flute, 3-ply, 4-ply, 5-ply and 7-ply); grey board; cardboard; KT board, or paper to paper lamination |
| Max. working speed(m/min) | 130 m/min |
| Lamination accuracy(mm) | < ± 1.5mm |
| Power(kw) | 27 |
| Stacker power(kw) | 10.8 |
| Weight(kg) | 16800 |
| Machine dimension(mm) | 24800 (L) x 3320 (W) x 3000 (H) |

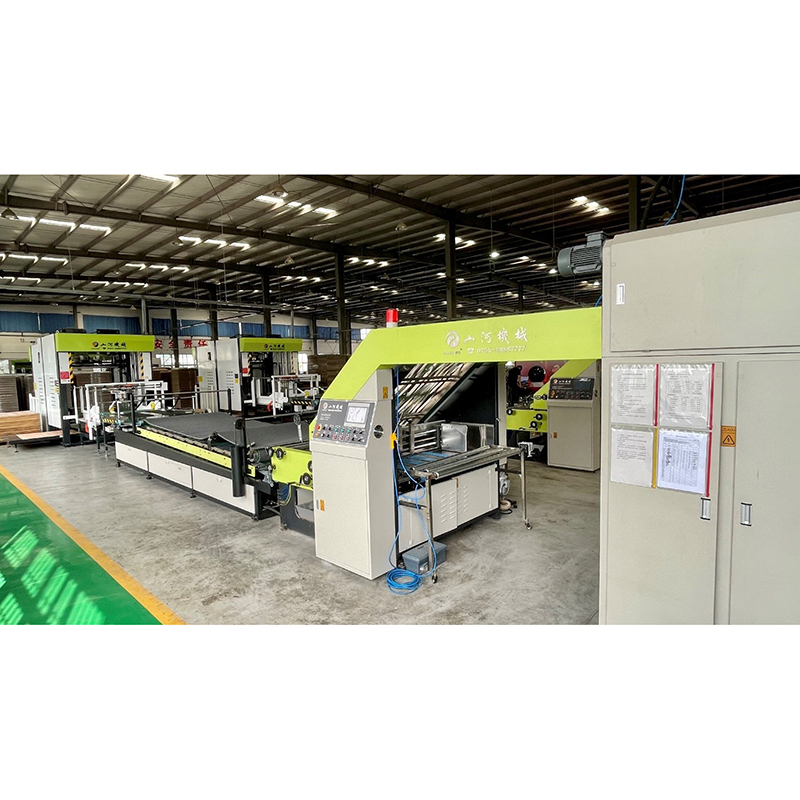

PLC control, touch screen operation, position remote controller and servo motor allow worker to set paper size on the touch screen and adjust the top sheet and bottom sheet’s sending position automatically. The imported sliding rail screw rod makes the positioning precise; at the pressing part there is also a remote controller for adjusting the front and back position. Machine has a memory storage function to remember each product you have saved. HBZ reaches the true automation with full functionality, low consumption, easy operation and strong adaptability.
Shanhe Machine positions HBZ machine upon the European professional industry. The whole machine uses international well-known brands, like Parker (USA), P+F (GER), Siemens (GER), Omron (JPN), Yaskawa (JPN), Schneider (FRA), etc. They guarantee machine operation’s stability and durability. PLC integrated control plus our self-compiled program realize the mechatronics manipulation to maximally simplify the operation steps and save labor cost.

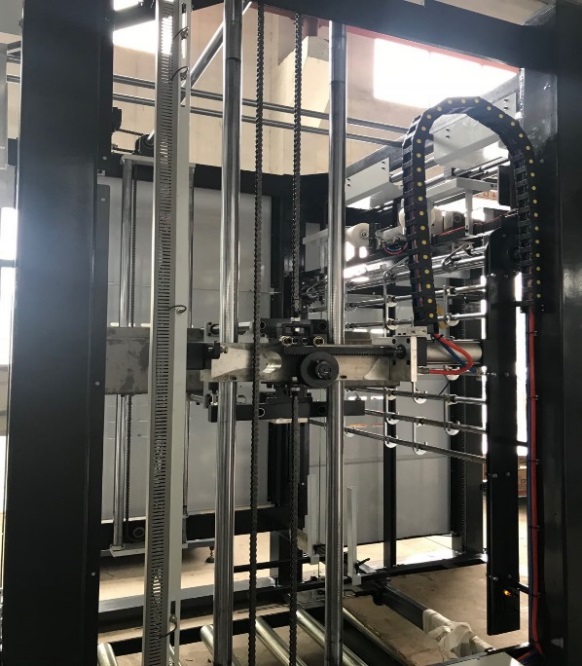

It’s Guangdong Shanhe Industrial Co., Ltd.’s patented owned product. A high-end printer-used feeder and a strengthened paper sending device with four suction nozzles and four feeding nozzles ensure precise and smooth paper conveying. A portal frame external type pre-loading platform is equipped for setting aside time and space for preloading paper sheets, which is safe and reliable, completely meets the requirements of high efficient running.

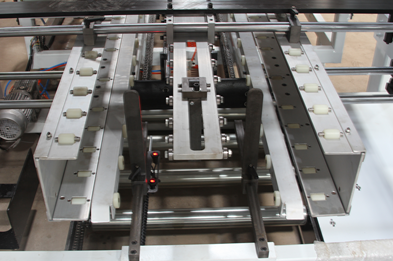

Servo motor drives the suction belts to send bottom paper which includes cardboard, grey board and 3-ply, 4-ply, 5-ply and 7-ply corrugated board with A/B/C/D/E/F/N-flute. The sending is smooth and precise. With strong suction design, machine can send paper with thickness between 250-1100g/㎡. HBZ-170 bottom sheet feeding part uses dual-vortex pump with dual-solenoid valve control, aiming at 1100+mm width paper, can start a second air pump to increase air suction volume, function better on conveying warping and thick corrugation board.
We use imported timing belts instead of the traditional wheel chain to solve the problem of inaccurate lamination between top sheet and bottom sheet due to the worn-out chain and control the lamination error within ±1.5mm, thus fulfill the perfect lamination.
In the high speed operation, in order to coat glue evenly, Shanhe Machine designs a coating part with a special coating roller and a glue-splash-proof device to resolve the glue splashing problem. Full automatic adhesive supplementary and recycling device together helps to avoid waste of glue. According to product demands, operators can adjust the glue thickness by a controlling wheel; with the special striped rubber roller it effectively solves the problem of glue splashing.

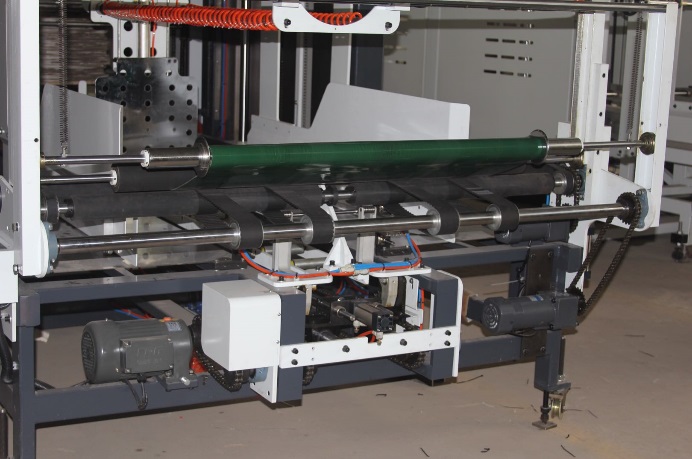

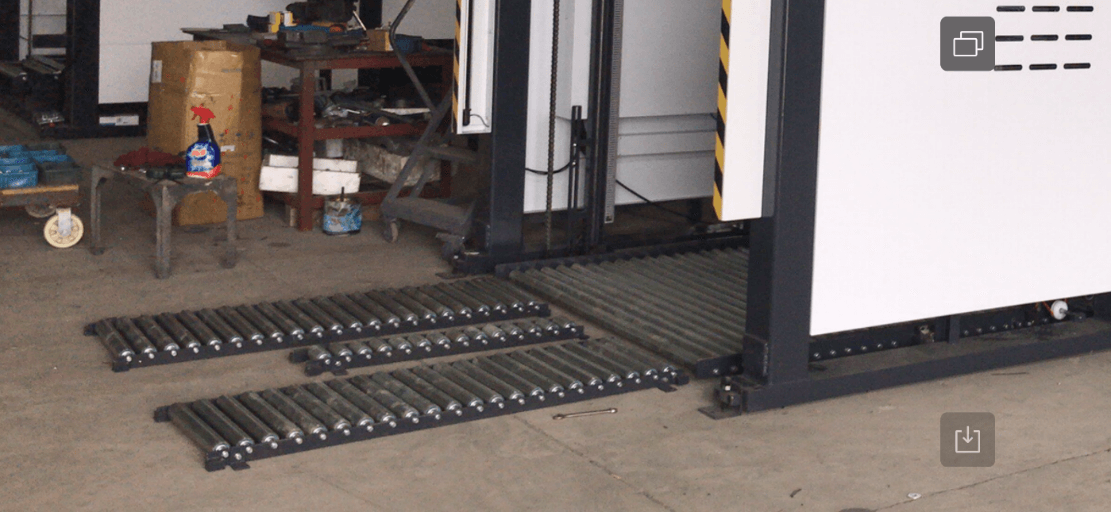

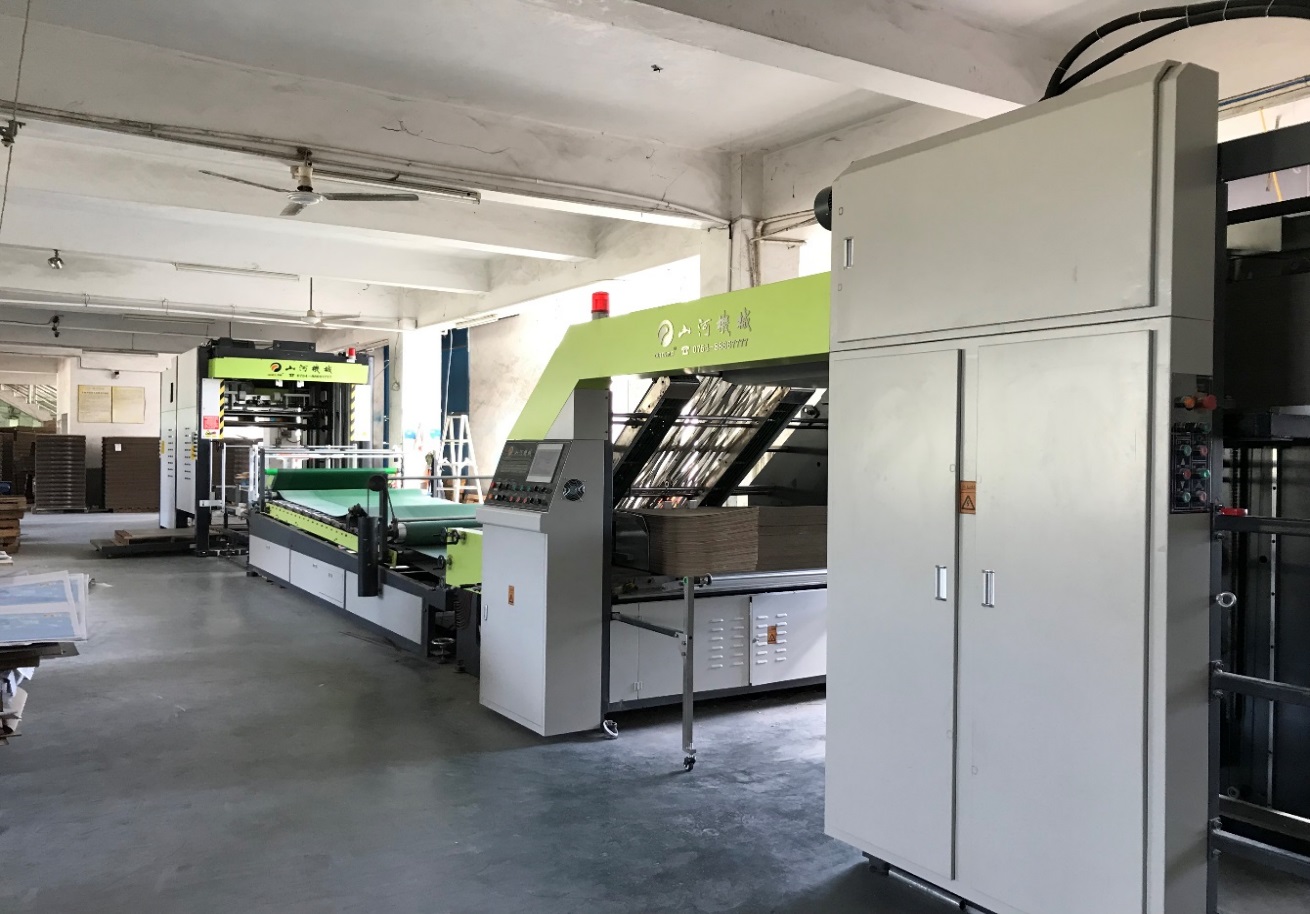

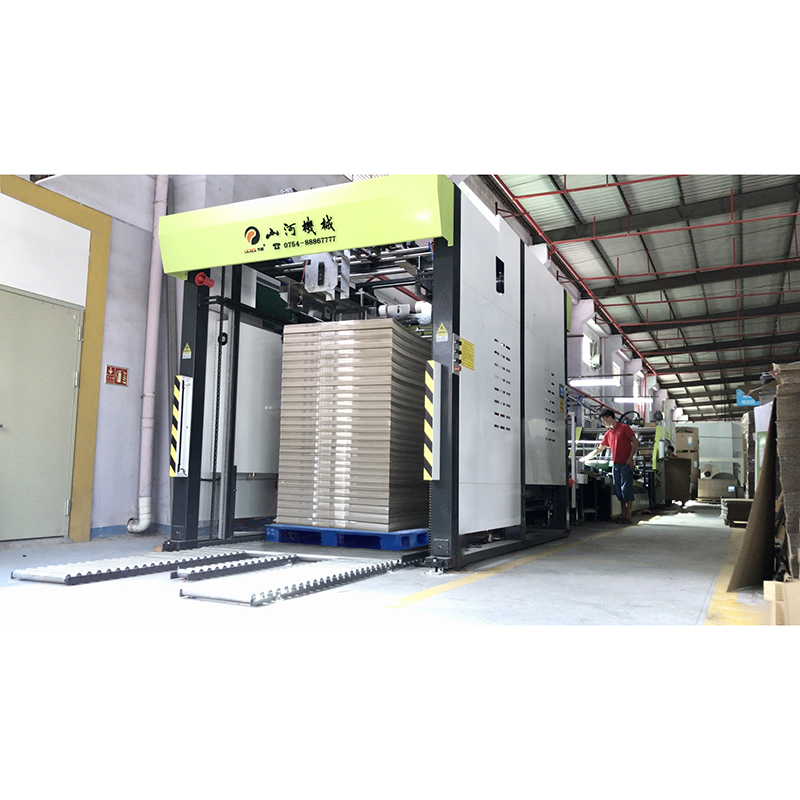

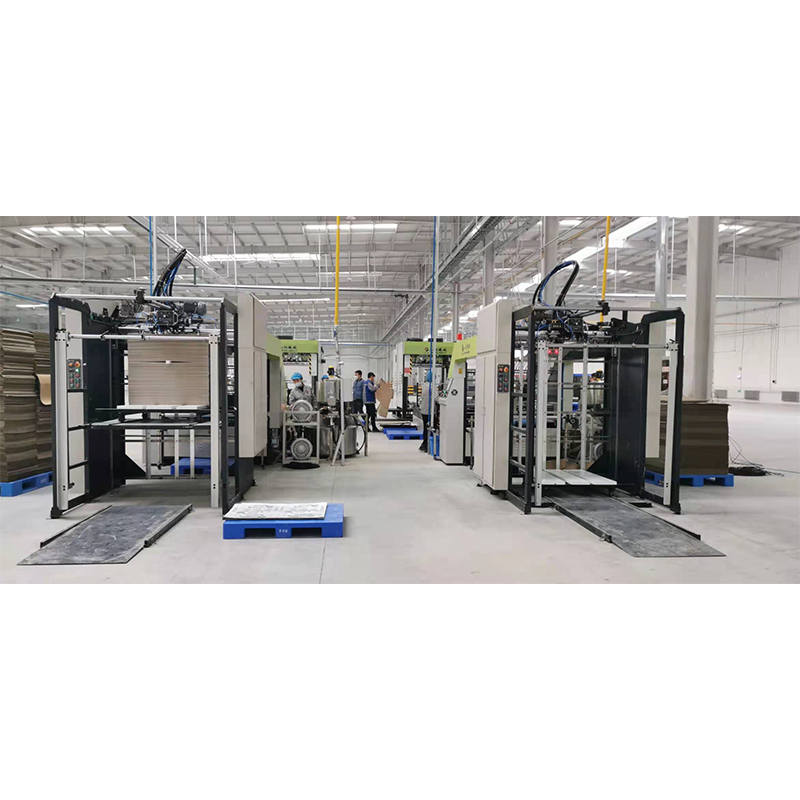

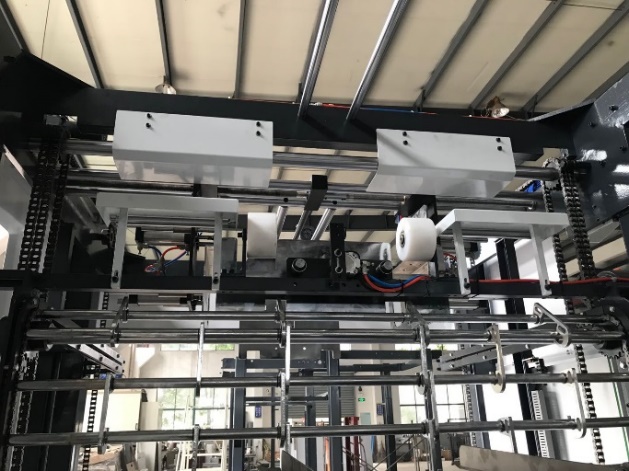

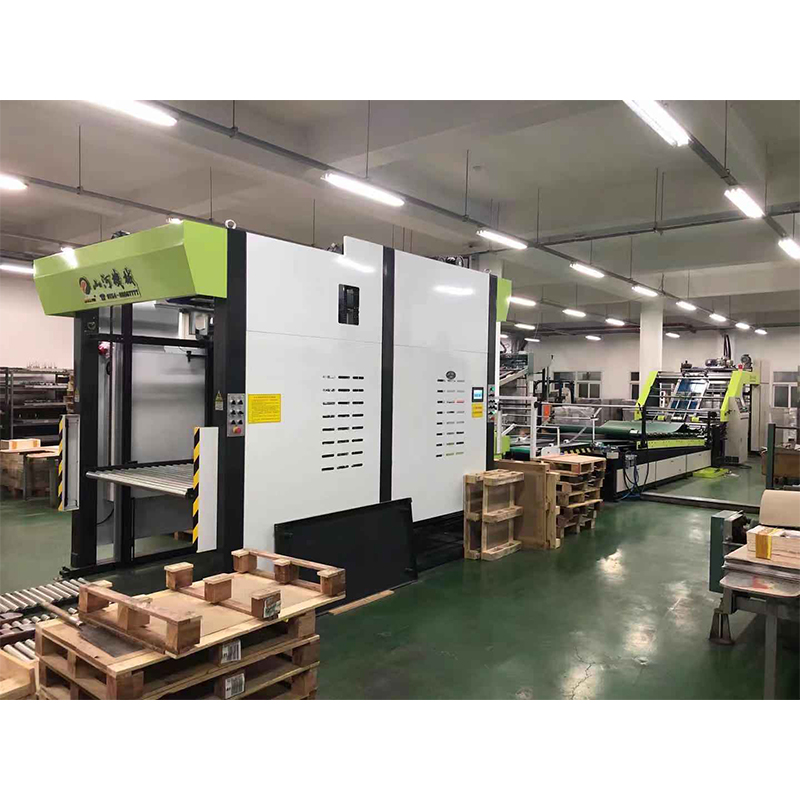

LF-145/165 Vertical Paper Stacker is for connecting with high speed flute laminator to realize automatic paper stacking function. It stacks up the finished lamination product into a pile as per setting quantity. Machine combines the functions of flipping paper intermittently, stacking paper on front side up or back side up and tidy stacking; at the end it can automatic push out the paper pile. Till now, it has helped many printing and packaging companies to deal with the labor shortage problem, optimize the working state, save labor intense and highly increase the total output.
| Job Type | Hourly Output |
|---|---|
| Single E-flute | 9000-14800 p/hr |
| Single B-flute | 8500-11000 p/hr |
| Double E-flute | 9000-10000 p/hr |
| 5 ply BE-flute | 7000-8000 p/hr |
| 5 ply BC-flute | 6000-6500 p/hr |
| PS: stacker’s speed depends on the actual thickness of the board | |
