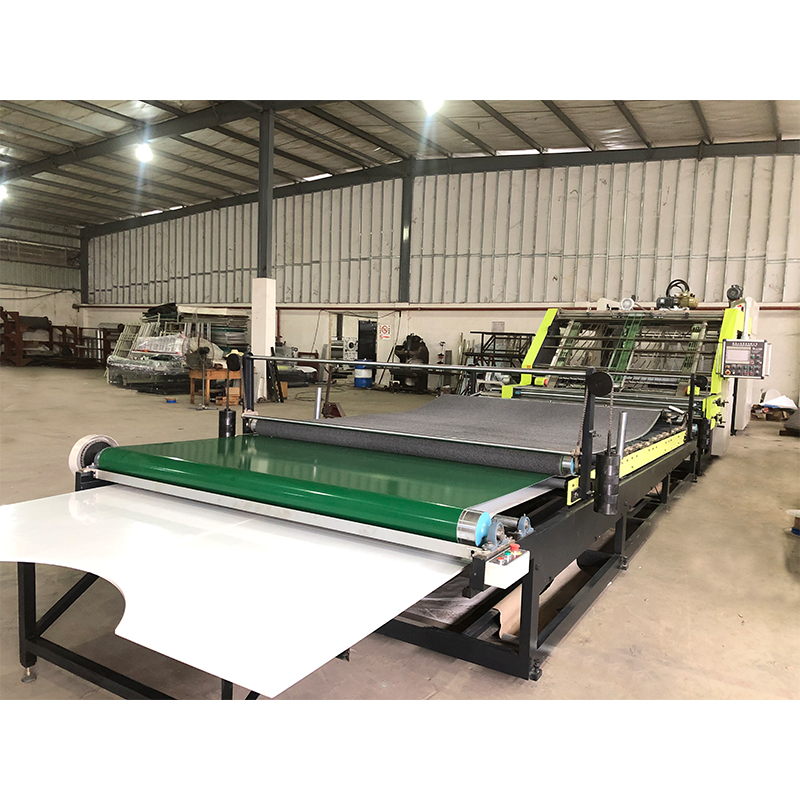

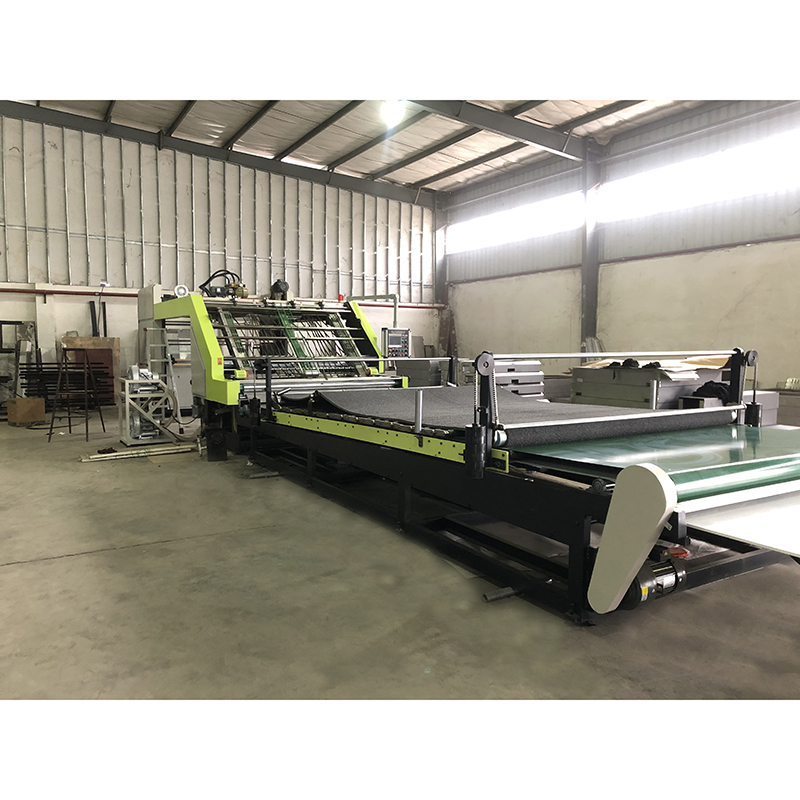

| Max. Sheet Size (mm) | 1450(W) x 1300(L) / 1450(W) x 1450(L) |
| Min. Sheet Size (mm) | 360 x 380 |
| Top Sheet Thickness | 128 - 450 g/㎡ |
| Bottom Sheet Thickness | 0.5 – 10mm (cardboard to cardboard: >250gsm) |

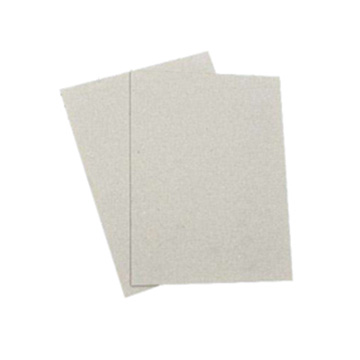

| Suitable Bottom Sheet | Corrugated board (A/B/C/D/E/F/N-flute, 3/4/5/7-ply), grey board, cardboard, KT board, or paper to paper |
| Max. Working Speed | 160m/min (flute length 500mm: max. 16,000 pcs/hr) |
| Lamination Accuracy | ±0.5 - ±1.0 mm |
| Power | 16.6 kw |
| Weight | 7500 kg |
| Dimensions (mm) | 13600(L) x 2200(W) x 2600(H) |
| Max. Sheet Size (mm) | 1700(W) x 1650(L) / 1700(W) x 1450(L) |
| Min. Sheet Size (mm) | 360 x 380 |
| Top Sheet Thickness | 128 - 450 g/㎡ |
| Bottom Sheet Thickness | 0.5 - 10mm (cardboard to cardboard: 250+gsm) |
| Suitable Bottom Sheet | Corrugated board (A/B/C/D/E/F/N-flute, 3/4/5/7-ply), grey board, cardboard, KT board, or paper to paper |
| Max. Working Speed | 160m/min (400x380mm paper: max. 16,000 pcs/hr) |
| Lamination Accuracy | ±0.5 - ±1.0 mm |
| Power | 23.57 kw |
| Weight | 8500 kg |
| Dimensions (mm) | 13600(L) x 2300(W) x 2600(H) |
| Max. Sheet Size (mm) | 2200(W) x 1650(L) |
| Min. Sheet Size (mm) | 600 x 600 / 800 x 600 |
| Top Sheet Thickness | 200 - 450 g/㎡ |
| Bottom Sheet Thickness | Refer to suitable bottom sheet materials |
| Suitable Bottom Sheet | Corrugated board (A/B/C/D/E/F/N-flute, 3/4/5/7-ply), grey board, cardboard, KT board, or paper to paper |
| Max. Working Speed | 130m/min |
| Lamination Accuracy | < ±1.5 mm |
| Power | 27 kw |
| Weight | 10800 kg |
| Dimensions (mm) | 14230(L) x 2777(W) x 2500(H) |

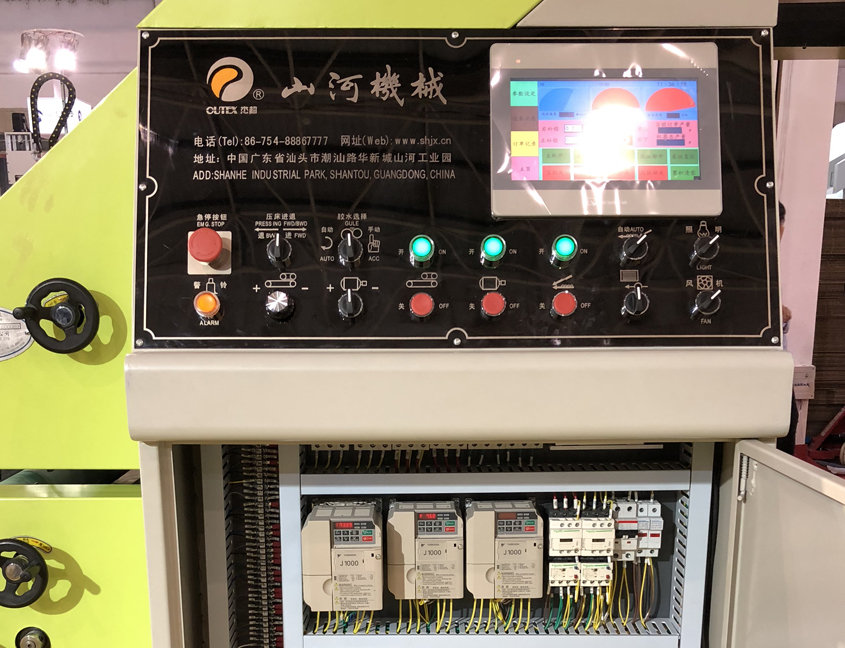

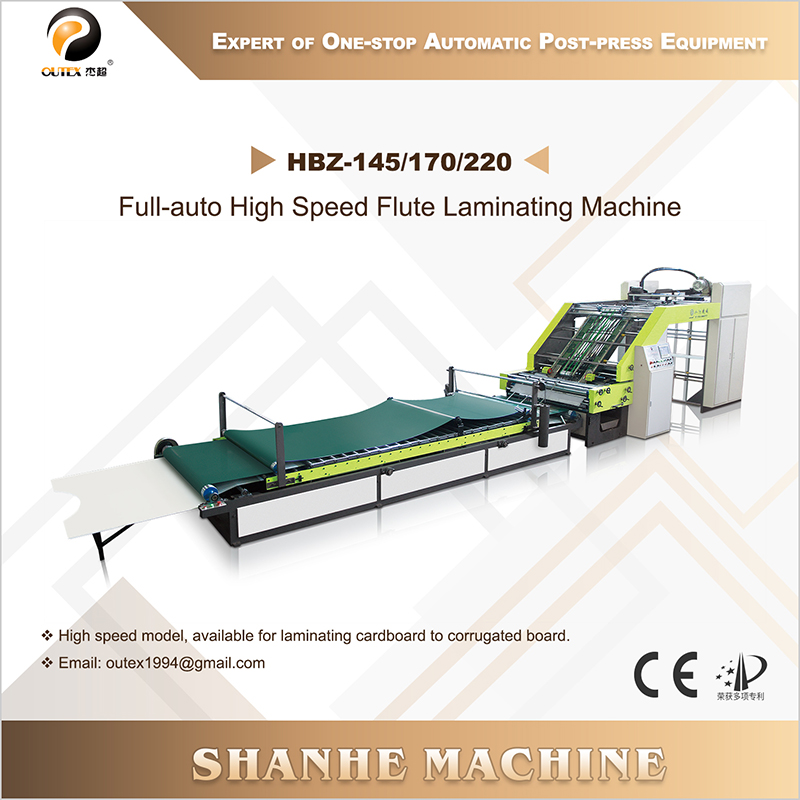

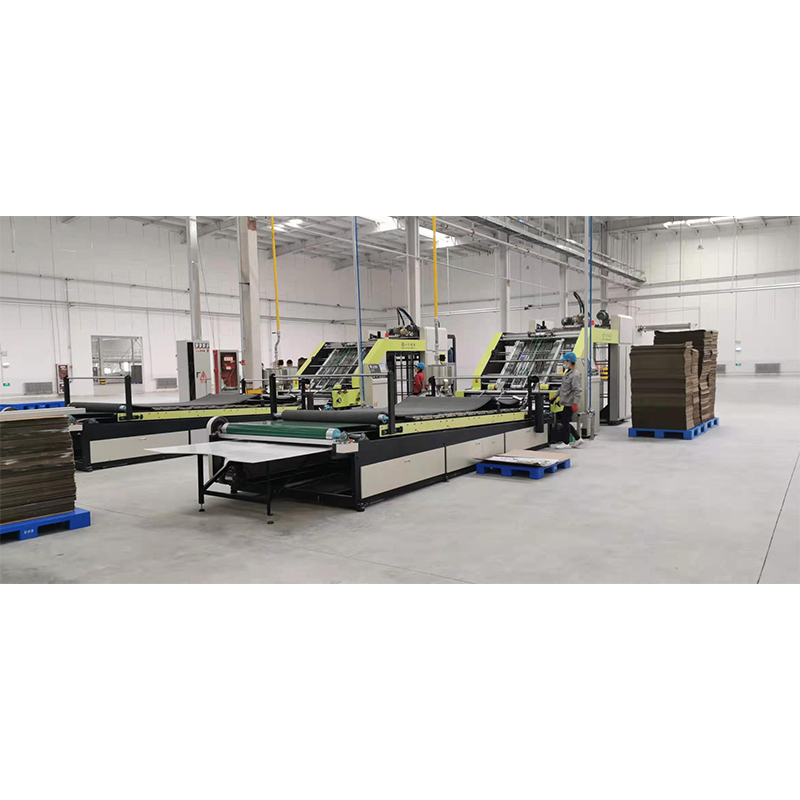

PLC control, touch screen operation, position remote controller and servo motor allow worker to set paper size on the touch screen and adjust the top sheet and bottom sheet’s sending position automatically. The imported sliding rail screw rod makes the positioning precise; at the pressing part there is also a remote controller for adjusting the front and back position. Machine has a memory storage function to remember each product you have saved. HBZ reaches the true automation with full functionality, low consumption, easy operation and strong adaptability.

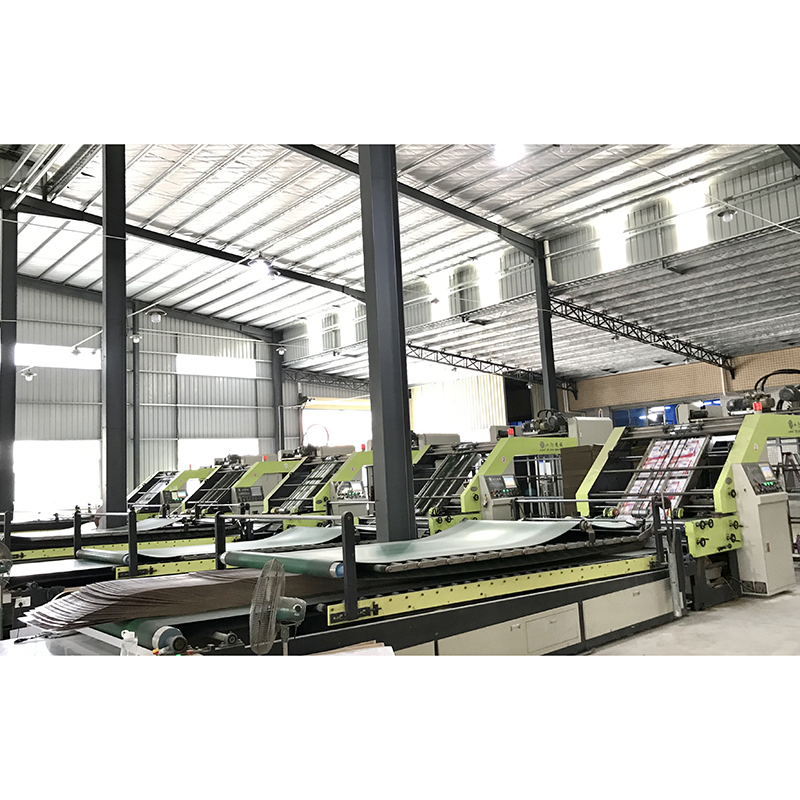

Shanhe Machine positions HBZ machine upon the European professional industry. The whole machine uses international well-known brands, which guarantee machine operation’s stability and durability. PLC integrated control plus our self-compiled program realize the mechatronics manipulation to maximally simplify the operation steps and save labor cost.

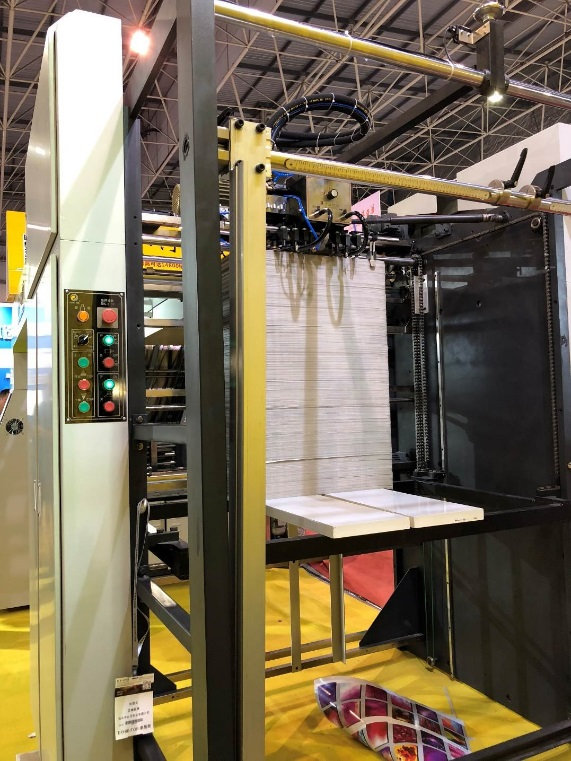

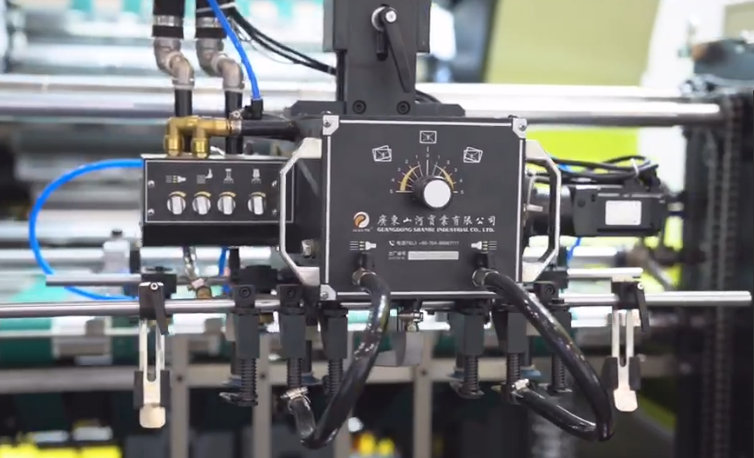

It’s Guangdong Shanhe Industrial Co., Ltd.’s patented owned product. A high-end printer-used feeder and a strengthened paper sending device with four suction nozzles and four feeding nozzles ensure precise and smooth paper conveying. A portal frame external type pre-loading platform is equipped for setting aside time and space for preloading paper sheets, which is safe and reliable, completely meets the requirements of high efficient running.

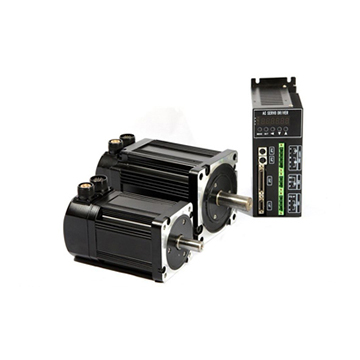

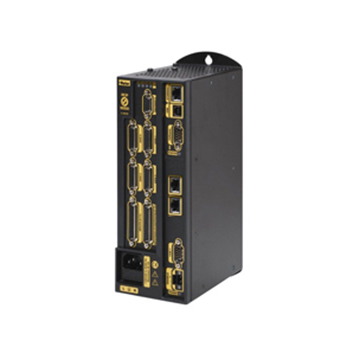

Servo motor drives the suction belts to send bottom paper which includes cardboard, grey board and 3-ply, 4-ply, 5-ply and 7-ply corrugated board with A/B/C/D/E/F/N-flute. The sending is smooth and precise. With strong suction design, machine can send paper with thickness between 250-1100g/㎡. HBZ-170 bottom sheet feeding part uses dual-vortex pump with dual-solenoid valve control, aiming at 1100+mm width paper, can start a second air pump to increase air suction volume, function better on conveying warping and thick corrugation board.

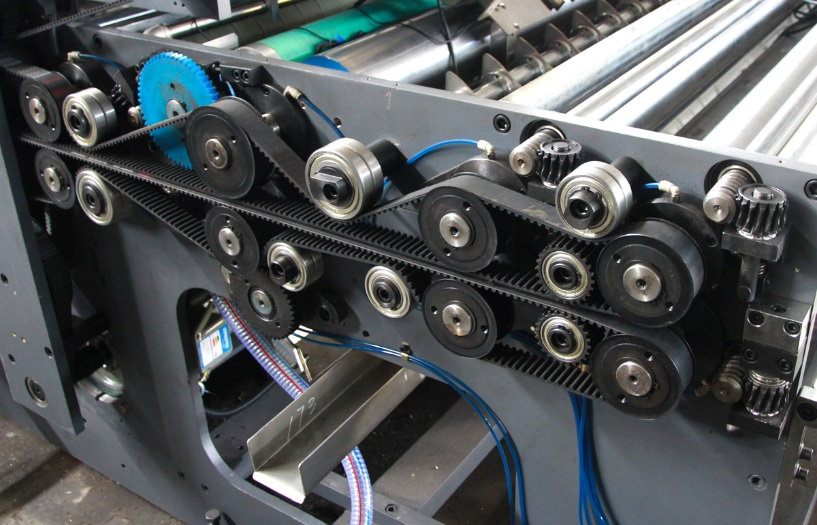

We use imported timing belts instead of the traditional wheel chain to solve the problem of inaccurate lamination between top sheet and bottom sheet due to the worn-out chain and control the lamination error within ±1.5mm, thus fulfill the perfect lamination.

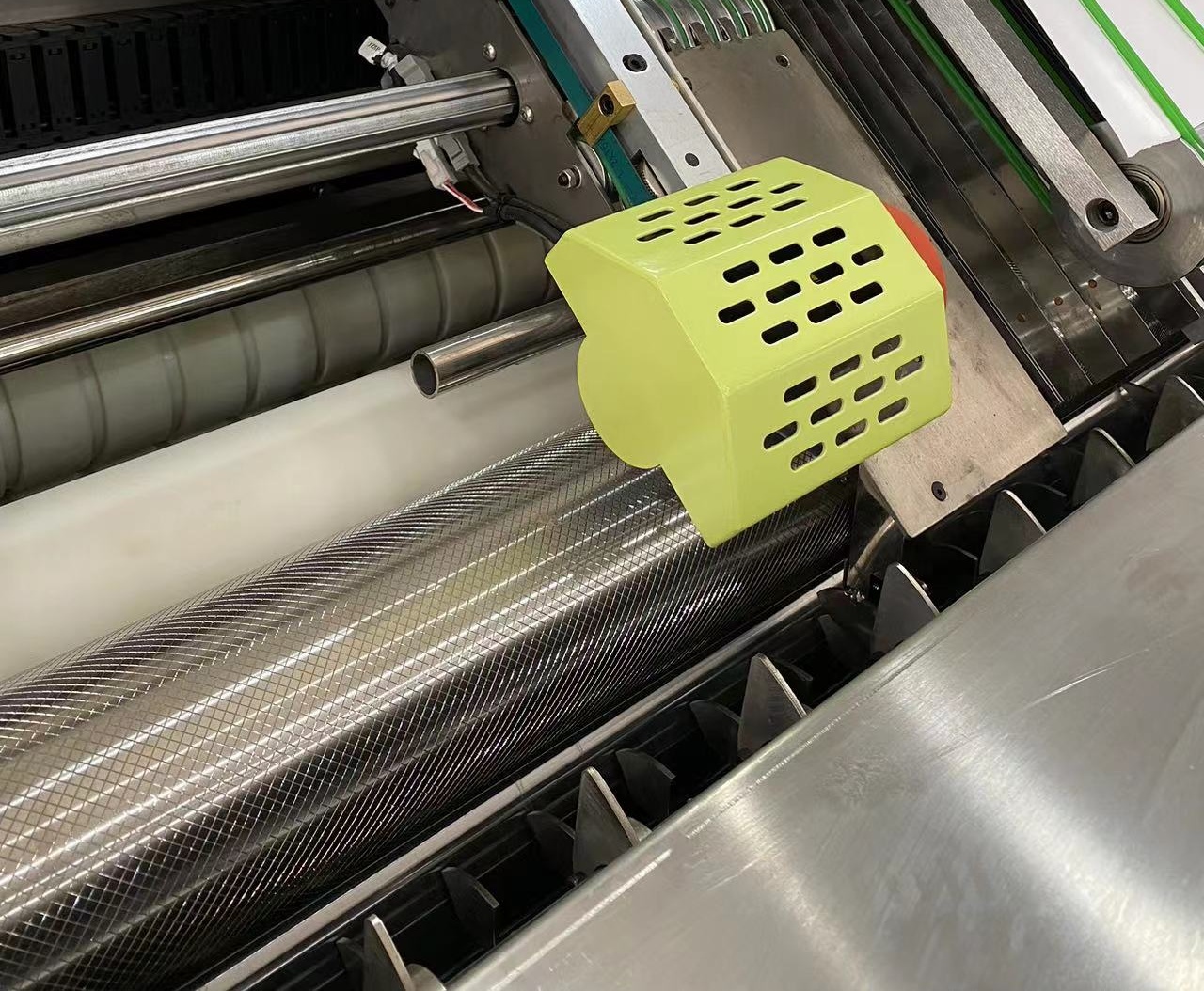

In the high speed operation, in order to coat glue evenly, Shanhe Machine designs a coating part with a special coating roller and a glue-splash-proof device to resolve the glue splashing problem. Full automatic adhesive supplementary and recycling device together helps to avoid waste of glue. According to product demands, operators can adjust the glue thickness by a controlling wheel; with the special striped rubber roller it effectively solves the problem of glue splashing.

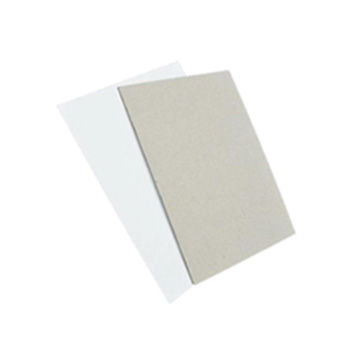

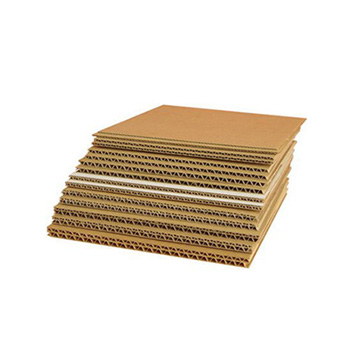

The HBZ series supports a wide range of materials including corrugated boards (A, B, C, D, E, F, N-flute, 3-ply, 4-ply, 5-ply, and 7-ply), grey board, cardboard, KT board, as well as paper-to-paper lamination.
The HBZ-145 and HBZ-170 can reach a maximum working speed of 160 m/min (up to 16,000 pcs/hr depending on sheet dimensions), while the HBZ-220 operates at a maximum working speed of 130 m/min.
The lamination accuracy is tightly controlled between ±0.5mm and ±1.0mm for HBZ-145 and HBZ-170 models, and stays within < ±1.5mm for the HBZ-220 model, utilizing imported timing belts to eliminate inaccuracies caused by chain wear.
The machine integrates renowned global brands including Parker (USA), P+F (Germany), Siemens (Germany), Omron (Japan), Yaskawa (Japan), and Schneider (France) to guarantee stability, durability, and precise control.
Shanhe Machine features a coating unit with a specialized rhombic/striped rubber coating roller, a glue-splash-proof structure, and an automatic adhesive supplementary & recycling system to ensure uniform glue application without splashing or waste.
Yes, the PLC integrated system features a memory storage function that allows operators to save settings for each product, enabling fast automated setup for recurring orders via the touch screen HMI.
