CE Certification QHZ-1650 Full-auto High Speed Folder Gluer Supplier, Factories

1 / 1

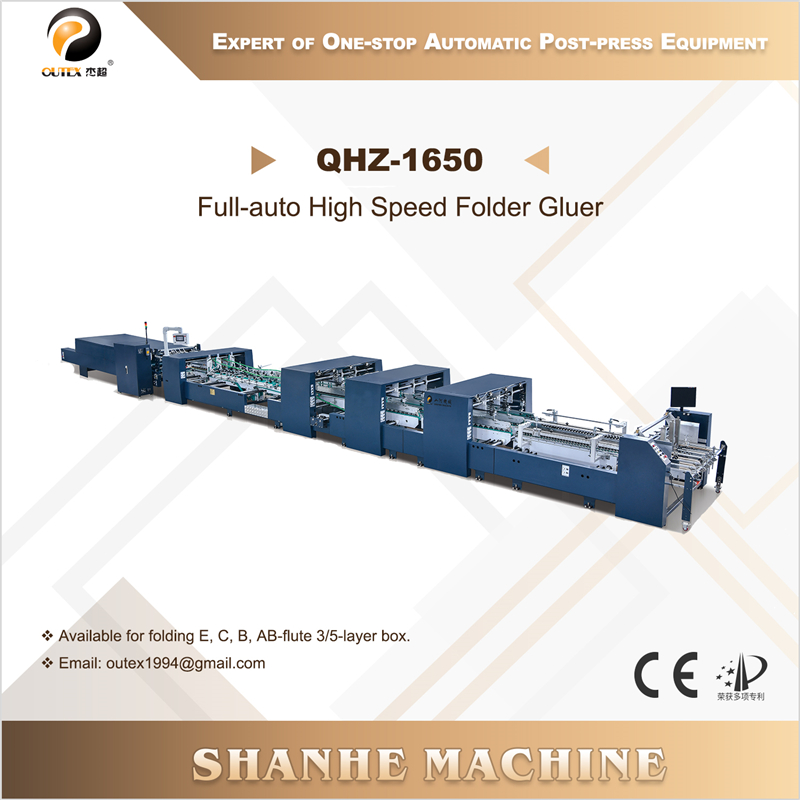

CE Certification QHZ-1650 Full-auto High Speed Folder Gluer Supplier, Factories

QHZ-1650 is our latest enhanced model of folder gluer. Basically it applies to process cosmetic box, medicine box, other cardboard box or E/C/B/AB-flute corrugation box. It is suitable for 2-fold, side-sticking, 4-fold with lock-bottom (4-corner and 6-corner box are optional).

Send Inquiry

Product Description

QHZ-1650
Max. paper thickness	duplex box 200-1200g/㎡, E/C/B/AB-Flute (Corrugated)
Max. speed(m/min)	300
Machine size(mm)	19500(L) ×2250(W) ×1600(H)
Weight(kg)	12000
Power(kw)	28
Rating	380V, 3P, 50Hz

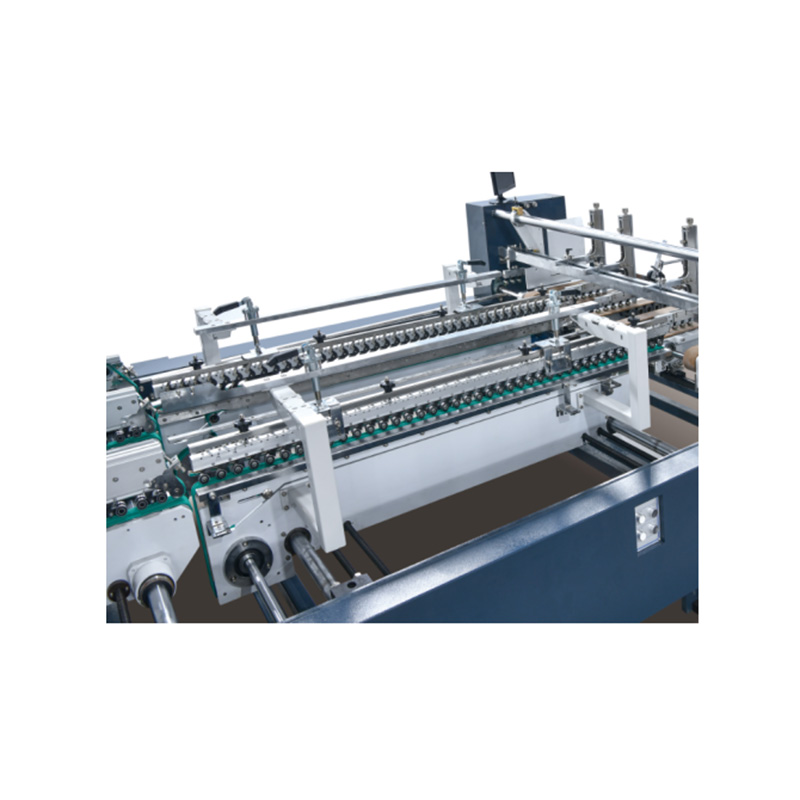

Auto correct the paper to accurate feeding, avoiding the paper going to sides.
Equipped with a set of alignment device (left and right).
Pressure adjustment adopt linear guide device to adjust the height accurately.
Auto motorized adjustment system with wireless remote control.
Inner courier can move automatically by electric.

Feeding belt adopt single carrier adjustment.
Feeding carrier adopt linear slider and guides transmission.
Suction feeding system device.
Vibration motor for smooth and consistent feeding.
Feeding side guides with supporting bars for quick setup.
Independent frequency conversion motor drive linked with the host, can also be adjusted individually; More accurate feeding the paper to achieve the highest productivity.
Meet variety of complex boxes adjustments.

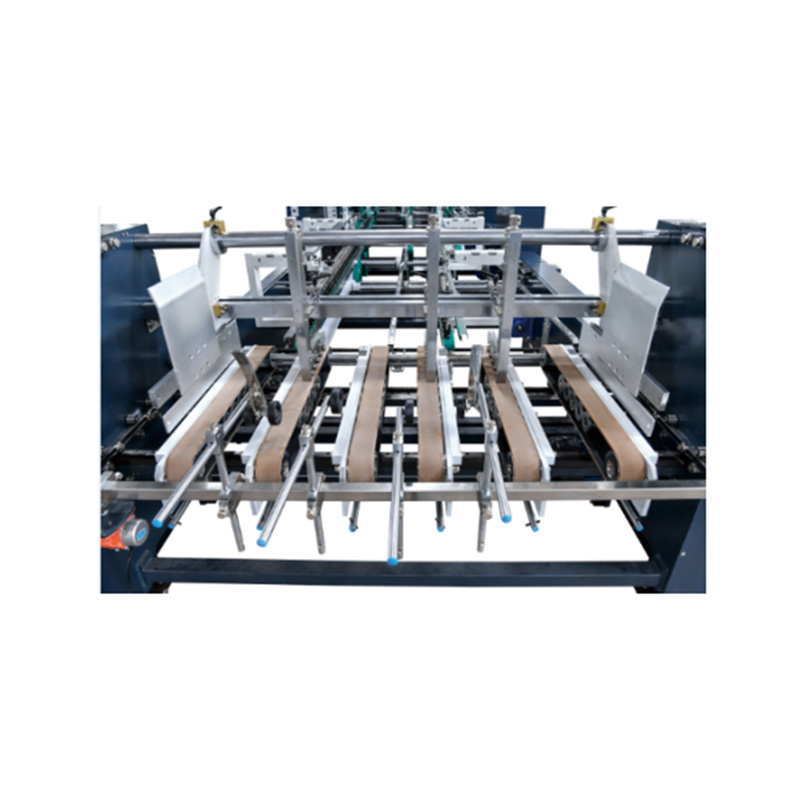

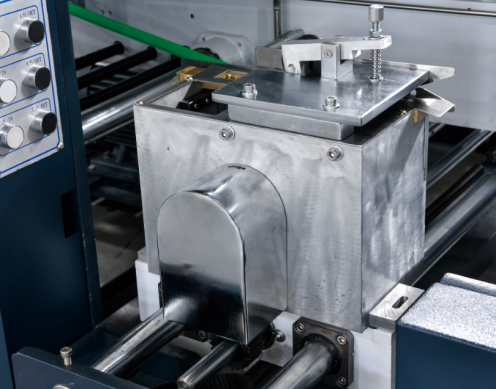

Long pre-folding device, 1st folding line is 180 °, 3rd folding line has 135°. It is use for easy opening boxes.
Three inner courier more suitable for more different boxes with high speed and stable.
Multifunctional long design with sectional inner carriers, to meet various odd-shaped boxes installation.
Sectional upper-carrier can be telescopically adjusted to meet wide range box.
Equipped with creasing line function.

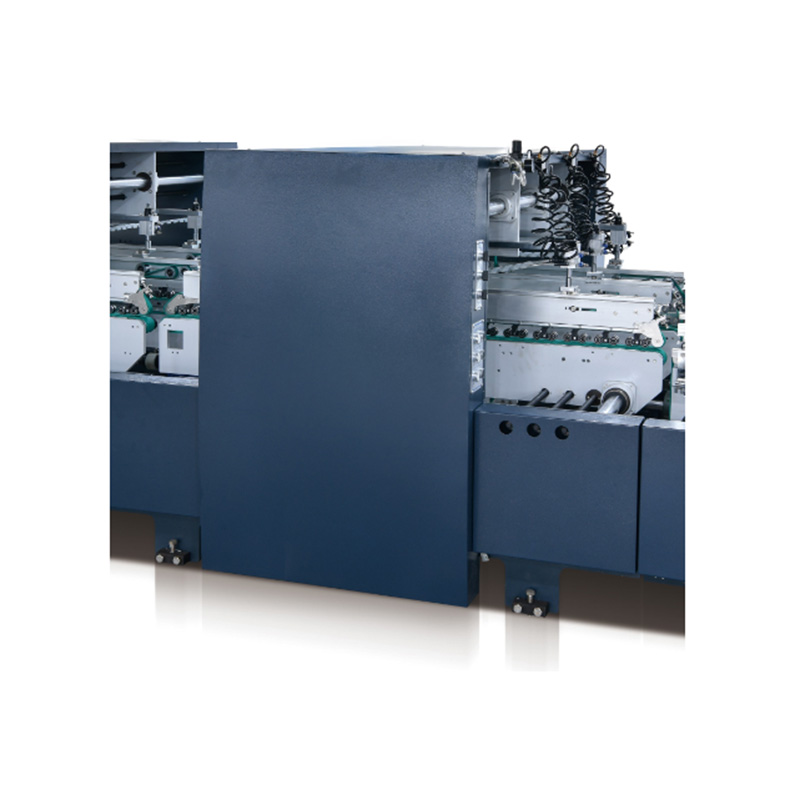

Lower gluing tank both at left and right.
Multi-layer sealing anti-leaking device is used in shaft core.
Stainless steel gluing wheel is used.
Stainless steel lock bottom device: 10pcs.
Modual design for bottom lock accessories, easy for adjustment.

Equip with two larger mechanical lower gluing device(left and right), special design avoid glue splashing at high speed production and easy removal for clear and maintenance.
Double glue wheel design can adjust the amount of glue separately, more convenient for different size of boxes.
Special long folding section(5meters folding section), corrugated boxes can be well folded and formed in this section.
Creasing wheel more suitable for corrugated boxes.
Inner couriers are adjusted by motors.
Rail-guide for belts is used to avoid belts going to sides.
To meet various kinds of works, and precisely for blanks.
Smooth and accurate folding of 2nd and 4th creases.
Germany Forbo/Italy Chiorino folding belts.

Straight Line					Crash Lock Bottom
	Size	Min(mm)	Max(mm)			Size		Min(mm)	Max(mm)
	C	280	1650			C		320	1500
	E	150	120			E		180	1200
	L	120	810			L		200	800
4 Corner Boxes					6 Corner Boxes
	Size	Min(mm)	Max(mm)			Size		Min(mm)	Max(mm)
	C	230	1400			C		400	1300
	E	150	1200			E		150	1200
	H	40	150			H		40	150

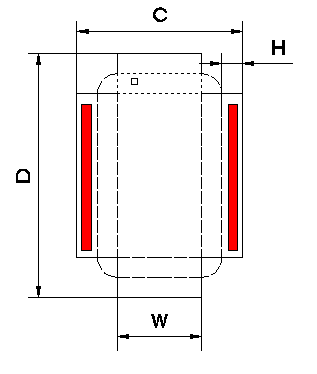

Double Wall(optional)
	Size			Min(mm)			Max(mm)
	C			500			1650
	D			200			1200
	W			90			2000
	H			40			180

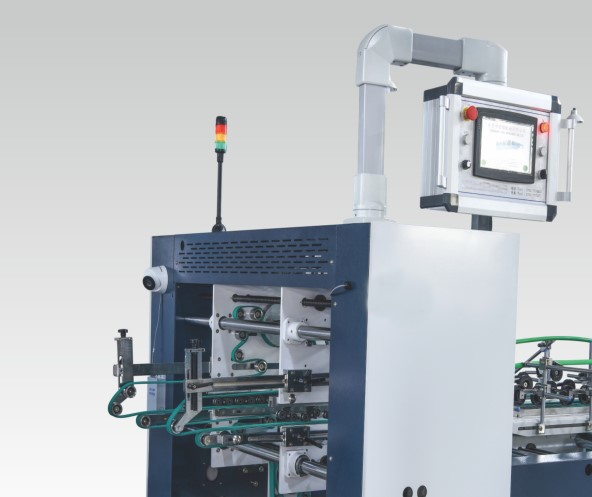

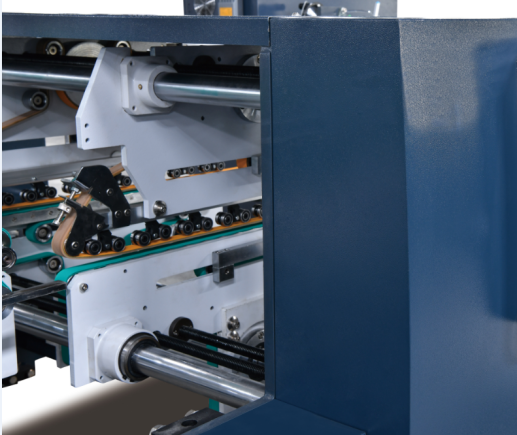

The automatic motorized adjustment system is smart and they can save your adjusting time when you have different boxes.

Taiwan FATEK sensor and counter.
Pneumatic kicker for counting.
Belts Specification: δ4*30*2700=2pcs; δ4*30*2765=2pcs

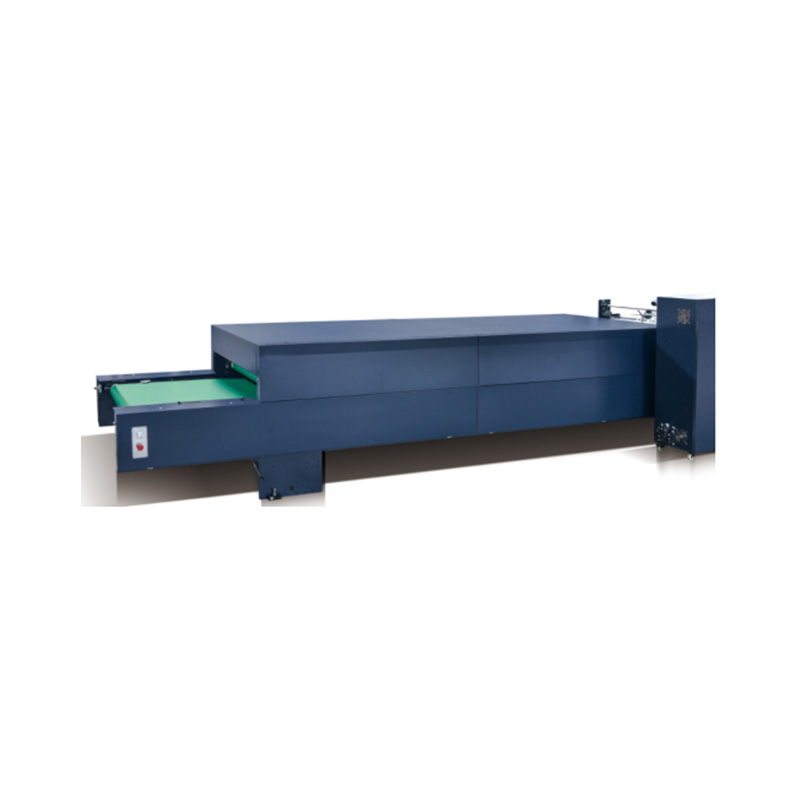

More Longer conveyor design.
Pneumatic control.
The upper section can be moved front and back.
The two belts are in driving system, so they could be in more synchronous running.

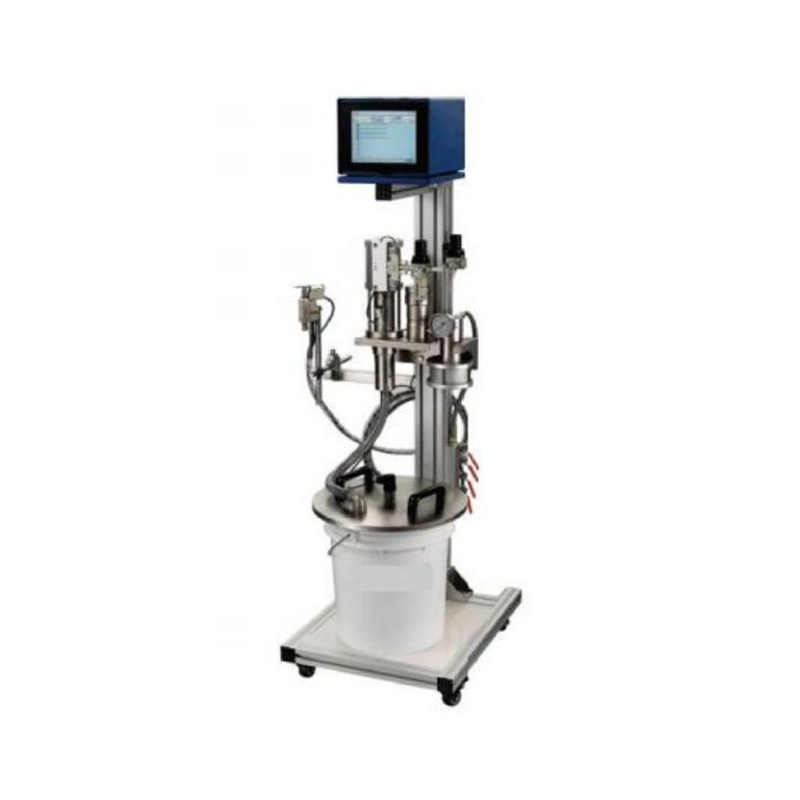

1 set of Glue dispensing Gun.
4 head controller.
Equipped with two guns(cold glue guns), convenient in the production for lock bottom boxes, gluing quickly and accurately.
4/6 corner box ok

Inverter and low-voltage electrical components: Schneider.
Motor: SIEMENS, China.
PLC control system: FATEK, Taiwan, China.
Main motor: 15KW; total power: 28KW, (standard).

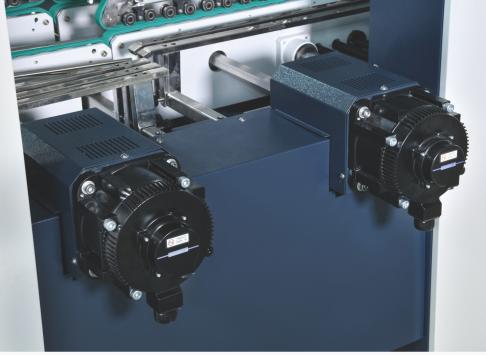

Independent electrical cabinet is used.

Frequently Asked Questions

What types of boxes can the QHZ-1650 model process?

The QHZ-1650 is designed to process Straight Line, Crash Lock Bottom, 4 Corner Boxes, 6 Corner Boxes, and optional Double Wall box styles.

What paper specifications and thickness can this machine handle?

It handles duplex box materials ranging from 200 to 1200g/㎡, as well as corrugated flutes including E, C, B, and AB-Flute.

What electrical brand components are integrated into the QHZ-1650?

The machine utilizes SIEMENS motors, Schneider inverters and low-voltage electrical components, alongside a FATEK PLC control system and FATEK sensors.

What is the maximum operating speed of the QHZ-1650 folder gluer?

The machine reaches a maximum operating speed of up to 300 meters per minute (m/min).

How does the automatic adjustment system improve operational efficiency?

It features a smart motorized adjustment system with wireless remote control, allowing operators to quickly adjust carriers for different box dimensions and significantly reduce setup time.

What gluing systems are available on this machine?

The machine features lower gluing tanks on both left and right sides, double glue wheel design, stainless steel gluing wheels, and optional cold glue dispensing guns (1 set with 4-head controller).
