CE Certification QHZ-2300/2600/3000/3300/4500 Automatic High Speed AB-Piece Folder Gluer Factory, Factories

1 / 1

CE Certification QHZ-2300/2600/3000/3300/4500 Automatic High Speed AB-Piece Folder Gluer Factory, Factories

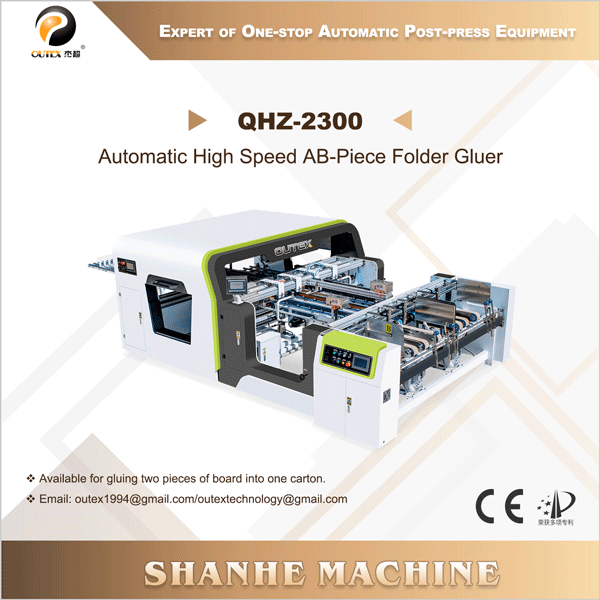

This machine is our latest enhanced model of Automatic High Speed AB-Piece Folder Gluer. Basically it applies to process A/B/C/E/BE/F/H/EE -flute corrugation box. It’s available for gluing two pieces of board into one carton.

Send Inquiry

Product Description

Technical Specifications

Model	QHZ-2300	QHZ-2600	QHZ-3000	QHZ-3300	QHZ-4500
Max. Feeding Paper Size (Single)	1150x1150mm	1300x1200mm	1500x1200mm	1650x1300mm	2250x1300mm
Min. Feeding Paper Size (Single)	450x320mm	450x350mm	450x320mm	450x320mm	550x450mm
Paper Material	A/B/C/E/BE/F/H/EE corrugated board
Max. Height of Stack	400mm	400mm	400mm	400mm	400mm
Main Motor Power	1.5kw	1.5kw	1.5kw	1.5kw	1.5kw
Total Power	14kw	14kw	14kw	16kw	16kw
Total Weight	2.5T	3T	4T	4.5T	4.5T
Machine Size	2850x3300x1400mm	2850x3600x1400mm	2850x4000x1400mm	2850x4300x1400mm	2850x5500x1400mm
Machine Size	(Conveyor belt and press table not included)

Key Performance Features

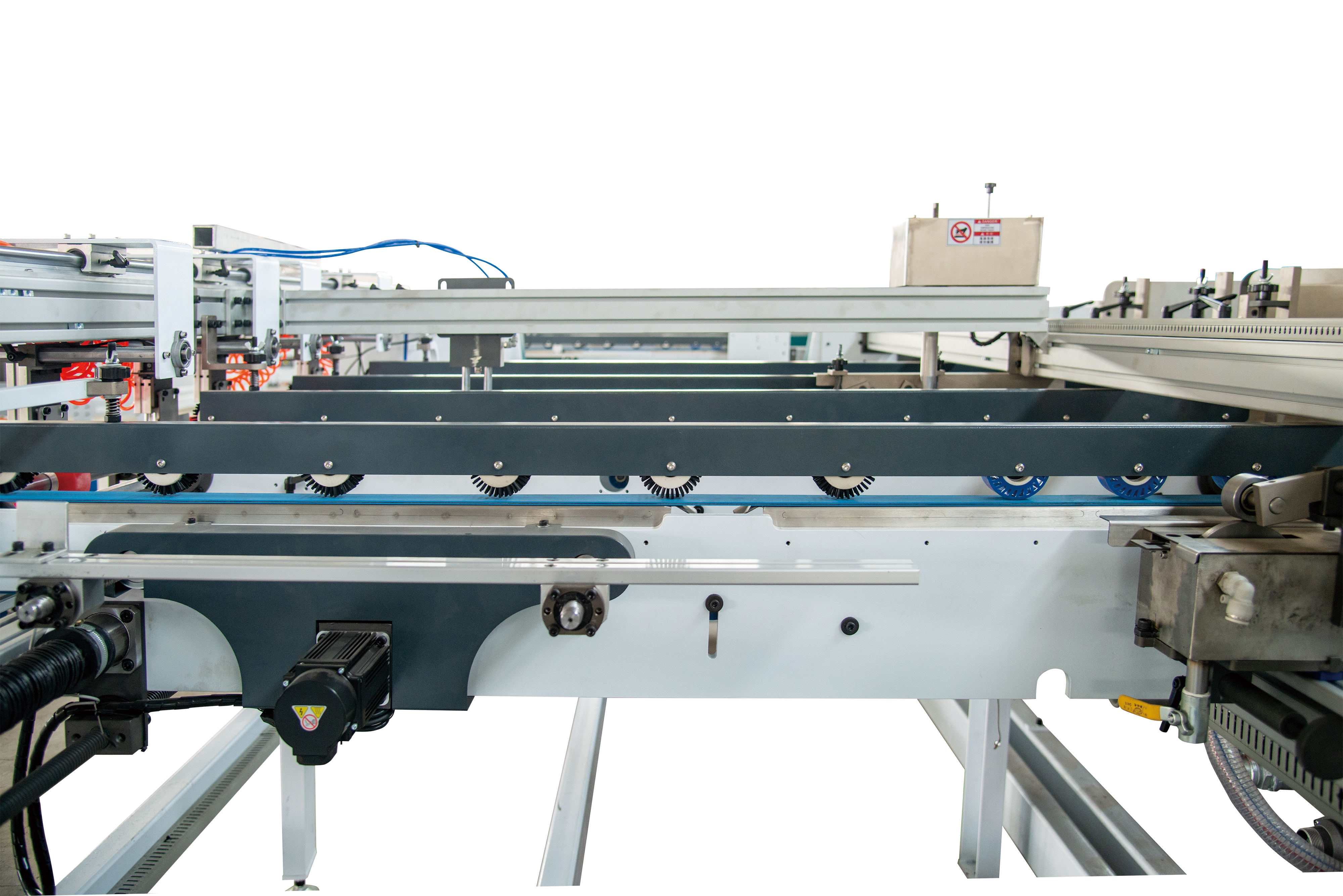

This machine adopts sun wheel and bristle wheel press paper to lower the noise greatly, paper conveying mode can be chosen according to different products to make sure no scraping, servo motor system positioning can make gluemargin in same size and with high precision.

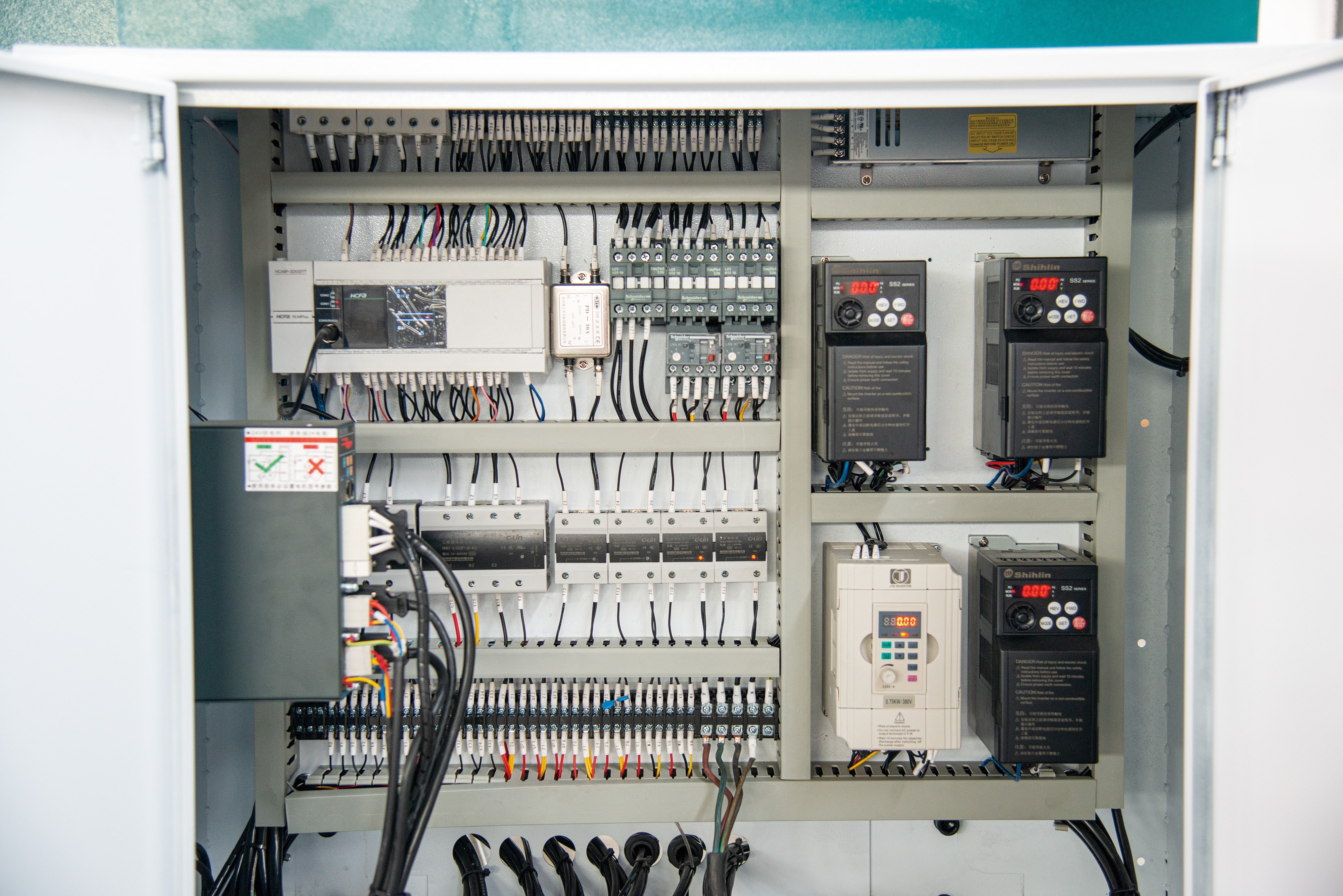

This machine adopts imported electrical parts to make sure stable running and safe. The electrical system adopts PLC computer program controller, man-machine interface touch screen and other advanced control devices.

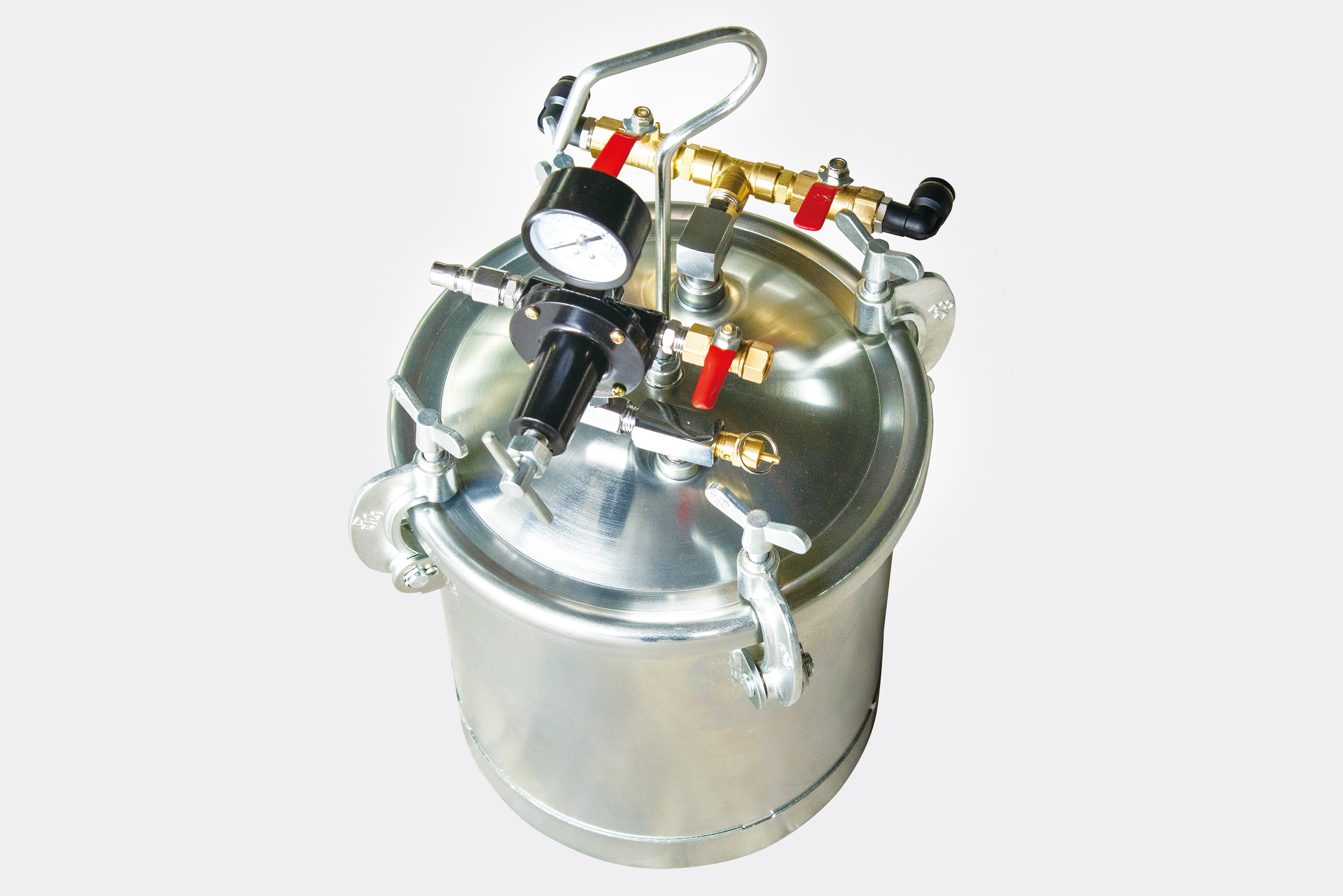

Use pressure barrels and advanced gluing system can realize automatic gluing without manual management, making the whole machine more convenient to operate.

Product Gallery

Frequently Asked Questions

What types of corrugated boards are compatible with the QHZ machine series?

The QHZ series is highly versatile and capable of processing A, B, C, E, BE, F, H, and EE corrugated boards.

How does the machine prevent noise and paper surface scraping?

It utilizes a sun wheel and bristle wheel system to press paper, significantly reducing operational noise. Additionally, flexible paper conveying modes can be chosen based on product requirements to prevent surface scraping.

What controls and electrical features ensure operational safety and stability?

The machine incorporates imported electrical components, a PLC computer program controller, and a user-friendly man-machine interface touch screen to deliver reliable, safe, and stable performance.

Does the gluing process require manual management?

No, manual management is not required. The machine uses pressure barrels alongside an advanced automatic gluing system for convenient, automated operation.

How accurate is the glue margin positioning?

Thanks to the integrated servo motor system positioning, the machine ensures uniform glue margin sizes with high precision.

What is the maximum stacking height for paper on these models?

Across all QHZ models (QHZ-2300 to QHZ-4500), the maximum stack height for paper feeding is 400mm.
