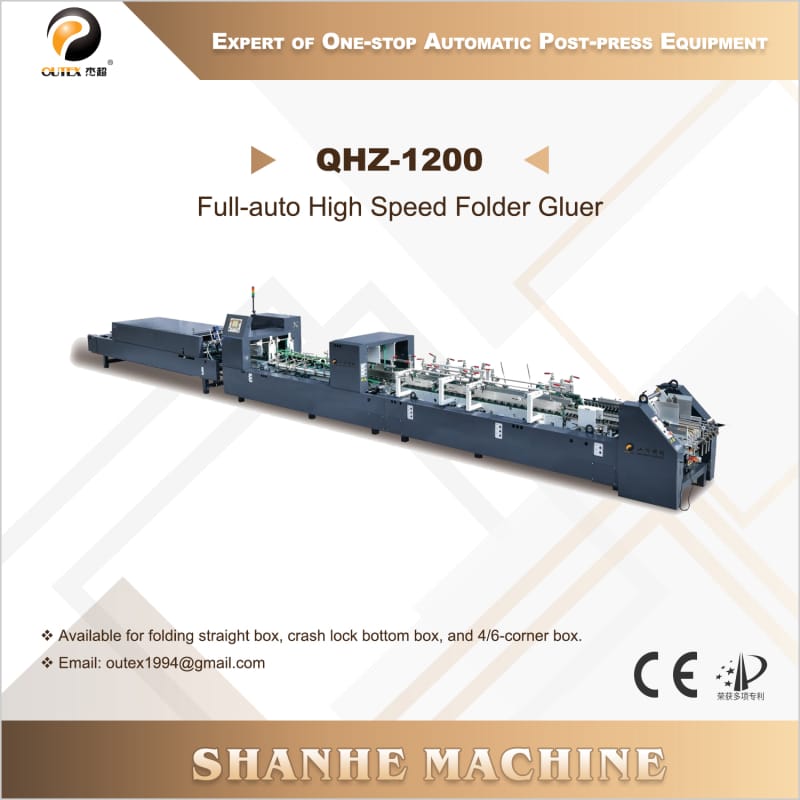

High-Quality QHZ-1200 Full-auto High Speed Folder Gluer Supplier, Companies

QHZ-1200 is our latest enhanced model of folder gluer. Basically it applies to process cosmetic box, medicine box, other cardboard box or E/C/B/AB-flute corrugation box. It is suitable for 2-fold, side-sticking, 4-fold with lock-bottom (4-corner and 6-corner box are optional).

Send Inquiry

Product Description

QHZ-1200 Specifications

Paper thickness (g/㎡)	200—800
Material	Cardboard, B.C.E.F.N corrugated. It is suitable for pasting the first folding line of 180º, the third folding line of 135º, and the medicine box, wine box, cosmetic box and other pre-folding boxes that are easier to open and form on the automatic packaging line.
Box type (mm)	One side: max: W×L: 800×1180 \| min: 200×100 Lock bottom: max: W×L: 800×1180 \| min: 210×120 4 corner: max: W×L: 800×1000 \| min: 220×160 6 corner: max: W×L: 750×780 \| min: 350×180
Max. speed (m/min)	300
Size (mm)	15500 (L) × 1850 (W) × 1500 (H)
Weight (ton)	About 7.5
Power (kw)	16

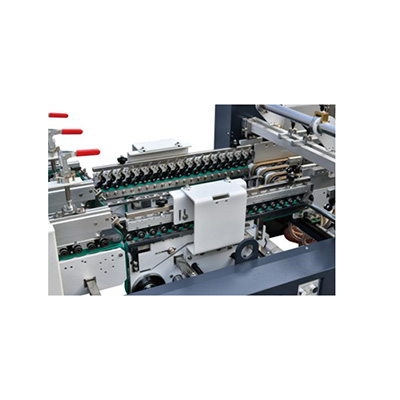

Automatic register section to correct the paper feeding, avoid the paper going to sides.
Equipped with a set of register device (left and right).
Equipped with imported Germany Siegling or Italy Chiorino plane folding belt.

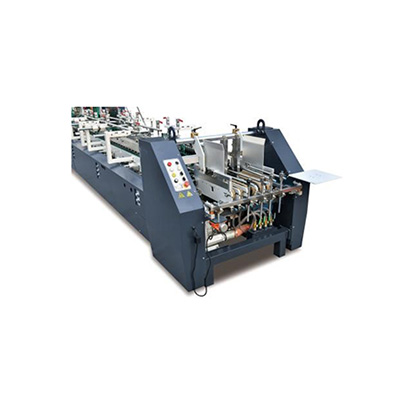

One set of high-strength special vibration motor (function: to make paper feeding more smooth and stable through vibration).
Nitta feeding belts: 7pcs (specification: 8×25×1207mm).
Equipped with 2 sets of feeding knives and 2 sets of left and right paper stoppers.
Equipped with Suction feeding system.
Independent motor drive.
Equipped with vibrator motor.
Individual belt adjustment.
The paper output belt is adjusted by the linear guide rail slider, with high precision and strong flexibility.
Long re-folding device, 1st folding line is 180°, 3rd folding line has 135°. It is use for easy opening boxes.
Equipped with imported German Siegling or Italian Chiorino plane folding belt.
Synchronous belt drive (EP, American).

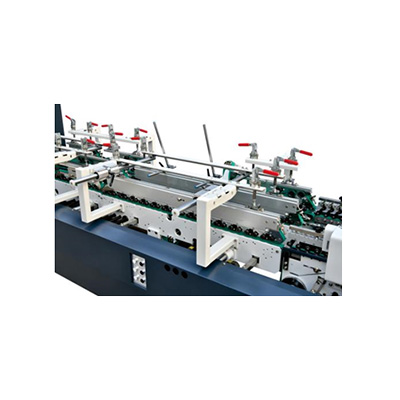

Modular design method, using special aluminum design to improve the installation and conversion time of accessories.
Equipped with 4 sets of highly elastic spring hook seats.
Equipped with imported German Siegling or Italian Chiorino plane folding belt.
Synchronous belt drive (EP, American).

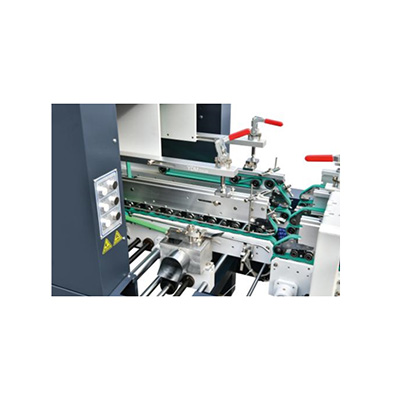

Equip with two larger mechanical lower gluing device (left and right), special design avoid glue splashing at high speed production and easy removal for clear and maintenance.

It can meet the multi-style adjustment operation, which is fast and convenient, so that the box can be closed accurately.
Equipped with 2 sets of left and right folding knives.
Equipped with imported German Siegling or Italian Chiorino plane folding belt.
Synchronous belt drive (EP, American).

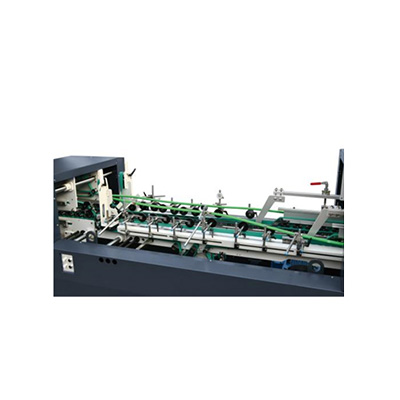

Taiwan FATEK sensor and counter.
Pneumatic kicker for counting.
Equipped with pneumatic mechanical kick plate identification device.

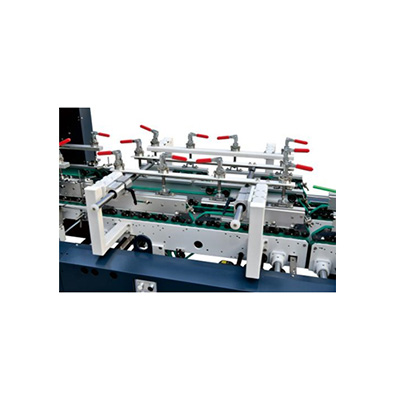

PLC computer control, man-machine interface.
Equipped with imported German Siegling or Italian Chiorino plane folding belt.
Synchronous belt drive (EP, American).

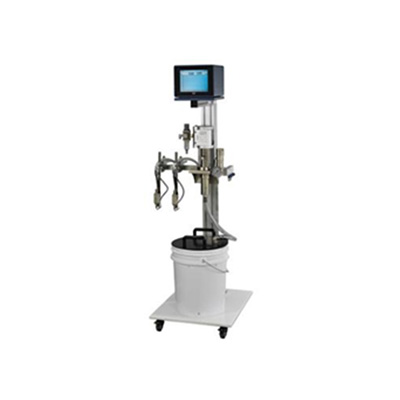

4 CONTROL, 3 guns equipped

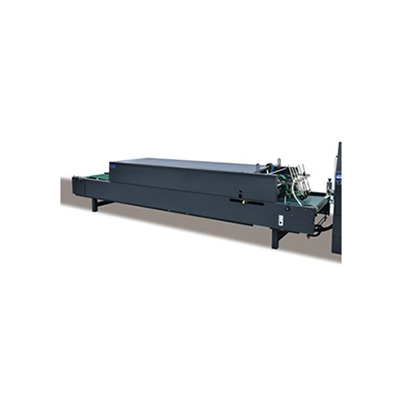

Transmission frequency conversion speed regulation, proportional linkage with the host.
Air pressure rear machine can adjust the pressure independently, and the carton can be moderately pressurized to make the product more perfect.
Long conveyor design that the product is not easy to be glued.
The two belts are in driving system, so they could be in more synchronous running.
With snap function.

4/6 points ok

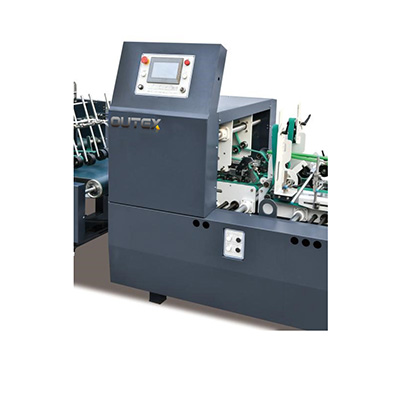

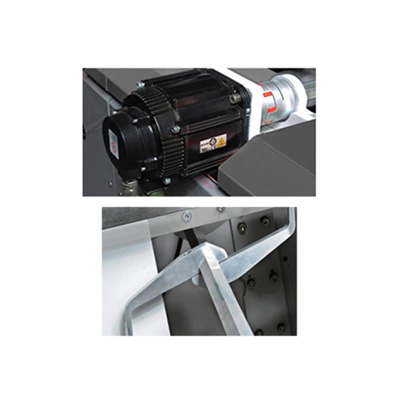

PLC control, human-machine interface touch screen adjustment, front and rear proportional linkage.
PLC adopts Taiwan FATEK (Yonghong) brand man-machine interface.
Motor: Mindong main motor or TECO main motor.

Frequently Asked Questions (FAQ)

What paper thickness range is supported by the QHZ-1200?

The QHZ-1200 model supports paper thickness ranging from 200 to 800 g/㎡.

What types of boxes can be processed with this machine?

It processes One side, Lock bottom, 4 corner, and 6 corner box types. It works with Cardboard and B.C.E.F.N corrugated material, suitable for pre-folding medicine, wine, cosmetic, and other automated packaging line boxes.

What is the maximum operating speed of the QHZ-1200?

The maximum running speed of the machine reaches up to 300 m/min.

What folding belts and drive systems are used?

The equipment utilizes imported German Siegling or Italian Chiorino plane folding belts, combined with American EP synchronous belt drives.

What control and motor configuration does the machine feature?

It features PLC computer control with a human-machine interface touch screen by Taiwan FATEK (Yonghong), paired with either a Mindong or TECO main motor.

How does the gluing system work at high production speeds?

It is equipped with two larger mechanical lower gluing devices (left and right) designed specifically to avoid glue splashing during high-speed production while allowing easy removal for cleaning and maintenance.
