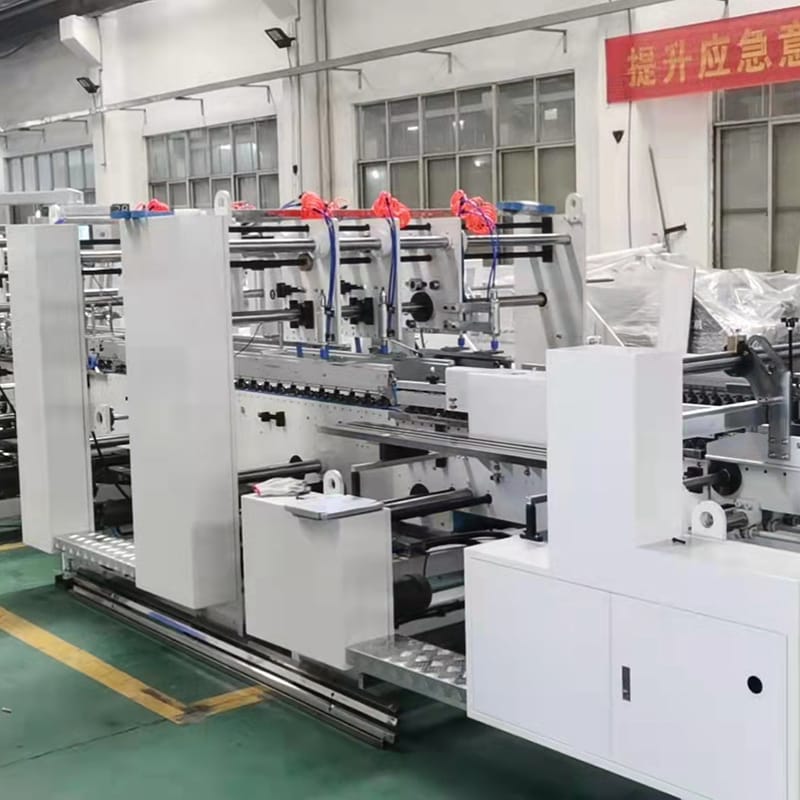

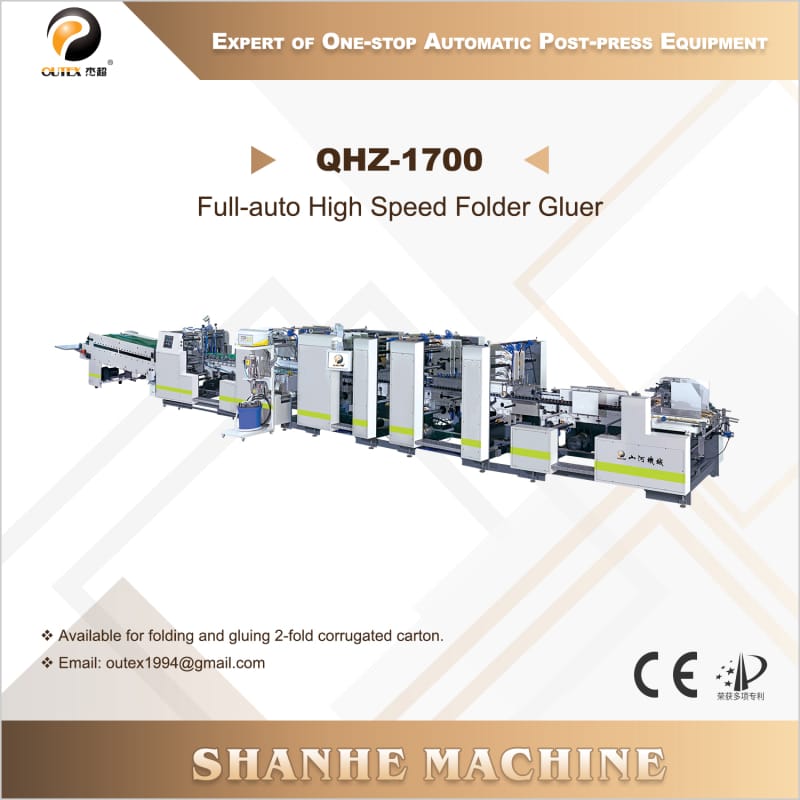

QHZ-1700 is a heavy-duty model of folder gluer. Basically it applies to process big box like, corrugation carton or other corrugated packaging. It is suitable for making regular side-sticking carton, 2-fold corrugated board with E/B/A-flute and 5-ply board packaging carton (special box can be customized, while 4/6-corner box type are optional). Machine is diverse for different kinds of boxes and is easy in adjusting & operating.
Corrugated carton, paper cardboard, Flute B (Three layers), E, F, N, BE, A (Five layers)
Max. Speed (m/min)
250
Overall Dimension (mm)
17600 (L) × 2100 (W) × 1600 (H)
Weight (kg)
9500
Power Consumption (kw)
20
Box Type
Side Gluing, Lock Bottom double wall box and 4&6 corners, other boxes which can be added in the same model.

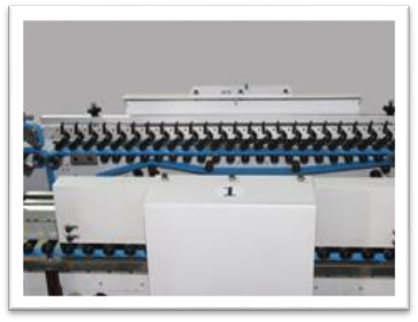

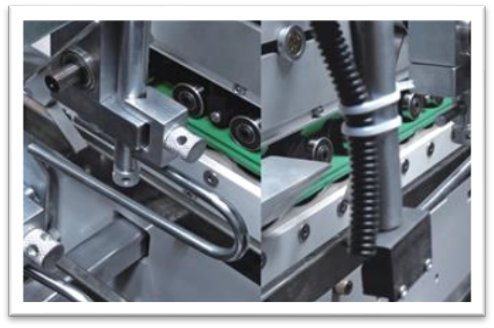

Independent part could guide the paper box to a parallel handrail that allows a perfect blank alignment.
Correct the deviation
Facilitate the subsequent accurate folding of the paper cassette
Perfect folding quality throughout the machine
Blank Dimensions & Capacities
Box Type
QHZ-1700
Box Type
QHZ-1700
Straight Box Blank
Dim
Max
Min
Lock Bottom Boxes Blank
Dim
Max
Min
C
1700
200
C
1700
280
E
1600
100
E
1600
120
L
815
90
L
785
130
4 Corners Boxes Blank
Dim
Max
Min
6 Corners Boxes Blank
Dim
Max
Min
C
1600
220
C
1650
280
E
1400
160
E
1600
280
H
150
30
H
150
30

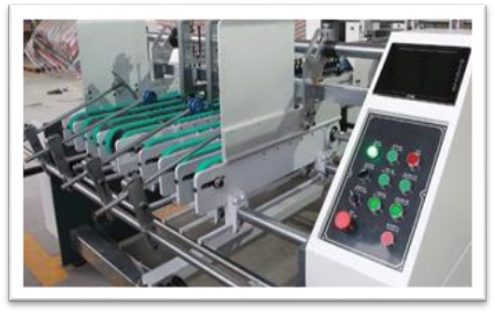

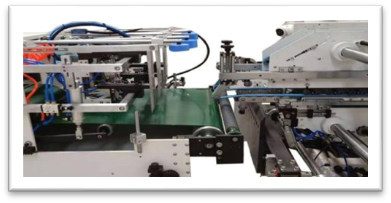

Feeding & Pre-Folder Unit
Japan Nitta feeding belts - 10 pcs
Adjustable feeding knives - 2 pcs
Vibrator motor - 01 set
Independent and flexible. Getting the feed right is the key to fast, accurate folding.
Driven by AC motor
Sets in 25% of the time of the other feeder
Feeds all types of material
Cuts down makeready times
Reduces waste
Pneumatic and automatic lifting device for feeder up plates
With so much of today’s carton production being destined for auto-erection lines, ensuring accurate, reliable opening of your finished product has never been more important.
Long pre-folder
Extra wide lower left-hand belt
Unique design, protect the box surface
Up carrier is driven and pneumatic up/down system
Creasing system for die cutting lines
Conveying & Bottom Lock Mechanism

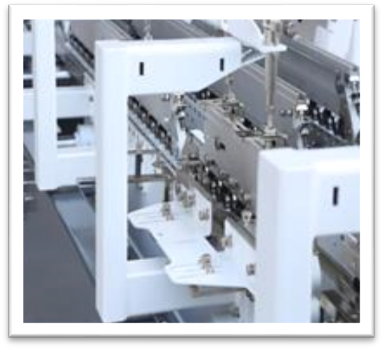

3 pcs of conveying boards. Flexible lock bottom structure, easy fixing and operation.

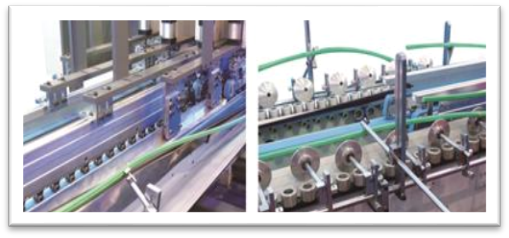

Special Long Folding Section
Special long folding section, boxes can be well folded and formed in this section.
Special long folding section for optimal box formation
Inner couriers are adjusted by motors
Rail-guide for belts to prevent sideways deviation
High-quality NITTA folding belts
Driven by inverter with pneumatic middle carrier control

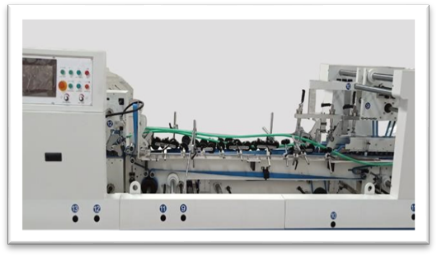

Automatic Adjustment System
The up-adjusting plates system is fully automatic.

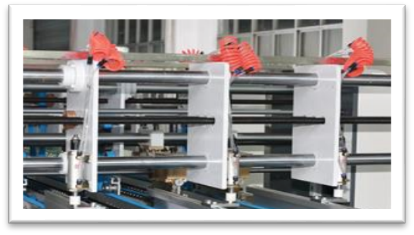

Trombone & Operation Section
Single and easy operation for upper/down expansion adjustment
Left/right twin boards moveable for piling
Accountable counter sensor
Finger attachment in trombone section to reduce waste (OPTIONAL)
The scissor pasting in lock bottom cartons
System driven by inverter

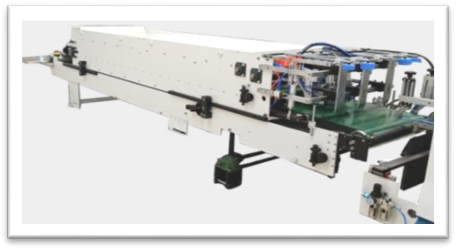

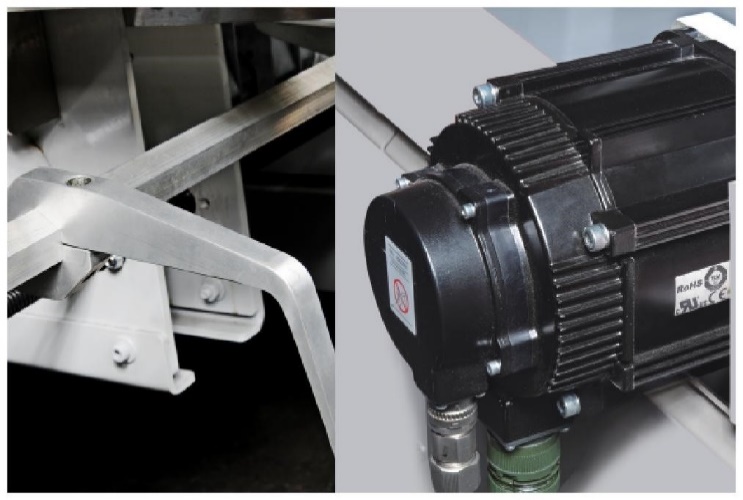

Servo Hook System & Back Folding
The hook system is driven by YASKAWA servos controlling system with photoelectric sensors to achieve back folding function, featuring high precision and excellent efficiency.
