The longer distance folding parts ensure box folding by 180 degrees on the first line and 135 degrees on the second line, in order to open the box conveniently while feeding substance into. Flexible replacing of the parts provides great convenience to the setting of accessories for other pattern boxes.
Separate adjustment of paper-feeding belt device makes changing belts more convenient; independent vibrating motor device sufficiently raises the quality of paper-feeding. The whole adjustment of reamer together with the baffle shortens the time of adjusting and box exchanging.
The whole locking-bottom part accessory is set on a turnover carrier, reducing the time of locking-bottom and changeover.
Upper paste tank adopts the structure with 2-sets mechanical gluing rollers; accurate adjustment is capable via adjustment of either left/right side or upside/downside. Setting and removal of lower paste tank is convenient for the operator to clean all parts of the tank.
Extra long design ensures both the left and right folding belt can assort each kind of angle idler pulley to make accurate adjustments, meeting different materials and box sizes.
Convenient adjustment of pressure with trustworthy paper pressure by pressing tightly and firmly improves pasting quality.
Equipped with a machinery-counting device for counting convenience and decreasing long-term maintenance costs.
Fully adopting the inward extra-long and weight belt ensures the quality of finished products and convenience of regulation of belt pressure and speed. Safety switches ensure operational safety, allowing operators to adjust packaging speed separately at their preference.

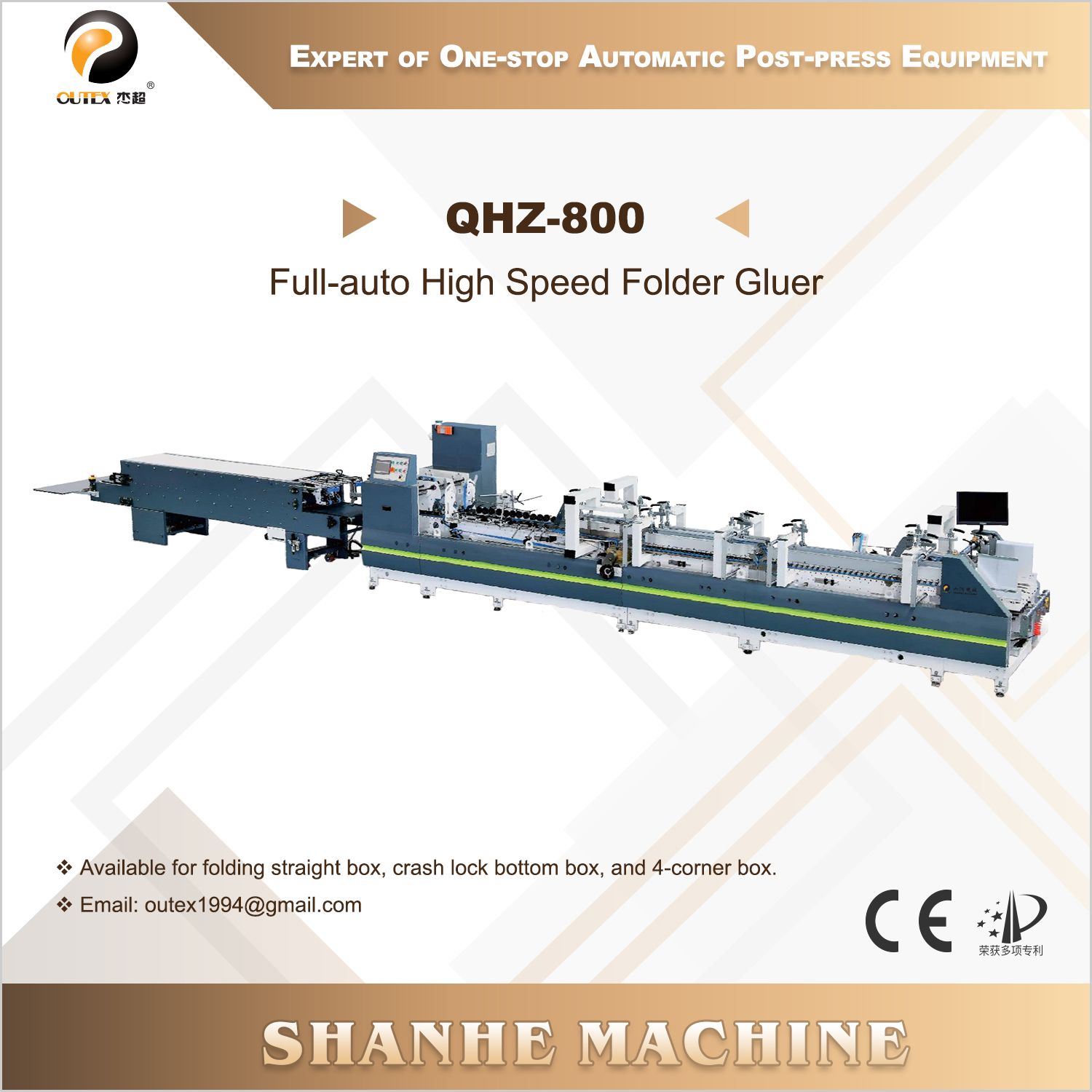

The QHZ-800 is suitable for processing cardboard ranging from 200 to 800gsm, as well as N, E, and F flute corrugated paper.
The machine can reach a maximum running speed of up to 350 meters per minute.
It features extra-long folding sections that ensure folding by 180 degrees on the first line and 135 degrees on the second line, making it highly convenient to open boxes during substance feeding.
The upper paste tank utilizes 2-set mechanical gluing rollers with precise 4-way adjustment, while the lower paste tank design allows quick setup and removal for effortless cleaning.
It is equipped with an integrated mechanical counting device to reduce long-term maintenance costs, along with safety switches that allow operators to safely adjust running and packaging speeds independently.
