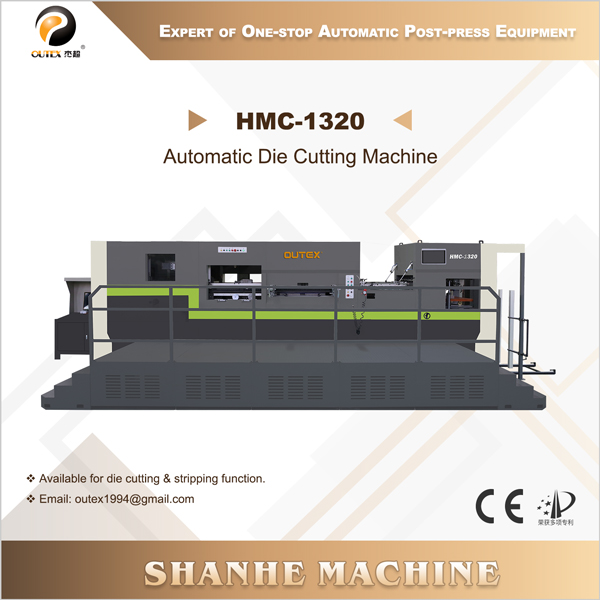

| HMC-1320 Specifications | |
|---|---|
| Max. paper size | 1320 x 960mm |
| Min. paper size | 500 x 450mm |
| Max. die cut size | 1300 x 950mm |
| Max. running speed | 6000 S/H（varies according to layout size） |
| Stripping work speed | 5500 S/H（varies according to layout size） |
| Die cut precision | ±0.20mm |
| Paper input pile height (including floor board) | 1600mm |
| Paper output pile height (including floor board) | 1150mm |
| Paper thickness | cardboard: 0.1-1.5mm | corrugated board: ≤10mm |
| Pressure range | 2mm |
| Blade line height | 23.8mm |
| Rating | 380±5%VAC |
| Max. pressure | 350T |
| The compressed air amount | ≧0.25㎡/min ≧0.6mpa |
| Main motor power | 15KW |
| Total power | 25KW |
| Weight | 19T |
| Machine size |
Not include operation pedal and pre-stacking part: 7920 x 2530 x 2500mm Include operation pedal and pre-stacking part: 8900 x 4430 x 2500mm |

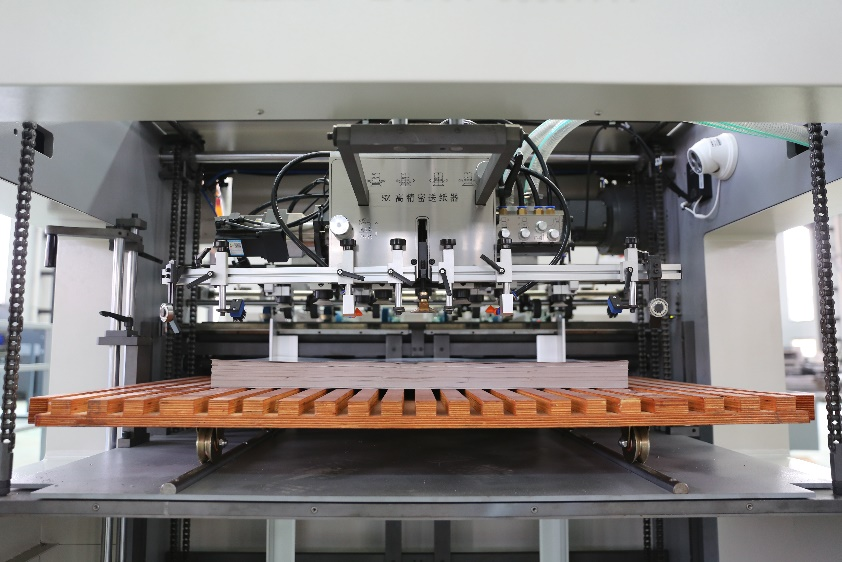

● Heavy suction feeder (4 suction nozzles and 5 feeding nozzles): Feeder is a unique heavy-duty design with strong suction, and can send out cardboard, corrugated and gray board paper smoothly. The suction head can adjust various suction angles according to the deformation of the paper without stopping. It has the function of simple adjustment and precise control. Feeder is easy to operate and feed paper accurately and smoothly, both thick and thin paper can be taken into account.

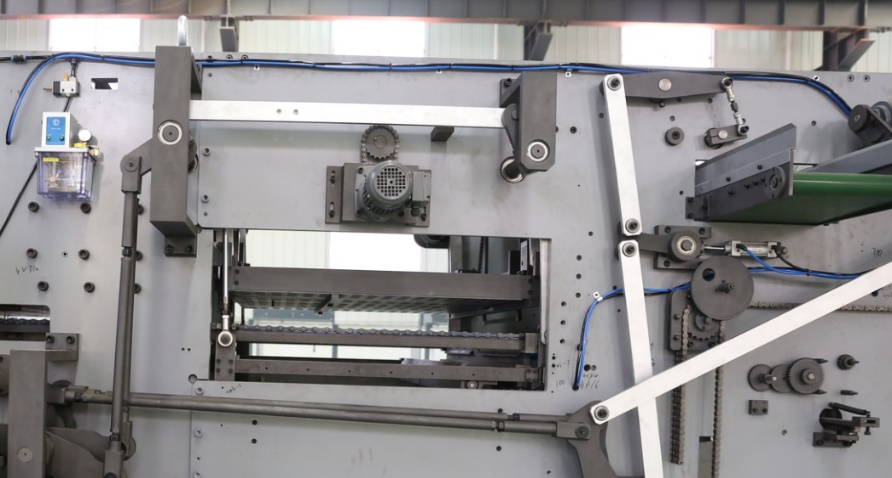

● The gauge is push-and-pull type. The push-pull switch of the gauge is easily completed with only one knob, which is convenient, fast, and stable accuracy. The paper conveyor belt has been upgraded to a 60mm widening belt, which is matched with the widening paper wheel to make the paper conveyor more stable.
● The paper feeding part can adopt fishscale feeding way and single sheet feeding way, which can be switched at will. If the thickness of corrugated paper is more than 7mm, users can choose single sheet feeding way.
Machine adopts multipoint programmable operation and HMI in the control part that is very reliable and also prolongs machine’s service life. It achieves the whole process automation (includes feeding, die cutting, stacking, counting and debugging, etc.), of which the HMI makes debugging more convenient and fast.
This human-machine is going for improving the machine working efficiency by perfectly combined movement control system with servo motor, which ensure the whole operating can smooth and high efficiency. It also uses the unique design of paper suction structure to make the machine adapt to bent corrugated paperboard more stable. With non-stop feeding device and paper supplement it highly increases the working efficiency. With auto waste cleaner, it can easily remove the four edges and hole after die-cutting. The whole machine uses imported components which makes sure the more stable and durable using of it.
