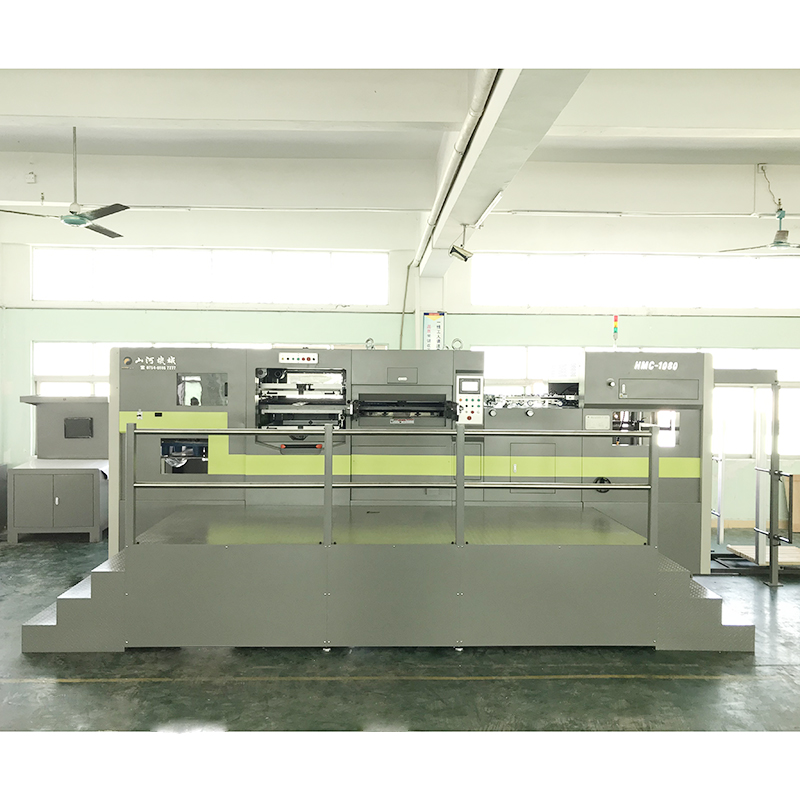

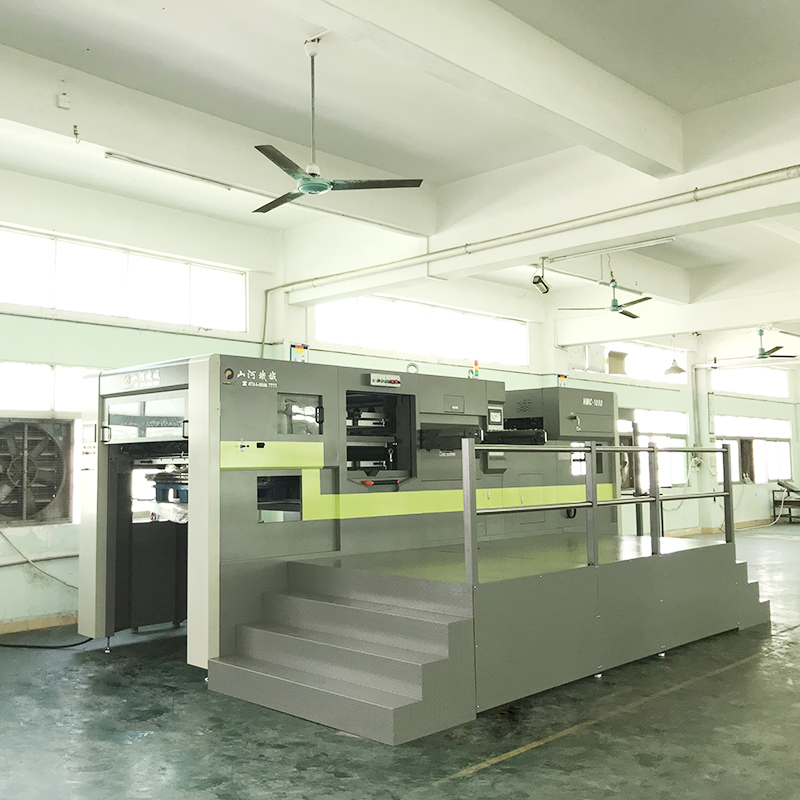

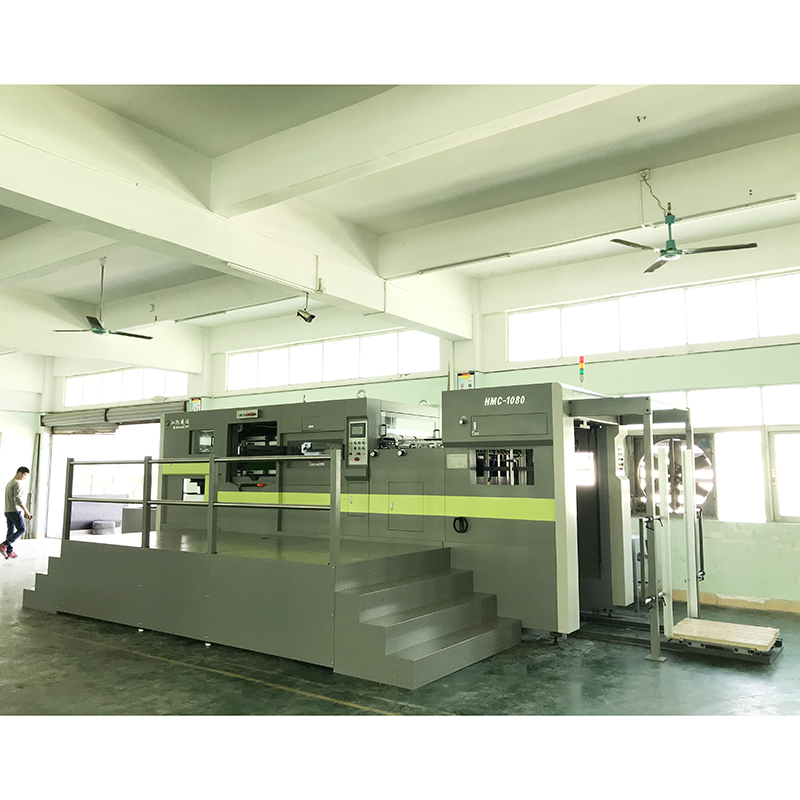

| HMC-1080 | |
|---|---|
| Max. Paper Size (mm) | 1080(W) × 780(L) |
| Min. Paper Size (mm) | 400(W) × 360(L) |
| Max. Die Cut Size (mm) | 1070(W) × 770(L) |
| Paper Thickness (mm) | 0.1-1.5 (cardboard), ≤4 (corrugated board) |
| Max. Speed (pcs/hr) | 7500 |
| Die Cut Precision (mm) | ±0.1 |
| Pressure Range (mm) | 2 |
| Max. Pressure (ton) | 300 |
| Power (kw) | 16 |
| Paper Pile Height (mm) | 1600 |
| Weight (kg) | 14000 |
| Size (mm) | 6000(L) × 2300(W) × 2450(H) |
| Rating | 380V, 50Hz, 3-phase 4-wire |
The machine supports cardboard thicknesses between 0.1mm and 1.5mm, as well as corrugated board up to ≤4mm.
The HMC-1080 achieves a maximum operational speed of 7,500 pcs/hr with a high die-cutting precision of ±0.1mm.
It features self-adjusting capabilities tailored to different product sizes without scratching paper, combined with unique belt pressure transporting technology to avoid paper bending and collisions.
The machine uses a PLC programmable control system for full automatic feeding, transporting, testing, and die-cutting. It includes security switches that automatically shut down the system in unexpected situations.
The main driver system combines a worm wheel, worm gear pair, and crankshaft structure. The worm wheel is crafted from high-durability special copper alloys for maximum stability.
The machine requires a power input of 16 kW rated at 380V, 50Hz, utilizing a 3-phase 4-wire electrical configuration.
