| Model | HMC-930 | HMC-1100 | HMC-1200 | HMC-1300 | HMC-1400 | HMC-1500 |
| Size of face plate (mm) | 670*930 | 810*1100 | 820*1200 | 930*1300 | 1050*1430 | 1050*1530 |
| Min. cutting size (mm) | 350*460 | 350*460 | 360*460 | 460*520 | 460*660 | 460*660 |
| Max. cutting size (mm) | 660*920 | 780*1060 | 780*1160 | 910*1250 | 950*1380 | 950*1480 |
| Paper thickness (mm) | 0.2-5.0 | 0.2-5.0 | 0.2-5.0 | 0.2-5.0 | 0.2-5.0 | 0.2-5.0 |
| Max. feeding pile height (mm) | 1100 | 1100 | 1100 | 1100 | 1200 | 1200 |
| Max. delivery pile height (mm) | 800 | 800 | 800 | 800 | 800 | 900 |
| Main motor power (kw) | 4 | 4 | 4 | 5.5 | 5.5 | 7 |
| Total power (kw) | 7 | 7 | 9 | 9 | 9 | 12 |
| Air Consumption (M/Pa) | 0.5 | 0.5 | / | / | / | / |
| Max. speed (pcs/h) | 1000-1700 | 1000-1700 | 1000-1600 | 1000-1200 | 700-1000 | 700-1000 |
| Weight (kg) | 2200 | 2300 | 2350 | 2400 | 2500 | 2600 |
| Machine size (mm) | L5900 * W2100 * H2000 | L7550 * W2800 * H2300 | ||||

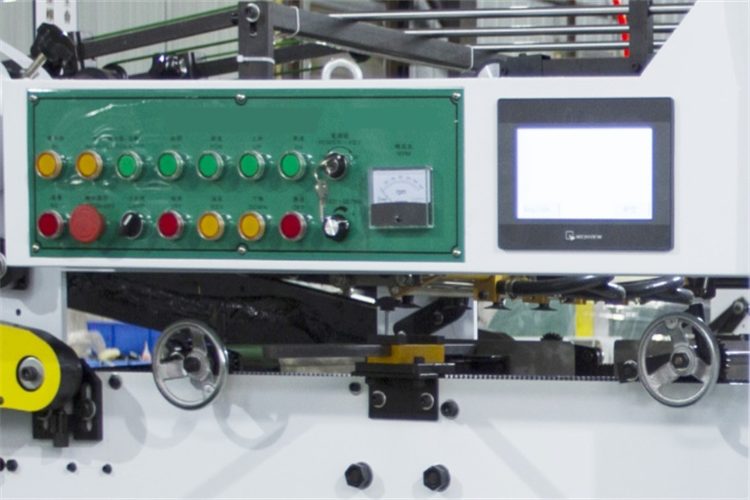

Electric eye inspection is conducive to reducing the paper damage rate, precision and safety. Easy to operate

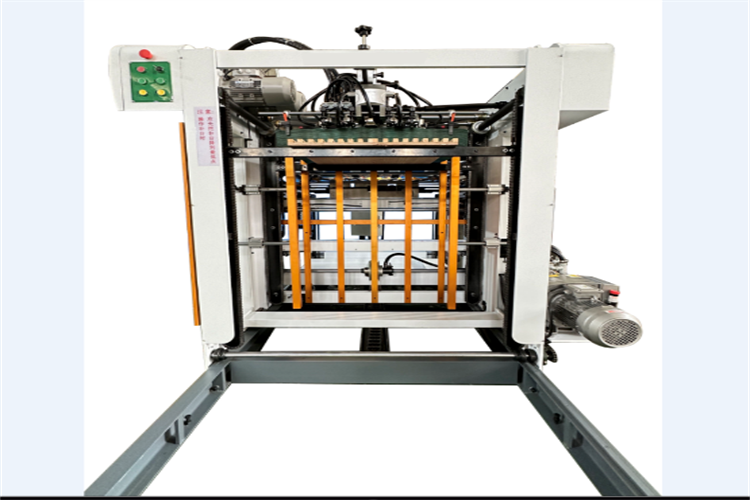

The paper feed table is equipped with automatic supply table device, which can be operated continuously, without stopping, and has high efficiency.

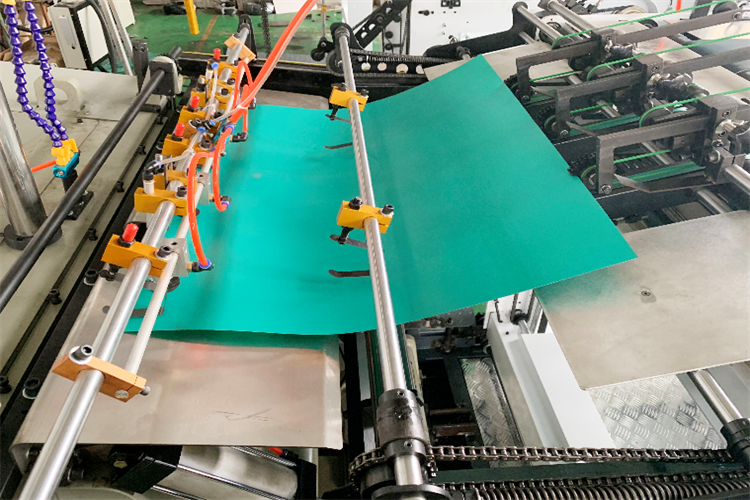

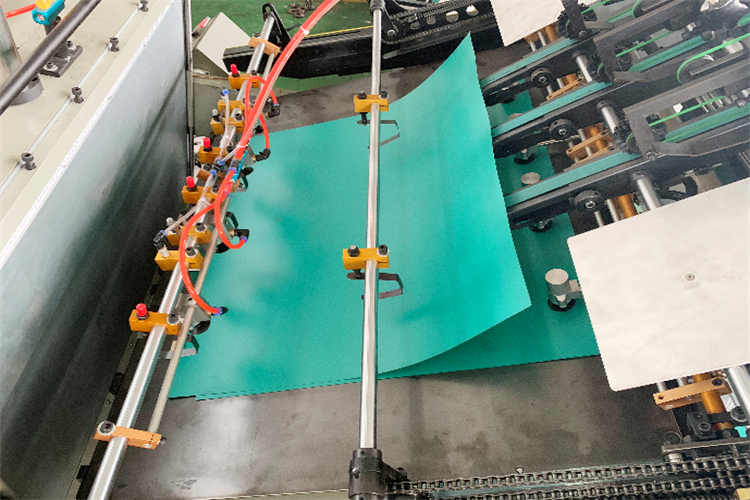

Front stop and side stop can be freely adjusted according to the size of the paper layout, high accuracy.
Both paper feeding and paper receiving are vacuum aspirated, which can eliminate the problem of biting the claw of general automata, and is suitable for general cardboard, such as E/B/A-flute corrugated board and plastic board.

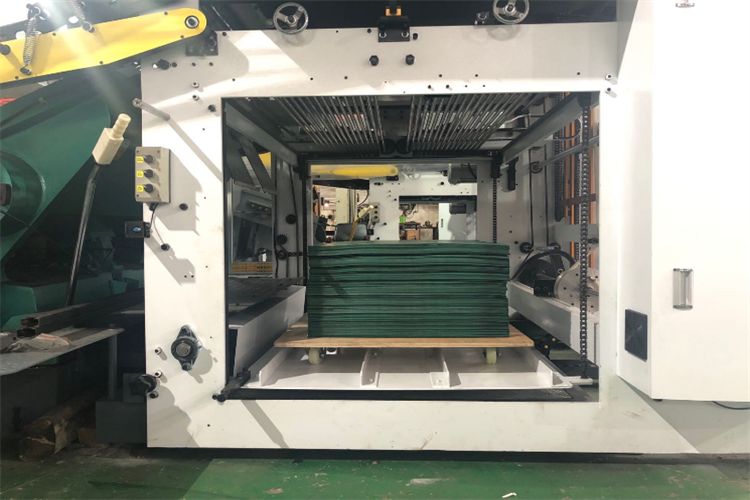

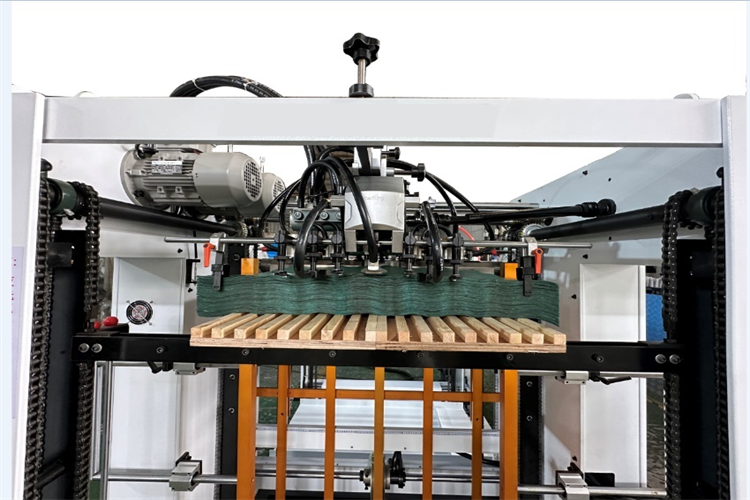

The receiving table is equipped with automatic replenishment device, which can be operated continuously, without stopping and with high efficiency.
The Feeder has a track device. When making the version can be freely separated, convenient for making the version.
