HMC-1700 automatic die-cutting machine is an ideal equipment for processing box & carton. Its advantage: high production speed, high precision, high die cutting pressure, high stripping efficiency. Machine is easy to operate; low consumables, stable performance with outstanding production efficiency.
Overall size (L*W*H) (including treadmill paper machine)
11x6x2.8m
Overall weight
30T
Product Features & Structure
A. Paper feeding part (Optional)

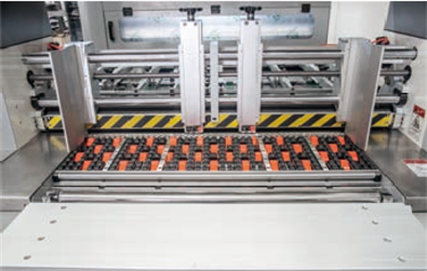

a. Leading edge paper feeding system
Adopting a gearbox and air pump control system structure to prevent embossing and peeling of the printing surface.

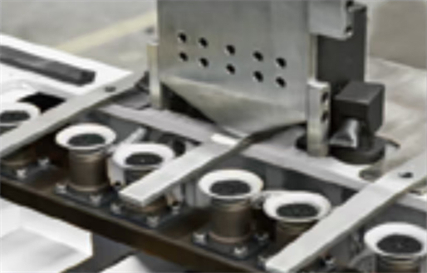

b. Lower suction feeding paper
Adopting high-precision bottom suction feeding and vacuum suction feeding to feed the paper roller, it is not easy to scratch the printing surface.

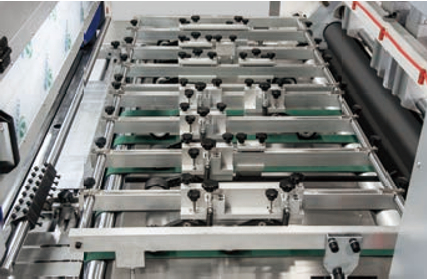

B. Paper feeding part
Using a paper feeding rubber wheel combined with a rubber roller, the corrugated paper is accurately delivered to prevent warping.

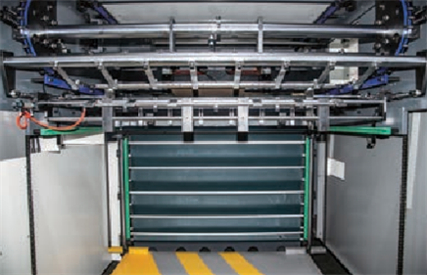

C. Paper receiving part
Non stop rolling shutter for paper collection, automatic switching of collection and release.

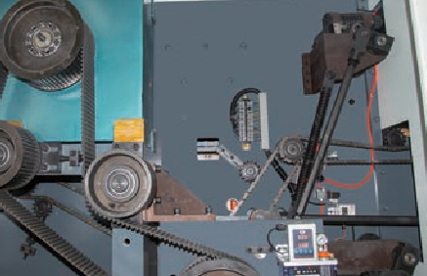

D. Drive part
Belt connecting rod transmission, low noise, and accurate accuracy.

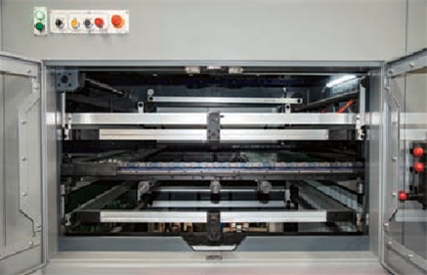

E. Waste cleaning part
Semi clean waste, effectively removing paper materials on three sides and in the middle, clean and tidy.
Frequently Asked Questions (FAQ)
Q: What is the maximum sheet size supported by the HMC-1700 model?
The HMC-1700 handles a maximum paper feeding size of 1700x1210mm and a maximum die-cutting size of 1680x1190mm, with a minimum paper size of 480x450mm.
Q: What materials and thicknesses can this die-cutting machine handle?
It is designed for corrugated board with a die-cutting thickness specification ranging from 1mm up to 8mm.
Q: What are the operational speed and pressure specifications?
The machine achieves a maximum mechanical speed of 4500 sheets per hour (s/h) and delivers a maximum working pressure of 350T with a precision of ±0.5mm.
Q: How does the feeding system prevent damage to printed surfaces?
It offers optional leading-edge feeding using gearbox/air pump control or lower suction feeding, both specifically engineered to avoid embossing, peeling, or scratching printed surfaces.
Q: How does the waste cleaning unit function?
The semi-clean waste removal section effectively clears waste material from three sides as well as the center, maintaining clean and precise final outputs.
Q: What are the dimensions and power requirements for installation?
The total equipment dimensions are 11x6x2.8m (including treadmill paper machine), with an overall weight of 30T, requiring 37.5kw overall power and 0.8mpa air source pressure.
