HMC-1050 automatic die-cutting machine is an ideal equipment for processing box & carton. Its advantage: high production speed, high precision, high die cutting pressure. Machine is easy to operate; low consumables, stable performance with outstanding production efficiency. Front gauge positioning, pressure and paper size has automatic adjusting system. Feature: available for cutting cardboard or corrugated board product which have colorful printing surface.
Send Inquiry

Product Description

Model: HMC-1050
Max. paper size(mm) 1050 (W) x 740 (L)
Min. paper size(mm) 400 (W) x 360 (L)
Max. die cut size(mm) 1040 (W) x 730 (L)
Paper thickness(mm) 0.1-3（cardboard）, ≤ 5 mm（corrugated board）
Max. speed(pcs/hr) 8000 (stripping speed: 6500)
Die cut precision(mm) ±0.1
Pressure range(mm) 2
Max. pressure(ton) 350
Power(kw) 16.7
Blade line height(mm) 23.8
Paper pile height(mm) 1.3
Weight(kg) 16
Size(mm) 5800 (L) x 2200 (W) x 2200(H)
Rating 380V, 50Hz, 3-phase 4-wire
Key Features & Performance

It can adjust itself according to different products’ sizes without scratching paper!

With European technology, this feeder is available for conveying cardboard and corrugated paper. Stable & precise!

The electrical par adopts PLC programmable control system, it makes the paper feeding, transporting and then die-cutting with full automatic control and testing. And it is equipped with a variety of security switch which can be automatically shut down in case of any unexpected situation.

The main driver system adopts worm wheel, worm gear pair and crankshaft structure, to ensure the machine running stable and with high precision. The material of the worm wheel is special alloys of copper.

The unique technology of belt pressure transporting style, can avoid bending the paper round of the collision, and realize the full pressure of the paper feed type forward pressure on the traditional way.

Visual Gallery

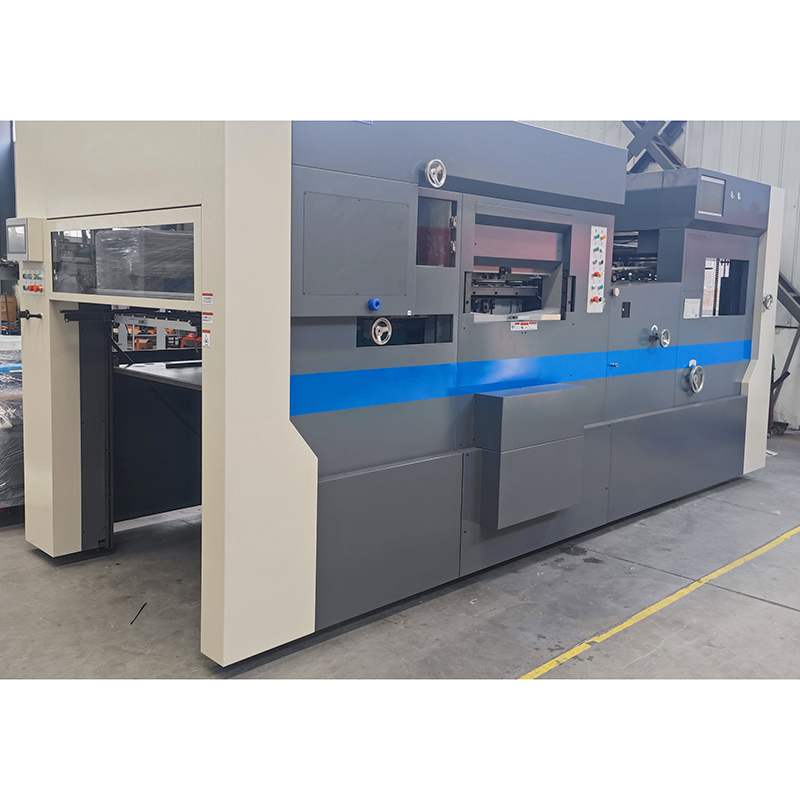

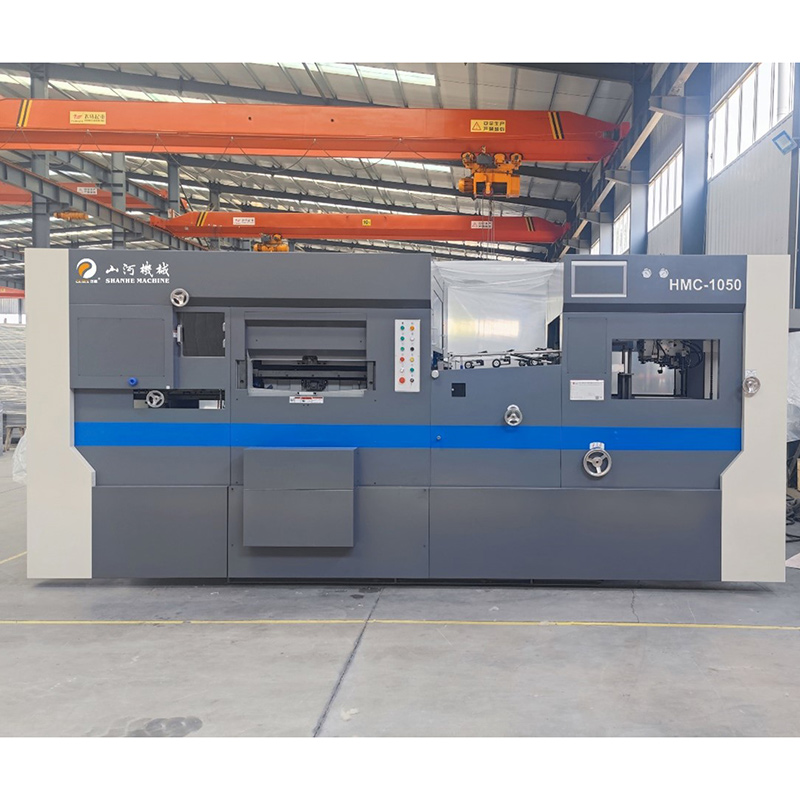

HMC-1050 Automatic Die Cutting Machine View 1

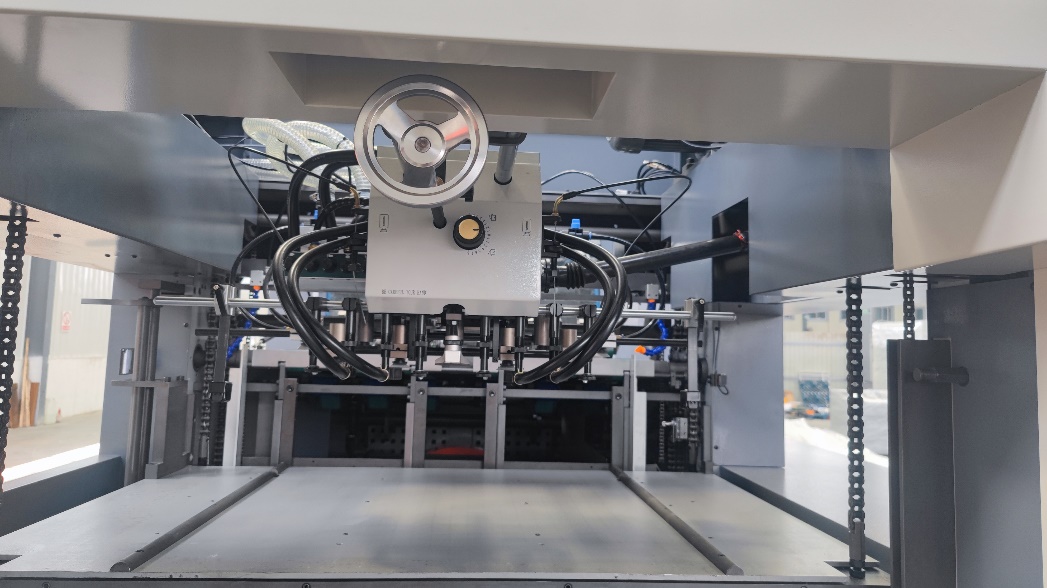

HMC-1050 Feeder Unit View
HMC-1050 Driving System Unit

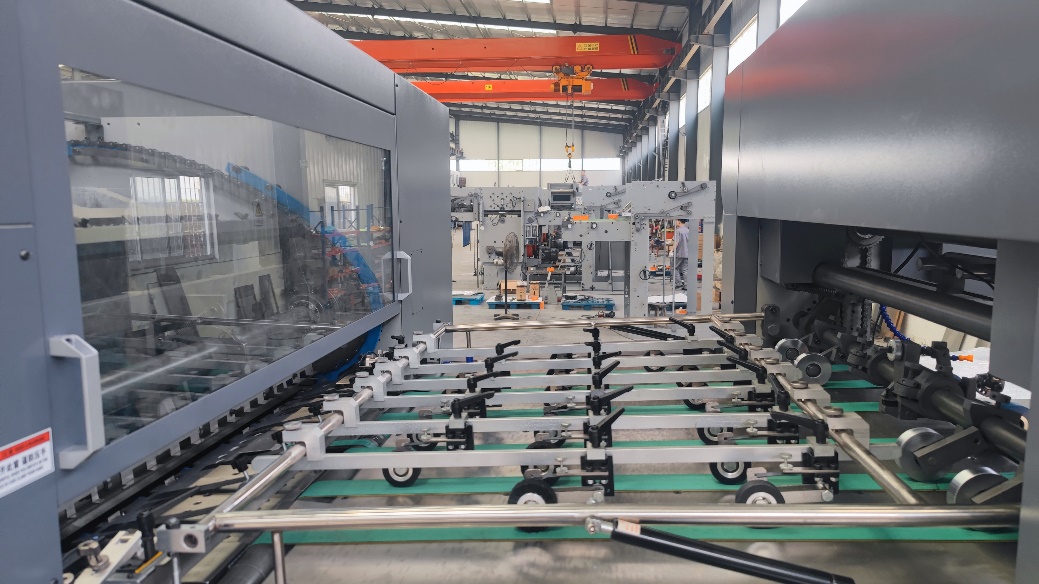

HMC-1050 Paper Transport Unit
HMC-1050 Die Cutting Component
Frequently Asked Questions (FAQ)
What are the maximum and minimum paper dimensions for the HMC-1050?
The maximum paper size accommodated is 1050 mm (W) x 740 mm (L), while the minimum paper size supported is 400 mm (W) x 360 mm (L). The maximum die cutting size reaches 1040 mm (W) x 730 mm (L).
What paper types and thicknesses can be processed?
The machine handles cardboard thicknesses ranging from 0.1 mm to 3 mm, and corrugated board up to ≤ 5 mm thick.
What is the operating speed and precision of the machine?
The HMC-1050 achieves a maximum operational speed of 8000 pcs/hr (with a stripping speed of 6500 pcs/hr) and operates with a high die cutting precision of ±0.1 mm.
How does the feeding and transporting system protect the paper?
It features self-adjusting capabilities based on product size to prevent paper scratching. Additionally, the unique belt pressure transporting technology prevents collision-related bending and ensures consistent paper feeding.
What control and safety systems are integrated into the unit?
The machine utilizes a PLC programmable control system for fully automated feeding, transporting, die-cutting, and testing. It also includes multiple safety switches that trigger automatic shutdown during unexpected conditions.
What drive system ensures stable performance under high pressure?
The main driver system employs a worm wheel (made from special copper alloys), worm gear pair, and crankshaft structure to deliver stability and precision under a maximum pressure of 350 tons.
