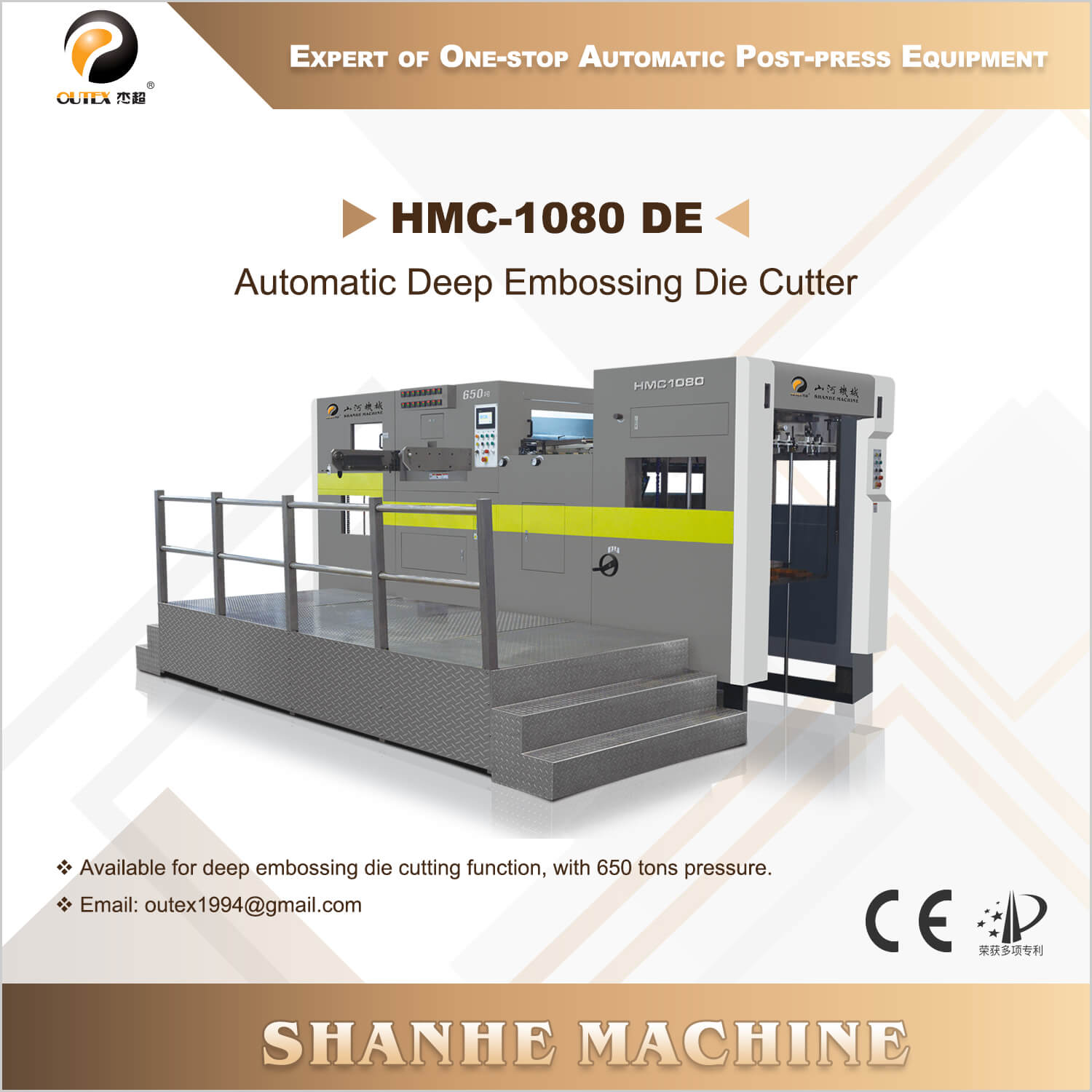

| HMC-1080DE | |
|---|---|
| Max. paper size(mm) | 1080(W) x 780(L) |
| Min. paper size(mm) | 360(W) x 400(L) |
| Max. die cut size(mm) | 1070(W) x 770(L) |
| Paper thickness(mm) | 0.1-3（cardboard）, ≯5（corrugated board） |
| Max. speed(pcs/hr) | 7000 |
| Die cut precision(mm) | ±0.1 |
| Pressure range(mm) | 2 |
| Max. pressure(ton) | 650 |
| Power(kw) | 34.7 |
| Knife blade height(mm) | 23.8 |
| Paper pile height(mm) | 1.6 |
| Weight(kg) | 19 |
| Size(mm) | 6000(L) x 3705(W) x 2250(H) |
| Rating | 380V, 50Hz, 3-phase 4-wire |
It can adjust itself according to different products’ sizes without scratching paper!
With European technology, this feeder is available for conveying cardboard and corrugated paper. Stable & precise!
The electrical par adopts PLC programmable control system, it makes the paper feeding, transporting and then die-cutting with full automatic control and testing. And it is equipped with a variety of security switch which can be automatically shut down in case of any unexpected situation.
The main driver system adopts worm wheel, worm gear pair and crankshaft structure, to ensure the machine running stable and with high precision. The material of the worm wheel is special alloys of copper.
The unique technology of belt pressure transporting style, can avoid bending the paper round of the collision, and realize the full pressure of the paper feed type forward pressure on the traditional way.
