Integrate automated flipping and stacking technology directly into high-output corrugated and folding box manufacturing lines.
Overcoming manual labor constraints, thermal warpage, and post-lamination structural curling through automated inline flip-flop stacking systems.
When printed top sheets are bonded to wet corrugated fluting (A, B, C, E, F, or N flute), starch-based adhesives release moisture. Standard stacking leads to structural warping. Our dynamic flip-flop stacker periodically flips bundles 180°, balancing tension across the stack to ensure perfectly flat board curing.
High-speed laminators running up to 160–200 meters/min generate output that manual labor cannot keep up with. Automatic stackers buffer, count, turn, align, and form tight pallets in continuous non-stop operation, completely eliminating post-press delivery bottlenecks.
Equipped with non-marking suction transport belts, soft pneumatic side-squaring pushers, and precision servo timing flaps, delicate foil-stamped, UV-coated, or matte-laminated sheets are safely maneuvered without micro-abrasions or smudging.
Engineering compliance for global export: Ensuring total operator safety, electromagnetic stability, and mechanical durability under demanding production shifts.
Our Automatic Flip Flop Stackers are fully engineered and certified under European Directive 2006/42/EC. Every unit integrates mandatory safety hardware to eliminate mechanical pinch point risks and operator injury:
Electrical integrity is paramount in automated packaging plants operating heavy variable frequency drives (VFDs) and high-density servo controllers:
Direct performance matrix comparing manual sheet stacking, traditional drop-stackers, and our CE-Certified Automated Servo-Driven Flip Flop Stackers.
| Performance Metrics & Specifications | Manual Labor Stacking | Basic Mechanical Drop-Stacker | CE Automated Flip Flop Stacker |
|---|---|---|---|
| Maximum Line Speed | Up to 50–70 m/min (Limited) | Up to 100–120 m/min | Up to 160–200 m/min |
| Anti-Warping Capability | Poor (Requires manual stack turning) | None (Single direction stacking) | Superior (180° Automated Alternate Flipping) |
| Labor Requirement per Shift | 3–4 Dedicated Workers | 2 Operators | 0–1 Supervisory Operator |
| Sheet Alignment & Squaring | Inconsistent (Operator Fatigue) | Pneumatic Side Slapping (Basic) | Servo-Guided 4-Side Motorized Squaring (±0.5mm) |
| Substrate Compatibility | Limited to light cardboards | Medium Corrugated (B/C/E Flute) | Mini-Flute (N/F/E), Heavy Flute (A/B/C/EB), Cardboard |
| Safety Standard Compliance | High Ergonomic Injury Risk | Basic Mechanical Guards | CE Compliant / ISO 13849-1 PL e Guarding |
| Non-Stop Pallet Changing | Requires line stoppage | Manual fork-truck insertion | Automated Auxiliary Fork Roller Table System |
Unlike old pneumatic actuators that create jarring mechanical shock, our flip-flop mechanism relies on synchronized dual-servo drive motors. Rotation curves are smoothed using S-curve acceleration formulas, protecting vulnerable board edges.
Equipped with a high-resolution Siemens/Schneider PLC interface. Operators store over 500 job profiles (sheet length, sheet width, stack height, flip count per bundle), reducing changeover setup time to under 90 seconds.
When the target stack height is achieved (up to 1700 mm), a pneumatic auxiliary grid extends to catch oncoming sheets while the completed pallet is automatically ejected via powered roller conveyors.
Custom engineering configurations tailored to diverse boxmaking, commercial printing, and industrial packaging sectors.
High-volume e-commerce packaging plants running 3-ply and 5-ply B/E-flute mailing boxes require extreme stack neatness for automatic feeding into downstream slotters and folder-gluers. The flip-flop stacker ensures fluting tension stays flat across heavy 24/7 runs.
Surface scratches ruin expensive offset printing, metallized PET films, and foil stamping. The stacker’s optical sensors and soft-touch air-cushioned sheet guide plates prevent micro-abrasions, maintaining high visual gloss and tactile embellishments.
For gameboards, luxury rigid box liners, and display stands (litho-laminated heavy cardboards from 400g/m² up to 2000g/m²), automated flipping prevents glue tension from pulling the corners upward during initial adhesive setting.
End-to-end operational assurance: From factory layout design and ocean logistics to emergency field engineering and spare parts dispatch.

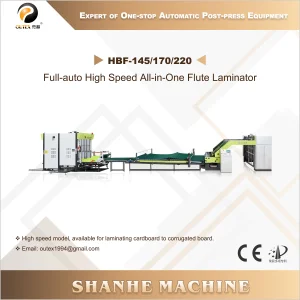

Our application engineers collaborate with converter facility managers prior to machine dispatch. We review floor load-bearing specs, pneumatic air supply lines (min 6.0 bar constant), and electrical transformer requirements. Custom in-feed conveyor bridges are manufactured to link our flip-flop stacker seamlessly with existing third-party flute laminators or coaters.
Every stacker control unit includes an integrated secure VPN gateway module. Our technical engineers perform real-time PLC diagnostic checks, sensor telemetry analysis, and software updates remotely. For physical servicing, certified field technicians are deployed across Europe, North America, Southeast Asia, and South America for rapid emergency dispatch.
Driving smart packaging factories through AI optical alignment, predictive maintenance algorithms, and carbon footprint reduction.
Next-generation stackers incorporate high-speed linear CCD camera sensors over the conveyor bed. The system scans each sheet for surface blemishes, mis-lamination tolerances, or corner folds, automatically rejecting defective sheets before stack formation.
Fully compliant with OPC-UA protocols. Our stackers broadcast real-time operational Equipment Effectiveness (OEE) metrics, sheet count tallies, and error codes directly to plant MES/ERP platforms, triggering automated AGV (Automated Guided Vehicles) to haul away completed pallets.
Modern servo motor drivers store deceleration energy during rapid 180° rotation cycles, feeding electricity back into the main bus system. This engineering innovation cuts total machine electrical consumption by up to 18.5% annually.

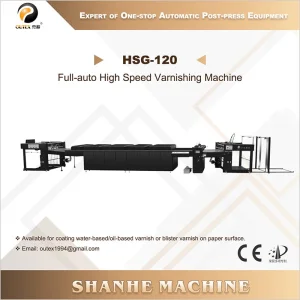

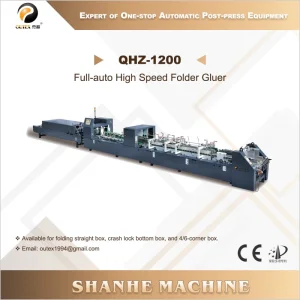

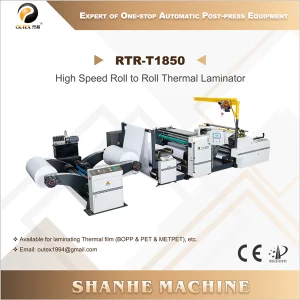

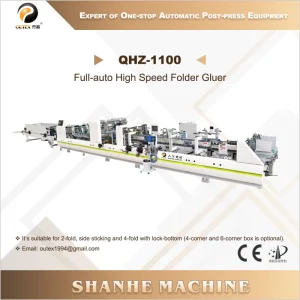

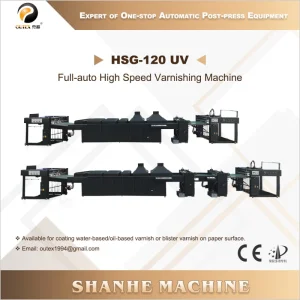

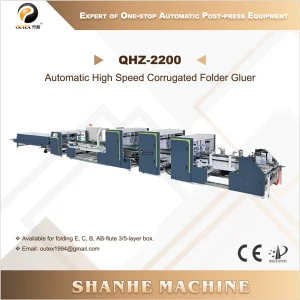

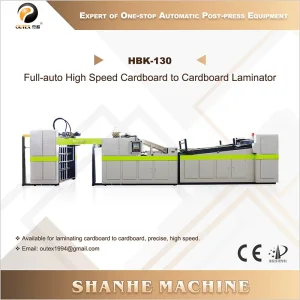

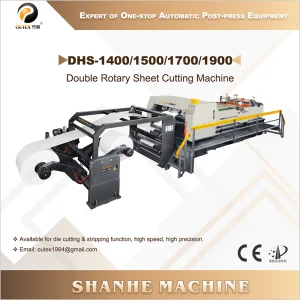

Explore our full portfolio of high-speed folder gluers, card laminators, roll-to-roll coaters, and automatic post-press systems.
In-depth responses covering machinery installation, operational specifications, CE safety protocols, and ROI evaluation.
Contact our engineering consultancy team today for custom line layout CAD drawings, ROI analysis, and tailored equipment quotations.
