In modern industrial packaging, the demand for structural integrity, high burst strength, and superior tactile finish has elevated automatic cardboard-to-cardboard and paperboard-to-corrugated laminating machinery into critical capital assets. As consumer electronics, cosmetics, luxury beverages, and e-commerce retail sectors push for rigid, sustainable packaging solutions, paper converters must transition from manual and semi-automatic setups to fully integrated, intelligent lamination systems.
Guangdong Shanhe Industrial Co., Ltd. (trading as SHANHE MACHINE) has spearheaded this technological shift since 1994. Operating from a state-of-the-art 34,175 m² manufacturing facility in Shantou, China, SHANHE integrates servo-motion control, real-time optical tracking, and automated glue metering into its HBK and HBF series automatic cardboard laminating machines. This ensures zero substrate warp, consistent adhesive spreading, and flawless registration even at operational speeds exceeding 9,000 to 10,000 sheets per hour.
Global packaging plants face three primary operational hurdles: escalating labor costs, raw material variability (ranging from lightweight micro-flutes like E, F, and N flutes to heavy greyboard), and strict international safety regulations. Resolving these challenges requires an architectural redesign of post-press machinery to deliver tangible engineering advantages:
Dual-head high-speed vacuum suction feeders equipped with pre-stacking mechanisms eliminate feeder downtime. Optical sensor arrays dynamically correct sheet skew prior to pressing.
Stainless steel metering rollers with automatic wash-up cycles ensure uniform glue film thickness. Prevents board moisture saturation and minimizes drying duration.
Centralized Human-Machine Interface (HMI) with Siemens or Schneider PLC control allows real-time diagnostics, memory storage for recurring jobs, and remote IoT connectivity.
Understanding the strict mechanical, electrical, and operational requirements that govern CE-marked post-press equipment imported into global markets.
Purchasing capital equipment for printing and packaging facilities requires full compliance with regional regulatory standards. A CE Certification Automatic Cardboard Lamination Machine is not merely a marketing badge—it represents comprehensive structural engineering validation against European Directives.
| Regulatory Directive / Standard | Engineering Requirement | SHANHE MACHINE Implementation Detail |
|---|---|---|
| Machinery Directive 2006/42/EC | Comprehensive mechanical risk assessment, physical safety interlocks, and emergency stop circuits. | Dual-circuit safety relays, fully enclosed drive gearboxes, photo-electric perimeter safety curtains, and ergonomic E-stop stations across all operator zones. |
| EN 1010-1 / EN 1010-2 | Specific safety requirements for design and construction of printing and paper converting machines. | Interlocked guard doors preventing nip-point access during roller movement, auto-reversing jam clearance sequences, and low-noise vacuum pump housing (<78 dB). |
| Low Voltage Directive 2014/35/EU | Electrical safety, insulation resistance, thermal protection, and proper grounding of drive cabinets. | IP54 rated control cabinets, CE-compliant Schneider/Siemens contactors, color-coded wiring harnesses, and over-current circuit protection. |
| EMC Directive 2014/30/EU | Protection against electromagnetic interference (EMI) and susceptibility to line noise. | Shielded servo encoder cables, industrial noise filters on variable frequency drives (VFD), and isolated ground planes for micro-controller signals. |
To quantify the information gain for plant managers evaluating machinery options, the table below highlights the operational performance metrics of SHANHE's automatic cardboard laminators compared to conventional market alternatives:
| Performance Parameter | Conventional Laminator | SHANHE Automatic Cardboard Laminator |
|---|---|---|
| Maximum Production Speed | 4,000 – 6,000 sheets/hour | Up to 10,000 sheets/hour |
| Registration System | Manual front/side push lay | Servo-driven differential optical registration |
| Substrate Thickness Range | Limited to 1.5mm cardboard | 0.5mm – 3.0mm Cardboard & A-N Flute Board |
| Glue Application Uniformity | ±8% variance across web | ±2% precision via Anilox Roller technology |
| Changeover Time (Job Swap) | 35 – 50 minutes | 10 – 15 minutes (PLC motorized adjustments) |
How SHANHE cardboard laminating systems adapt to diverse regional packaging demands across North America, Europe, Asia-Pacific, and Latin America.
European and North American brand owners require premium unboxing experiences. SHANHE laminators bond high-definition offset printed sheets to heavy greyboard, producing rigid boxes for consumer electronics, cosmetics, and footwear without board curl or adhesive swelling.
In Southeast Asia and South America, moisture-resistant shipping boxes and fruit display crates demand robust structural integrity. Our machines seamlessly integrate water-resistant cold adhesives with micro-fluted boards to ensure stacking strength under humid transport conditions.
Large-format cardboard floor displays require multi-layer paperboard lamination (cardboard to cardboard up to 3000gsm). SHANHE’s wide-format options (up to 1650mm width) deliver high-tonnage pressing to bond multiple thick layers in a single pass.
Pioneering the future of post-press automation through artificial intelligence, industrial IoT telemetry, and zero-emission adhesives.
Future iterations of SHANHE automatic cardboard laminators integrate high-speed line-scan CCD cameras above the sheet feeder. The system scans graphic registration marks on the top sheet and physically adjusts servo-driven lay guides in real-time, holding registration within ±0.15mm even at maximum speed.
Leveraging secure MQTT and OPC-UA protocols, plant operators can monitor roller temperature, motor torque curves, vacuum pressure levels, and bearing vibration frequencies from centralized control rooms. Potential mechanical anomalies trigger alerts before unscheduled downtime occurs.
As single-use plastics and chemical resins face global bans, SHANHE is refining heating and pumping mechanisms to support 100% bio-based starch adhesives and water-dispersible PVA formulas without reducing production speed or compromising bond strength.
Eliminating post-lamination manual labor, integrated flip-flop stacking units automatically flip sheet bundles at designated intervals (e.g., 25/50 sheets) to neutralize inherent material tension, delivering flat, perfectly aligned stacks directly to automatic die-cutting lines.
Expert answers addressing machinery selection, CE compliance validation, installation logistics, and warranty terms for international buyers.

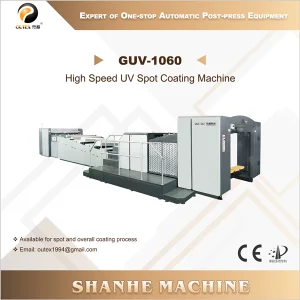

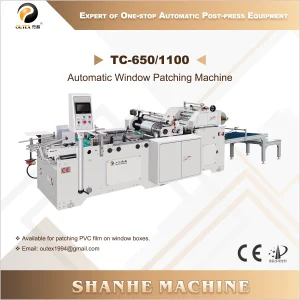

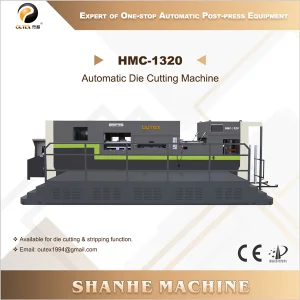

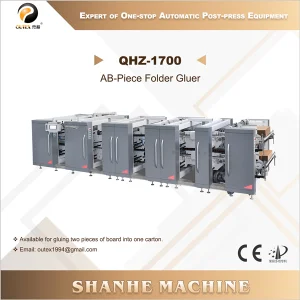

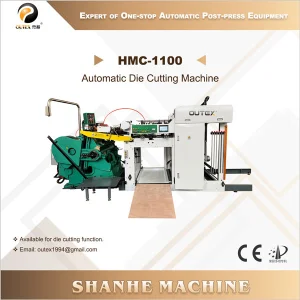

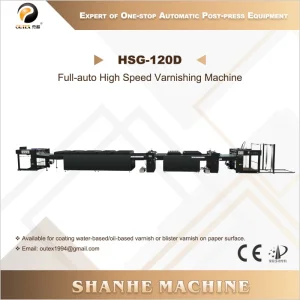

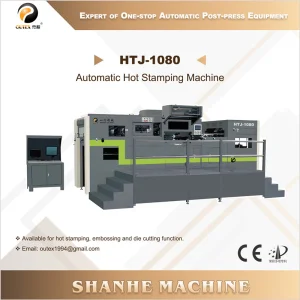

Browse additional high-performance die-cutters, folder gluers, and specialized printing finishing machinery from SHANHE MACHINE.
